日本大同DAIDO轴套K5B2525无油滑动轴承内径25mm外径28mm厚度25mm

日本大同DAIDO轴套K5B2525无油滑动轴承内径25mm外径28mm厚度25mm

  • 型号：
  • K5B2525
  • 品牌：
  • DAIDO轴承
  • 系列：
  • 内径d：
  • 25mm mm
  • 外径D：
  • 28mm mm
  • 厚度B：
  • 25mm mm
日本大同DAIDO轴套K5B2525无油滑动轴承内径25mm外径28mm厚度25mm参数

参数信息

品牌
大同DAIDO
材质
锡基合金
颜色分类
浅灰色
承载机理
固体摩擦
润滑剂类型
无润滑
附加功能
高温
轴承载荷方向
径向止推轴承



图文详情

品牌 大同DAIDO 型号 轴套K5B2525 加工定制 是
是否标准件 标准件 样品或现货 现货 是否进口 进口
类型 钢球 用途 滑动轴承 材质 锡基合金
尺寸 轴套K5B2525



日本大同DAIDO轴套K5B2525无油轴承内径25mm外径28mm厚度25mm


日本大同DAIDO轴套K5B2525无油轴承内径25mm外径28mm厚度25mm

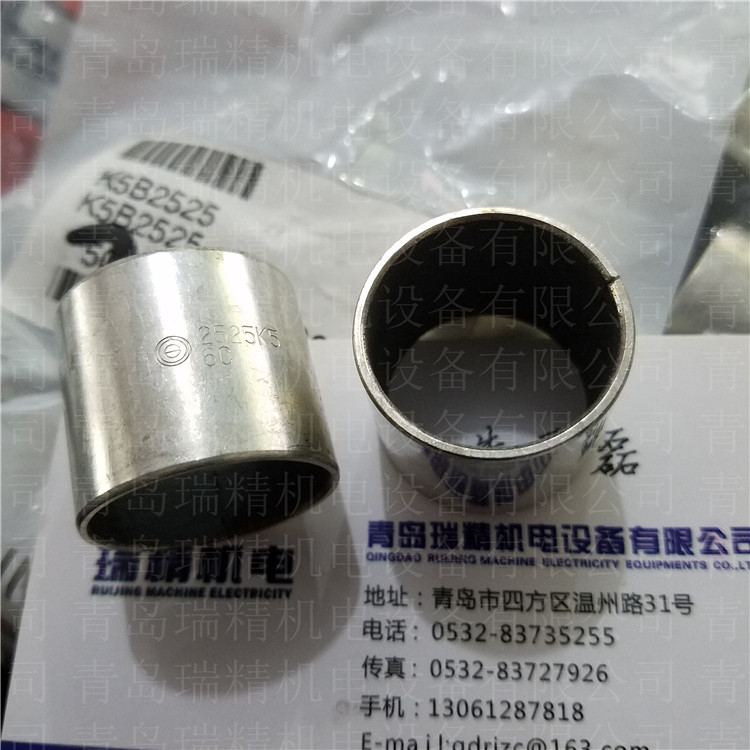

  大同DAIDO轴套无油轴承K5B2525

大同DAIDO轴套无油轴承K5B2525 (2)

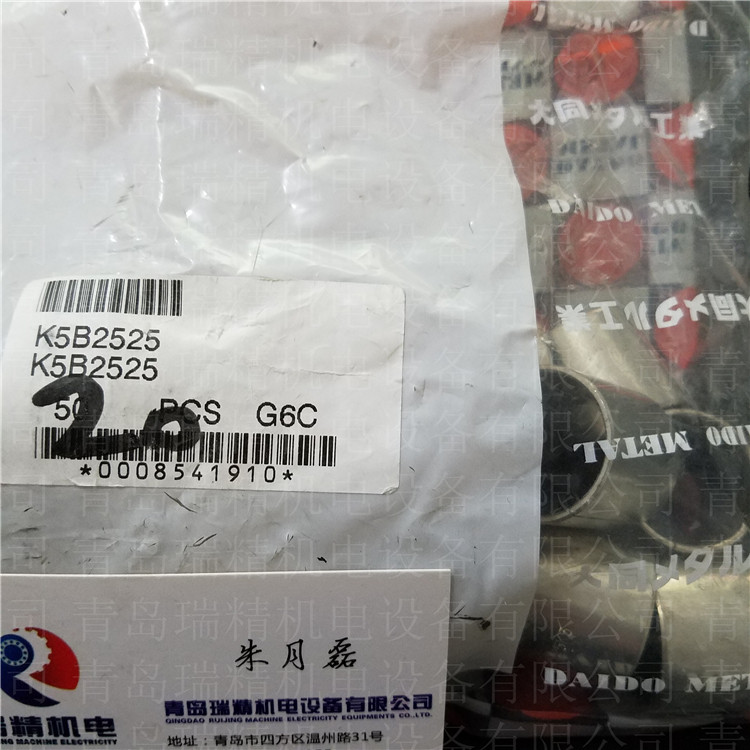

大同DAIDO轴套无油轴承K5B2525 (3)

大同DAIDO轴套无油轴承K5B2525 (4)

型式 ブシュ寸法
内径
(mm)		 外径 肉厚 長さ
(mm) 公差 (mm) 公差 (mm) 公差
K5B0303 3 5 +0.047/+0.017 1.0 0/-0.025 3 0/-0.3
K5B0304 3 5 +0.047/+0.017 1.0 0/-0.025 4 0/-0.3
K5B0305 3 5 +0.047/+0.017 1.0 0/-0.025 5 0/-0.3
K5B0306 3 5 +0.047/+0.017 1.0 0/-0.025 6 0/-0.3
K5B0403 4 6 +0.047/+0.017 1.0 0/-0.025 3 0/-0.3
K5B0404 4 6 +0.047/+0.017 1.0 0/-0.025 4 0/-0.3
K5B0405 4 6 +0.047/+0.017 1.0 0/-0.025 5 0/-0.3
K5B0406 4 6 +0.047/+0.017 1.0 0/-0.025 6 0/-0.3
K5B0408 4 6 +0.047/+0.017 1.0 0/-0.025 8 0/-0.3
K5B0503 5 7 +0.053/+0.023 1.0 0/-0.025 3 0/-0.3
K5B0504 5 7 +0.053/+0.023 1.0 0/-0.025 4 0/-0.3
K5B0505 5 7 +0.053/+0.023 1.0 0/-0.025 5 0/-0.3
K5B0506 5 7 +0.053/+0.023 1.0 0/-0.025 6 0/-0.3
K5B0508 5 7 +0.053/+0.023 1.0 0/-0.025 8 0/-0.3
K5B0603 6 8 +0.053/+0.023 1.0 0/-0.025 3 0/-0.3
K5B0604 6 8 +0.053/+0.023 1.0 0/-0.025 4 0/-0.3
K5B0605 6 8 +0.053/+0.023 1.0 0/-0.025 5 0/-0.3
K5B0606 6 8 +0.053/+0.023 1.0 0/-0.025 6 0/-0.3
K5B0607 6 8 +0.053/+0.023 1.0 0/-0.025 7 0/-0.3
K5B0608 6 8 +0.053/+0.023 1.0 0/-0.025 8 0/-0.3
K5B0610 6 8 +0.053/+0.023 1.0 0/-0.025 10 0/-0.3
K5B0612 6 8 +0.053/+0.023 1.0 0/-0.025 12 0/-0.3
K5B0705 7 9 +0.053/+0.023 1.0 0/-0.025 5 0/-0.3
K5B0706 7 9 +0.053/+0.023 1.0 0/-0.025 6 0/-0.3
K5B0707 7 9 +0.053/+0.023 1.0 0/-0.025 7 0/-0.3
K5B0708 7 9 +0.053/+0.023 1.0 0/-0.025 8 0/-0.3
K5B0710 7 9 +0.053/+0.023 1.0 0/-0.025 10 0/-0.3
K5B0712 7 9 +0.053/+0.023 1.0 0/-0.025 12 0/-0.3
K5B0805 8 10 +0.055/+0.025 1.0 0/-0.025 5 0/-0.3
K5B0806 8 10 +0.055/+0.025 1.0 0/-0.025 6 0/-0.3
K5B0807 8 10 +0.055/+0.025 1.0 0/-0.025 7 0/-0.3
K5B0808 8 10 +0.055/+0.025 1.0 0/-0.025 8 0/-0.3
K5B0810 8 10 +0.055/+0.025 1.0 0/-0.025 10 0/-0.3
K5B0812 8 10 +0.055/+0.025 1.0 0/-0.025 12 0/-0.3
K5B0815 8 10 +0.055/+0.025 1.0 0/-0.025 15 0/-0.3
K5B0906 9 11 +0.060/+0.030 1.0 0/-0.025 6 0/-0.3
K5B0910 9 11 +0.060/+0.030 1.0 0/-0.025 10 0/-0.3
K5B1006 10 12 +0.060/+0.030 1.0 0/-0.025 6 0/-0.3
K5B1007 10 12 +0.060/+0.030 1.0 0/-0.025 7 0/-0.3
K5B1008 10 12 +0.060/+0.030 1.0 0/-0.025 8 0/-0.3
K5B1010 10 12 +0.060/+0.030 1.0 0/-0.025 10 0/-0.3
K5B1012 10 12 +0.060/+0.030 1.0 0/-0.025 12 0/-0.3
K5B1015 10 12 +0.060/+0.030 1.0 0/-0.025 15 0/-0.3
K5B1020 10 12 +0.060/+0.030 1.0 0/-0.025 20 0/-0.3
K5B1206 12 14 +0.060/+0.030 1.0 0/-0.025 6 0/-0.3
K5B1208 12 14 +0.060/+0.030 1.0 0/-0.025 8 0/-0.3
K5B1210 12 14 +0.060/+0.030 1.0 0/-0.025 10 0/-0.3
K5B1212 12 14 +0.060/+0.030 1.0 0/-0.025 12 0/-0.3
K5B1215 12 14 +0.060/+0.030 1.0 0/-0.025 15 0/-0.3
K5B1220 12 14 +0.060/+0.030 1.0 0/-0.025 20 0/-0.3
K5B1308 13 15 +0.063/+0.033 1.0 0/-0.025 8 0/-0.3
K5B1310 13 15 +0.063/+0.033 1.0 0/-0.025 10 0/-0.3
K5B1312 13 15 +0.063/+0.033 1.0 0/-0.025 12 0/-0.3
K5B1315 13 15 +0.063/+0.033 1.0 0/-0.025 15 0/-0.3
K5B1320 13 15 +0.063/+0.033 1.0 0/-0.025 20 0/-0.3
K5B1408 14 16 +0.063/+0.033 1.0 0/-0.025 8 0/-0.3
K5B1410 14 16 +0.063/+0.033 1.0 0/-0.025 10 0/-0.3
K5B1412 14 16 +0.063/+0.033 1.0 0/-0.025 12 0/-0.3
K5B1415 14 16 +0.063/+0.033 1.0 0/-0.025 15 0/-0.3
K5B1420 14 16 +0.063/+0.033 1.0 0/-0.025 20 0/-0.3
K5B1508 15 17 +0.073/+0.038 1.0 0/-0.025 8 0/-0.3
K5B1510 15 17 +0.073/+0.038 1.0 0/-0.025 10 0/-0.3
K5B1512 15 17 +0.073/+0.038 1.0 0/-0.025 12 0/-0.3
K5B1515 15 17 +0.073/+0.038 1.0 0/-0.025 15 0/-0.3
K5B1520 15 17 +0.073/+0.038 1.0 0/-0.025 20 0/-0.3
K5B1525 15 17 +0.073/+0.038 1.0 0/-0.025 25 0/-0.3
K5B1610 16 18 +0.073/+0.038 1.0 0/-0.025 10 0/-0.3
K5B1612 16 18 +0.073/+0.038 1.0 0/-0.025 12 0/-0.3
K5B1615 16 18 +0.073/+0.038 1.0 0/-0.025 15 0/-0.3
K5B1620 16 18 +0.073/+0.038 1.0 0/-0.025 20 0/-0.3
K5B1625 16 18 +0.073/+0.038 1.0 0/-0.025 25 0/-0.3
K5B1710 17 19 +0.081/+0.046 1.0 0/-0.025 10 0/-0.3
K5B1715 17 19 +0.081/+0.046 1.0 0/-0.025 15 0/-0.3
K5B1810 18 20 +0.081/+0.046 1.0 0/-0.025 10 0/-0.3
K5B1812 18 20 +0.081/+0.046 1.0 0/-0.025 12 0/-0.3
K5B1815 18 20 +0.081/+0.046 1.0 0/-0.025 15 0/-0.3
K5B1820 18 20 +0.081/+0.046 1.0 0/-0.025 20 0/-0.3
K5B1825 18 20 +0.081/+0.046 1.0 0/-0.025 25 0/-0.3
K5B1830 18 20 +0.081/+0.046 1.0 0/-0.025 30 0/-0.3
K5B1910 19 22 +0.081/+0.046 1.5 0/-0.030 10 0/-0.3
K5B1915 19 22 +0.081/+0.046 1.5 0/-0.030 15 0/-0.3
K5B1920 19 22 +0.081/+0.046 1.5 0/-0.030 20 0/-0.3
K5B2010 20 23 +0.081/+0.046 1.5 0/-0.030 10 0/-0.3
K5B2012 20 23 +0.081/+0.046 1.5 0/-0.030 12 0/-0.3
K5B2015 20 23 +0.081/+0.046 1.5 0/-0.030 15 0/-0.3
K5B2020 20 23 +0.081/+0.046 1.5 0/-0.030 20 0/-0.3
K5B2025 20 23 +0.081/+0.046 1.5 0/-0.030 25 0/-0.3
K5B2030 20 23 +0.081/+0.046 1.5 0/-0.030 30 0/-0.3
K5B2210 22 25 +0.086/+0.051 1.5 0/-0.030 10 0/-0.3
K5B2212 22 25 +0.086/+0.051 1.5 0/-0.030 12 0/-0.3
K5B2215 22 25 +0.086/+0.051 1.5 0/-0.030 15 0/-0.3
K5B2220 22 25 +0.086/+0.051 1.5 0/-0.030 20 0/-0.3
K5B2225 22 25 +0.086/+0.051 1.5 0/-0.030 25 0/-0.3
K5B2230 22 25 +0.086/+0.051 1.5 0/-0.030 30 0/-0.3
K5B2415 24 27 +0.086/+0.051 1.5 0/-0.030 15 0/-0.3
K5B2420 24 27 +0.086/+0.051 1.5 0/-0.030 20 0/-0.3
K5B2425 24 27 +0.086/+0.051 1.5 0/-0.030 25 0/-0.3
K5B2430 24 27 +0.086/+0.051 1.5 0/-0.030 30 0/-0.3
K5B2510 25 28 +0.093/+0.056 1.5 0/-0.030 10 0/-0.3
K5B2512 25 28 +0.093/+0.056 1.5 0/-0.030 12 0/-0.3
K5B2515 25 28 +0.093/+0.056 1.5 0/-0.030 15 0/-0.3
K5B2520 25 28 +0.093/+0.056 1.5 0/-0.030 20 0/-0.3
K5B2525 25 28 +0.093/+0.056 1.5 0/-0.030 25 0/-0.3
K5B2530 25 28 +0.093/+0.056 1.5 0/-0.030 30 0/-0.3
K5B2535 25 28 +0.093/+0.056 1.5 0/-0.030 35 0/-0.3
K5B2615 26 30 +0.115/+0.075 2.0 0/-0.030 15 0/-0.3
K5B2620 26 30 +0.115/+0.075 2.0 0/-0.030 20 0/-0.3
K5B2625 26 30 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B2630 26 30 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B2812 28 32 +0.115/+0.075 2.0 0/-0.030 12 0/-0.3
K5B2815 28 32 +0.115/+0.075 2.0 0/-0.030 15 0/-0.3
K5B2820 28 32 +0.115/+0.075 2.0 0/-0.030 20 0/-0.3
K5B2825 28 32 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B2830 28 32 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B3012 30 34 +0.115/+0.075 2.0 0/-0.030 12 0/-0.3
K5B3015 30 34 +0.115/+0.075 2.0 0/-0.030 15 0/-0.3
K5B3020 30 34 +0.115/+0.075 2.0 0/-0.030 20 0/-0.3
K5B3025 30 34 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B3030 30 34 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B3035 30 34 +0.115/+0.075 2.0 0/-0.030 35 0/-0.3
K5B3040 30 34 +0.115/+0.075 2.0 0/-0.030 40 0/-0.3
K5B3050 30 34 +0.115/+0.075 2.0 0/-0.030 50 0/-0.3
K5B3115 31 35 +0.115/+0.075 2.0 0/-0.030 15 0/-0.3
K5B3125 31 35 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B3130 31 35 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B3140 31 35 +0.115/+0.075 2.0 0/-0.030 40 0/-0.3
K5B3215 32 36 +0.115/+0.075 2.0 0/-0.030 15 0/-0.3
K5B3220 32 36 +0.115/+0.075 2.0 0/-0.030 20 0/-0.3
K5B3225 32 36 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B3230 32 36 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B3240 32 36 +0.115/+0.075 2.0 0/-0.030 40 0/-0.3
K5B3512 35 39 +0.115/+0.075 2.0 0/-0.030 12 0/-0.3
K5B3515 35 39 +0.115/+0.075 2.0 0/-0.030 15 0/-0.3
K5B3520 35 39 +0.115/+0.075 2.0 0/-0.030 20 0/-0.3
K5B3525 35 39 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B3530 35 39 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B3535 35 39 +0.115/+0.075 2.0 0/-0.030 35 0/-0.3
K5B3540 35 39 +0.115/+0.075 2.0 0/-0.030 40 0/-0.3
K5B3550 35 39 +0.115/+0.075 2.0 0/-0.030 50 0/-0.3
K5B3820 38 42 +0.115/+0.075 2.0 0/-0.030 20 0/-0.3
K5B3825 38 42 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B3830 38 42 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B3835 38 42 +0.115/+0.075 2.0 0/-0.030 35 0/-0.3
K5B3840 38 42 +0.115/+0.075 2.0 0/-0.030 40 0/-0.3
K5B4012 40 44 +0.115/+0.075 2.0 0/-0.030 12 0/-0.3
K5B4015 40 44 +0.115/+0.075 2.0 0/-0.030 15 0/-0.3
K5B4020 40 44 +0.115/+0.075 2.0 0/-0.030 20 0/-0.3
K5B4025 40 44 +0.115/+0.075 2.0 0/-0.030 25 0/-0.3
K5B4030 40 44 +0.115/+0.075 2.0 0/-0.030 30 0/-0.3
K5B4035 40 44 +0.115/+0.075 2.0 0/-0.030 35 0/-0.3
K5B4040 40 44 +0.115/+0.075 2.0 0/-0.030 40 0/-0.3
K5B4050 40 44 +0.115/+0.075 2.0 0/-0.030 50 0/-0.3
K5B4520 45 50 +0.115/+0.075 2.5 0/-0.040 20 0/-0.3
K5B4525 45 50 +0.115/+0.075 2.5 0/-0.040 25 0/-0.3
K5B4530 45 50 +0.115/+0.075 2.5 0/-0.040 30 0/-0.3
K5B4535 45 50 +0.115/+0.075 2.5 0/-0.040 35 0/-0.3
K5B4540 45 50 +0.115/+0.075 2.5 0/-0.040 40 0/-0.3
K5B4550 45 50 +0.115/+0.075 2.5 0/-0.040 50 0/-0.3
K5B5020 50 55 +0.145/+0.095 2.5 0/-0.040 20 0/-0.3
K5B5025 50 55 +0.145/+0.095 2.5 0/-0.040 25 0/-0.3
K5B5030 50 55 +0.145/+0.095 2.5 0/-0.040 30 0/-0.3
K5B5035 50 55 +0.145/+0.095 2.5 0/-0.040 35 0/-0.3
K5B5040 50 55 +0.145/+0.095 2.5 0/-0.040 40 0/-0.3
K5B5050 50 55 +0.145/+0.095 2.5 0/-0.040 50 0/-0.3
K5B5060 50 55 +0.145/+0.095 2.5 0/-0.040 60 0/-0.3
K5B5525 55 60 +0.145/+0.095 2.5 0/-0.040 25 0/-0.3
K5B5530 55 60 +0.145/+0.095 2.5 0/-0.040 30 0/-0.3
K5B5535 55 60 +0.145/+0.095 2.5 0/-0.040 35 0/-0.3
K5B5540 55 60 +0.145/+0.095 2.5 0/-0.040 40 0/-0.3
K5B5550 55 60 +0.145/+0.095 2.5 0/-0.040 50 0/-0.3
K5B5560 55 60 +0.145/+0.095 2.5 0/-0.040 60 0/-0.3

DAIDOK5B2525轴承我司目前有部分库存，您可致电我司咨询销售人员关于轴承K5B2525的图纸、轴承K5B2525价格或同型号其他品牌替换等资料！我司与DAIDO厂家常年批量订购K5B2525，以保证K5B2525轴承质量正宗，价格最优。订购原装DAIDO K5B2525轴承请拨打：0532-83735255、13061287818
热销轴承型号：上一篇：进口IKO滚针轴承RNAFW253526内外圈无挡边内径25mm外径35mm厚26mm INA 06X62轴承 INA GE160FO-2RS轴承 KOYO 23096RHA轴承 IKO NAXI1223轴承 NACHI NUP2330轴承 NSK 5212轴承 NTN NJ2309E轴承 NACHI 240/600EK30轴承 NACHI 5209A-2NS轴承 下一篇：进口SKF调心球轴承2204E-2RS1TN9内径20mm外径47mm厚度18mm
日本大同DAIDO轴套K5B2525无油滑动轴承内径25mm外径28mm厚度25mm轴承图纸
