| 品牌 | SKF | 型号 | NN3013KTN/SPW33 | 旧型号 | NN3013KTN/SPW33 |
| 内径 | 65（mm） | 外径 | 100（mm） | 厚度 | 26（mm） |
| 重量 | 1（kg） | 保持架及其材料 | TH玻璃纤维增强酚醛树脂 | 使用特性 | 高速 |
| 用途 | 通用 | 滚动体列数 | 双列 | 滚道类型 | 直线滚道 |
| 样品或现货 | 现货 | 轴承材质 | 高温轴承钢 | 滚动体类型 | 圆柱滚子 |
| 角度 | 15度 | 密封盖 | 无密封 | 滚动体 | 钢球 |
| 类型 | 圆柱滚子轴承 |

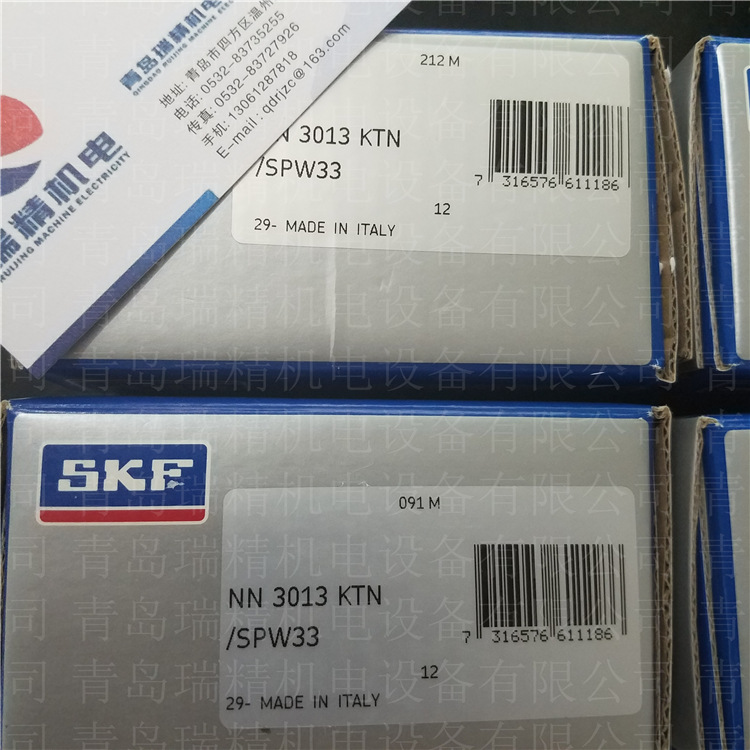

SKF精密轴承NN3013KTN/SPW33青岛瑞精机电现货供应
SKF精密轴承NN3013KTN/SPW33轴承尺寸|轴承规格参数|轴承报价
内径：65mm
外径：100mm
宽度：26mm
型号：SKF精密轴承NN3013KTN/SPW33
类型：轴承
品牌：SKF精密轴承NN3013KTN/SPW33
备注：SKF精密轴承NN3013KTN/SPW33
| SKF Bearing Model | d (mm) | D (mm) | B (mm) | |||
| NN3005M | NN3005TN/SP | NN 3005 KTN/SP | NN3005KTN/SPW33 | 25 | 47 | 16 |
| NN3006M | NN3006TN/SP | NN 3006 KTN/SP | NN3006KTN/SPW33 | 30 | 55 | 19 |
| NN3007M | NN3007TN/SP | NN 3007 KTN/SP | NN3007KTN/SPW33 | 35 | 62 | 20 |
| NN3008M | NN3008TN/SP | NN 3008 KTN/SP | NN3008KTN/SPW33 | 40 | 68 | 21 |
| NN3009M | NN3009TN/SP | NN 3009 KTN/SP | NN3009KTN/SPW33 | 45 | 75 | 23 |
| NN3010M | NN3010TN/SP | NN 3010 KTN/SP | NN3010KTN/SPW33 | 50 | 80 | 23 |
| NN3011M | NN3011TN/SP | NN 3011 KTN/SP | NN3011KTN/SPW33 | 55 | 90 | 26 |
| NN3012M | NN3012TN/SP | NN 3012 KTN/SP | NN3012KTN/SPW33 | 60 | 95 | 26 |
| NN3013M | NN3013TN/SP | NN 3013 KTN/SP | NN3013KTN/SPW33 | 65 | 100 | 26 |
| NN3014M | NN3014TN/SP | NN 3014 KTN/SP | NN3014KTN/SPW33 | 70 | 110 | 30 |
| NN3015M | NN3015TN/SP | NN 3015 KTN/SP | NN3015KTN/SPW33 | 75 | 115 | 30 |
| NN3016M | NN3016TN/SP | NN 3016 KTN/SP | NN3016KTN/SPW33 | 80 | 125 | 34 |
| NN3017M | NN3017TN/SP | NN 3017 KTN/SP | NN3017KTN/SPW33 | 85 | 130 | 34 |
| NN3018M | NN3018TN/SP | NN 3018 KTN/SP | NN3018KTN/SPW33 | 90 | 140 | 37 |
| NN3019M | NN3019TN/SP | NN 3019 KTN/SP | NN3019KTN/SPW33 | 95 | 145 | 37 |
| NN3020M | NN3020TN/SP | NN 3020 KTN/SP | NN3020KTN/SPW33 | 100 | 150 | 37 |
| NN3021M | NN3021TN/SP | NN 3021 KTN/SP | NN3021KTN/SPW33 | 105 | 160 | 41 |
| NN3022M | NN3022TN/SP | NN 3022 KTN/SP | NN3022KTN/SPW33 | 110 | 170 | 45 |
| NN3024M | NN3024TN/SP | NN 3024 KTN/SP | NN3024KTN/SPW33 | 120 | 180 | 46 |
| NN3026M | NN3026TN/SP | NN 3026 KTN/SP | NN3026KTN/SPW33 | 130 | 200 | 52 |
| NN3028M | NN3028TN/SP | NN 3028 KTN/SP | NN3028KTN/SPW33 | 140 | 210 | 53 |
| NN3030M | NN3030TN/SP | NN 3030 KTN/SP | NN3030KTN/SPW33 | 150 | 225 | 56 |
| NN3032M | NN3032TN/SP | NN 3032 KTN/SP | NN3032KTN/SPW33 | 160 | 240 | 60 |
| NN3034M | NN3034TN/SP | NN 3034 KTN/SP | NN3034KTN/SPW33 | 170 | 260 | 67 |
| NN3036M | NN3036TN/SP | NN 3036 KTN/SP | NN3036KTN/SPW33 | 180 | 280 | 74 |
| NN3038M | NN3038TN/SP | NN 3038 KTN/SP | NN3038KTN/SPW33 | 190 | 290 | 75 |
| NN3040M | NN3040TN/SP | NN 3040 KTN/SP | NN3040KTN/SPW33 | 200 | 310 | 82 |
| NN3044M | NN3044TN/SP | NN 3044 KTN/SP | NN3044KTN/SPW33 | 220 | 340 | 90 |
| NN3048M | NN3048TN/SP | NN 3048 KTN/SP | NN3048KTN/SPW33 | 240 | 360 | 92 |
| NN3052M | NN3052TN/SP | NN 3052 KTN/SP | NN3052KTN/SPW33 | 260 | 400 | 104 |
| NN3056M | NN3056TN/SP | NN 3056 KTN/SP | NN3056KTN/SPW33 | 280 | 420 | 106 |
| NN3060M | NN3060TN/SP | NN 3060 KTN/SP | NN3060KTN/SPW33 | 300 | 460 | 118 |
| NN3064M | NN3064TN/SP | NN 3064 KTN/SP | NN3064KTN/SPW33 | 320 | 480 | 121 |
| NN3068M | NN3068TN/SP | NN 3068 KTN/SP | NN3068KTN/SPW33 | 340 | 520 | 133 |
| NN3072M | NN3072TN/SP | NN 3072 KTN/SP | NN3072KTN/SPW33 | 360 | 540 | 134 |
| NN3076M | NN3076TN/SP | NN 3076 KTN/SP | NN3076KTN/SPW33 | 380 | 560 | 135 |
| NN3080M | NN3080TN/SP | NN 3080 KTN/SP | NN3080KTN/SPW33 | 400 | 600 | 148 |
| NN3084M | NN3084TN/SP | NN 3084 KTN/SP | NN3084KTN/SPW33 | 420 | 620 | 150 |
| NN3088M | NN3088TN/SP | NN 3088 KTN/SP | NN3088KTN/SPW33 | 440 | 650 | 157 |
| NN3092M | NN3092TN/SP | NN 3092 KTN/SP | NN3092KTN/SPW33 | 460 | 680 | 163 |
| NN 3096M | NN3096TN/SP | NN 3096 KTN/SP | NN3096KTN/SPW33 | 480 | 700 | 165 |
| NN30/500M | NN30/500TN/SP | NN 30/500 KTN/SP | NN30/500KTN/SPW33 | 500 | 720 | 167 |
