| 订货号 | LBBR30-2LS | 品牌 | SKF/斯凯孚 | 型号 | LBBR30-2LS |
| 外径 | 30（mm） | 内径 | 40（mm） | 厚度 | 50（mm） |
| 用途 | 通用 | 重量 | 0.1（kg） | 润滑剂 | 油润滑 |
| 油润滑方法 | 滴油润滑 | 主要下游平台 | 速卖通 | 主要销售地区 | 中东 |
| 有可授权的自有品牌 | 否 | 是否跨境货源 | 是 | 系列 | LBBR30-2LS |
| 货号 | LBBR30-2LS | 是否标准件 | 标准件 | 尺寸 | 直线球轴承 LBBR30-2LS |
| 材质 | 碳钢 |

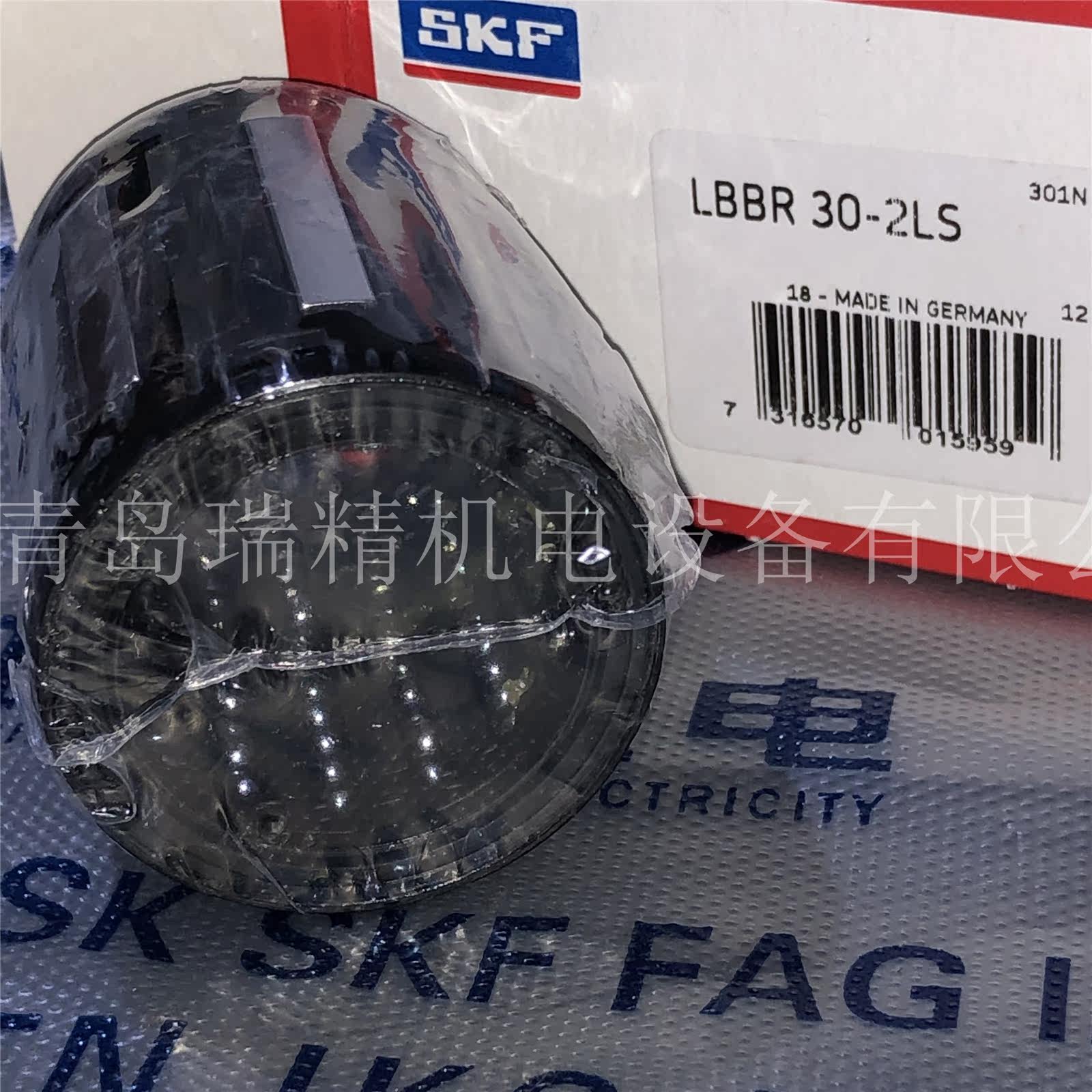

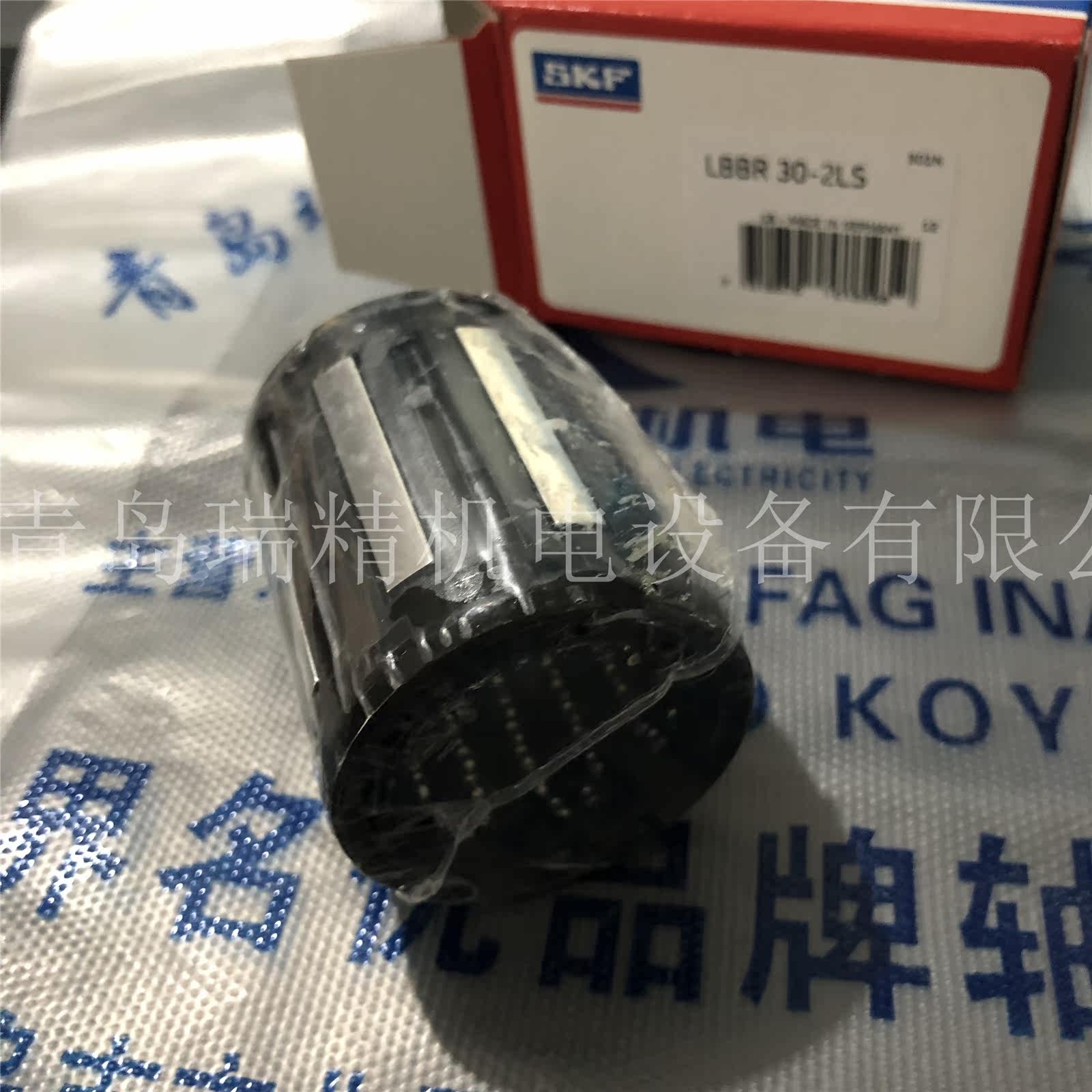

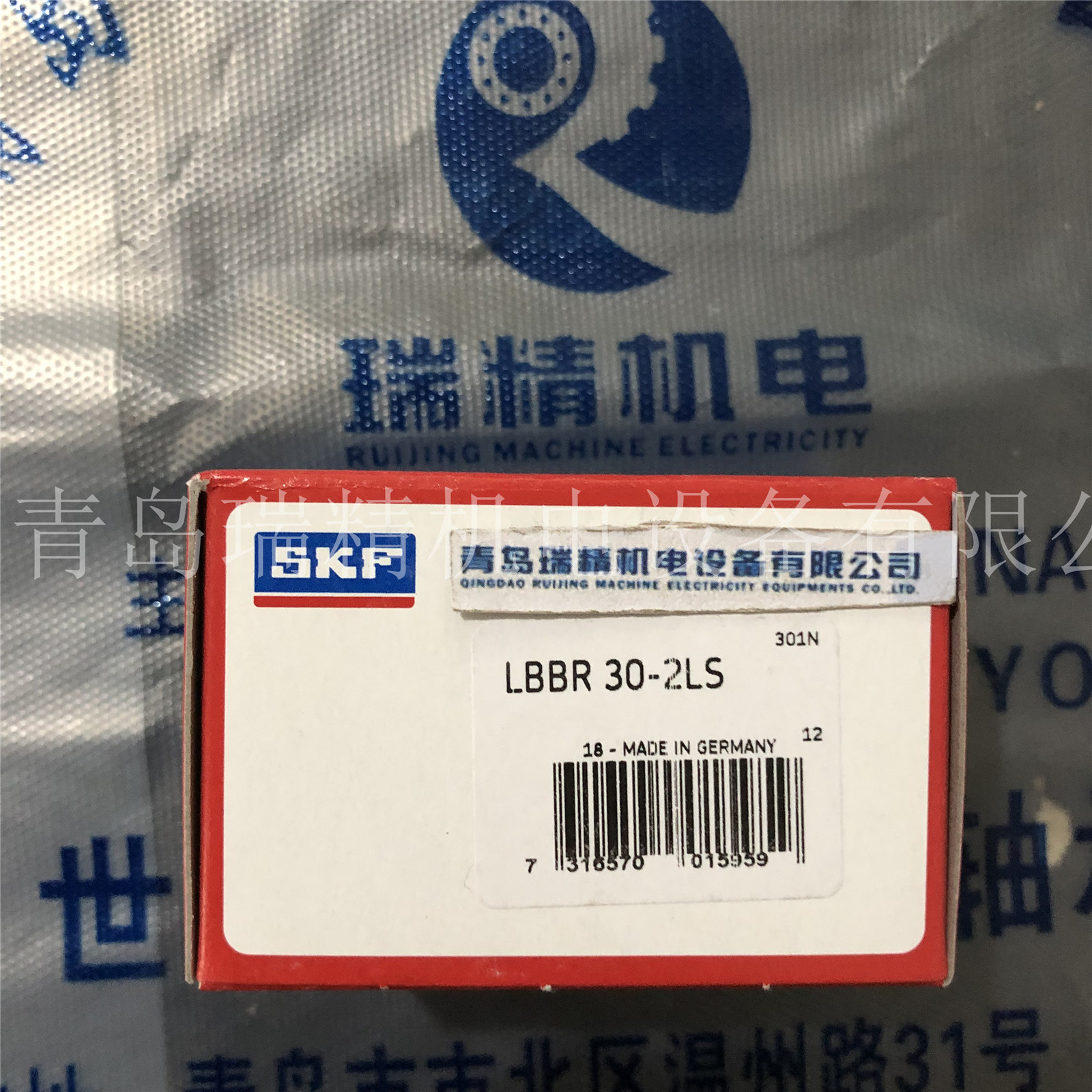

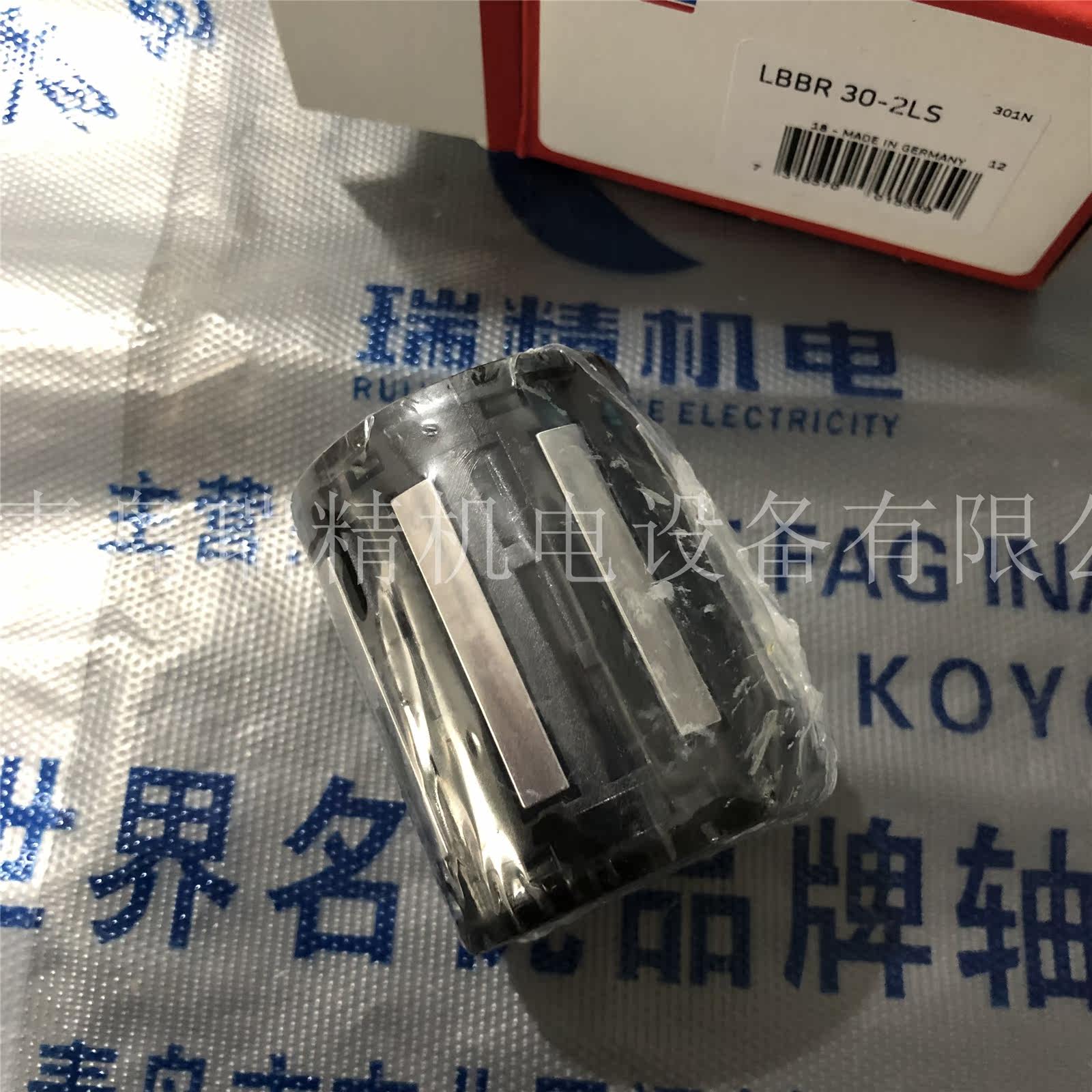

SKF直线轴承 LBBR30-2LS 内径30mm 外径40mm 长度50mm |
|
| 根据 DIN 630 和 DIN 5415 标准的主要尺寸，SKF直线轴承 LBBR30-2LS 内径30mm 外径40mm 长度50mm |
LBCR .. A linear ball bearings
LBCR .. A l inear ball bearings comprise a cage in which the balls are guided, together with the raceway
segments and the seals or shields. By virtue of their exceptionally long track length and the machined
raceway osculation they are able to accommodate heavy loads. LBCR .. A linear ball bearings, with their
optimised raceway segments and position for maximum load carrying capacity, can be mounted in closed
as well as adjustable housings. When these bearings are mounted i n a closed housing, the tolerance of
the inscribed diameter of the ball set and hence the operating clearance is determined by the tolerance
of the housing bore. When mounted in slotted housings the linear guides can be adjusted to the particular
application, to provide either operating clearance or preload. LBCR .. A linear ball bearings must be located
in axial direction.
LBCR .. A linear ball bearings
|
Marking |
Ø d |
Ø D |
width |
|
LBCR 5-2LS |
5 |
12 |
22 |
|
LBCR 8-2LS |
8 |
16 |
25 |
|
LBCR 12-2LS |
12 |
22 |
32 |
|
LBCR 16-2LS |
16 |
26 |
36 |
|
LBCR 20-2LS |
20 |
32 |
45 |
|
LBCR 25-2LS |
25 |
40 |
58 |
|
LBCR 30-2LS |
30 |
47 |
68 |
|
LBCR 40-2LS |
40 |
62 |
80 |
|
LBCR 50-2LS |
50 |
75 |
100 |
|
LBCR 60-2LS |
60 |
90 |
125 |
|
LBCR 80-2LS |
80 |
120 |
165 |
