| 轴径 | 型号 | 重量 | 尺寸 | 基本额定载荷 | 极限转速 | 原有型号 | |||||
| Shaft | Designation | Mass | Dimensions | Basic Load Ratings | Limiting | Original | |||||
| Diameter | d | F | D | B | r | 动 Cr | 静 Cor | Speed | Designation | ||
| Dynamic | Static | ||||||||||
| mm | g | min. | kN | kN | rpm | ||||||
| 55 | NAV 4011 | 1030 | 55 | 69.8 | 90 | 35 | 1.1 | 48.9 | 109.0 | 1300 | 4074111 |
| 60 | NAV 4012 | 1125 | 60 | 74.6 | 95 | 35 | 1.1 | 50.7 | 116.0 | 1100 | 4074112 |
| 65 | NAV 4013 | 1200 | 65 | 80.3 | 100 | 35 | 1.1 | 59.4 | 126.0 | 1000 | 4074113 |
| 70 | NAV 4014 | 1700 | 70 | 88 | 110 | 40 | 1.1 | 72.4 | 155.0 | 950 | 4074114 |
| 75 | NAV 4015 | 1810 | 75 | 92.7 | 115 | 40 | 1.1 | 74.1 | 164.0 | 900 | 4074115 |

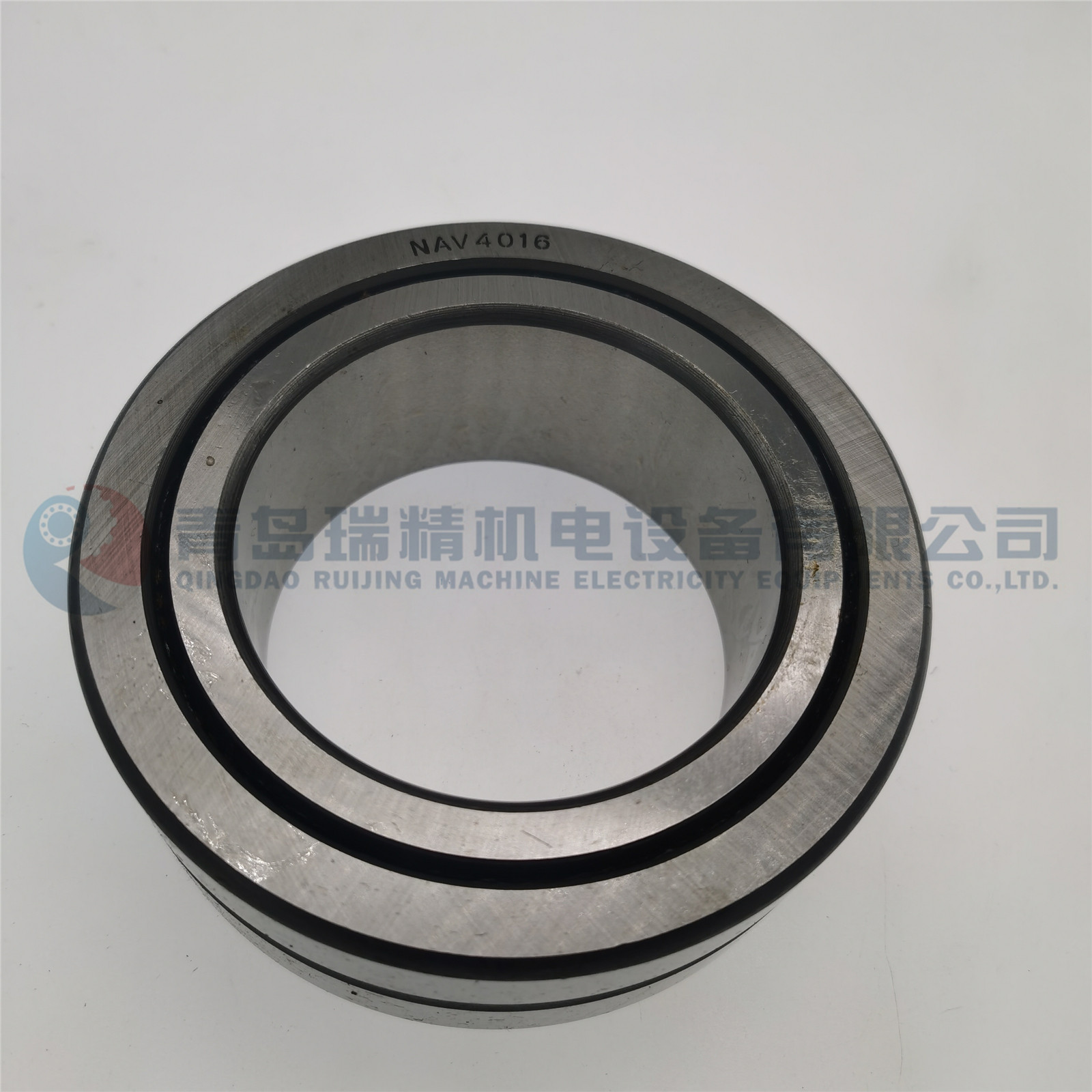

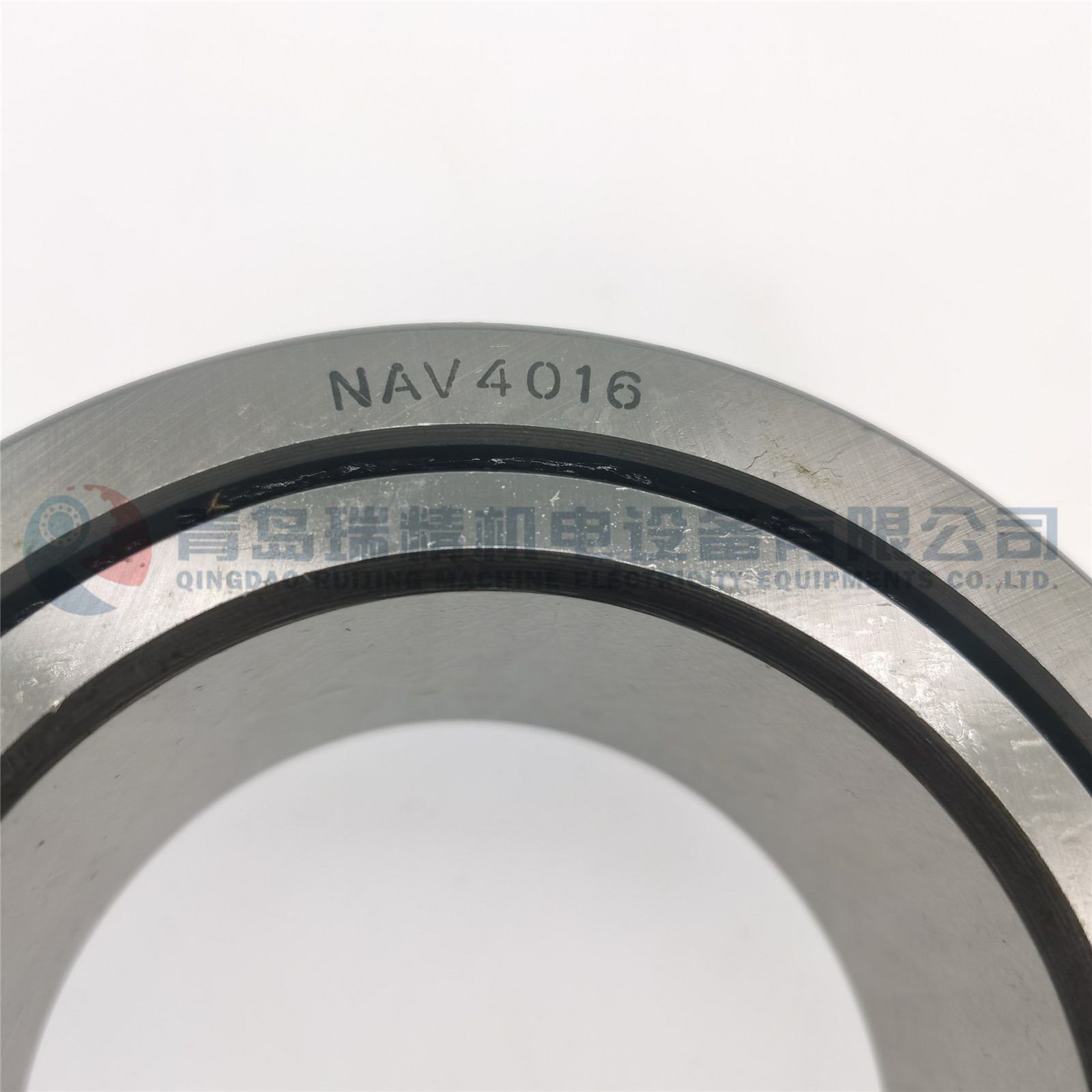

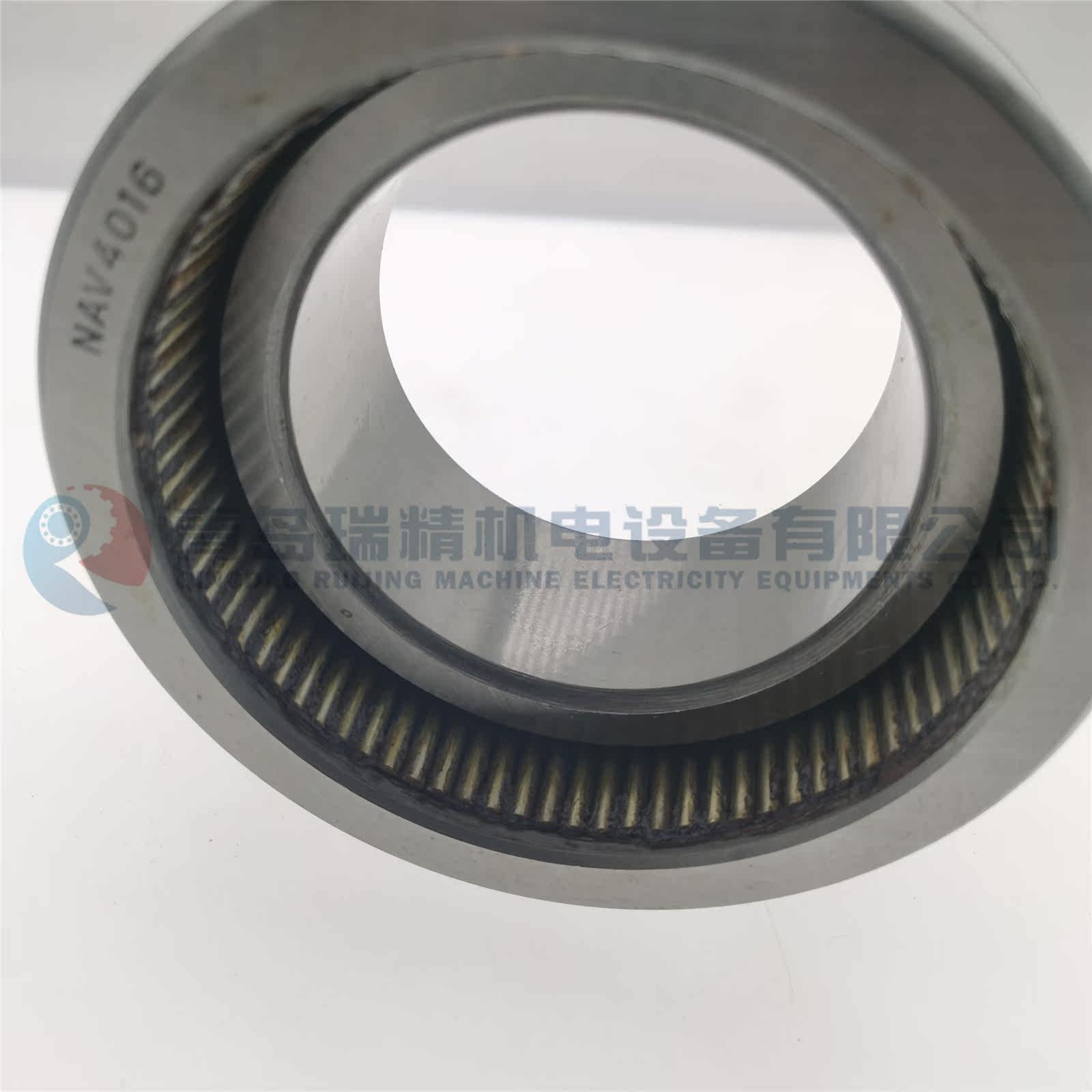

| 80 | NAV 4016 | 2470 | 80 | 100.3 | 125 | 45 | 1.1 | 82.3 | 174.1 | 900 | 4074116 |
| 85 | NAV 4017 | 2580 | 85 | 104.8 | 130 | 45 | 1.1 | —— | —— | 900 | 4074117 |
