Inch series 1600
ITEM d D B rs min Basic Load ratings Weight ≈ (Kg)
Cr Cor
1607 7/16 0.4375 29/32 0.9062 5/16 0.3125 0.015 3.56 1.95 0.016
1614 3/8 0.375 1-1/8 1.1125 3/8 0.375 0.025 3.92 2.25 0.035
1615 7/16 0.4375 1-1/8 1.125 3/8 0.375 0.025 3.92 2.25 0.034
1616 1/2 0.5 1-1/8 1.25 3/8 0.375 0.025 3.92 2.25 0.03
1620 7/16 0.4375 1-3/8 1.275 7/16 0.4375 0.025 5.9 3.5 0.05
1621 1/2 0.5 1-3/8 1.375 7/16 0.4375 0.025 5.9 3.5 0.048
1622 9/16 0.5625 1-3/8 1.375 7/16 0.4375 0.025 5.9 3.5 0.046
1623 5/8 0.625 1-3/8 1.375 7/16 0.4375 0.025 5.9 3.5 0.04
1628 5/8 0.625 1-5/8 1.625 1/2 0.5 0.025 7.25 4.45 0.072
1630 3/4 0.75 1-5/8 1.625 1/2 0.5 0.025 7.25 4.45 0.065
1633 5/8 0.625 1-3/4 1.75 1/2 0.5 0.025 7.25 4.45 0.092
1635 3/4 0.75 1-3/4 1.75 1/2 0.5 0.035 7.25 4.45 0.085
1638 3/4 0.75 2 2 9/16 0.5625 0.035 10.8 6.95 0.12
1640 7/8 0.875 2 2 9/16 0.5625 0.035 10.8 6.95 0.112
1641 1 1 2-1/2 2 9/16 0.5625 0.035 10.8 6.95 0.1
1652 1-1/8 1.125 2-1/2 2.5 5/8 0.625 0.035 12.8 8.4 0.21
1654 1-1/2 1.25 2-1/2 2.5 5/8 0.625 0.035 12.8 8.4
Inch RLS series
SKF RHP FAG RHP FAG RHP FAG DIMENTIONAL TABLE
RLS/ALS BALL BRGS BALL BRGS ANG. ANG. ROLLER ROLLER BORE O.D WIDTH
CONT. CONT.
CRL 4 LJ1/2 LS5 LJT1/2 LS5AC LRJ1/2 RLS5 12.7 33.338 9.53
CRL 5 LJ5/8 LS7 LJT5/8 LS7AC LRJ5/8 RLS7 15.875 39.688 11.11
CRL 6 LJ3/4 LS8 LJT3/4 LS8AC LRJ3/4 RLS8 19.05 47.625 14.29

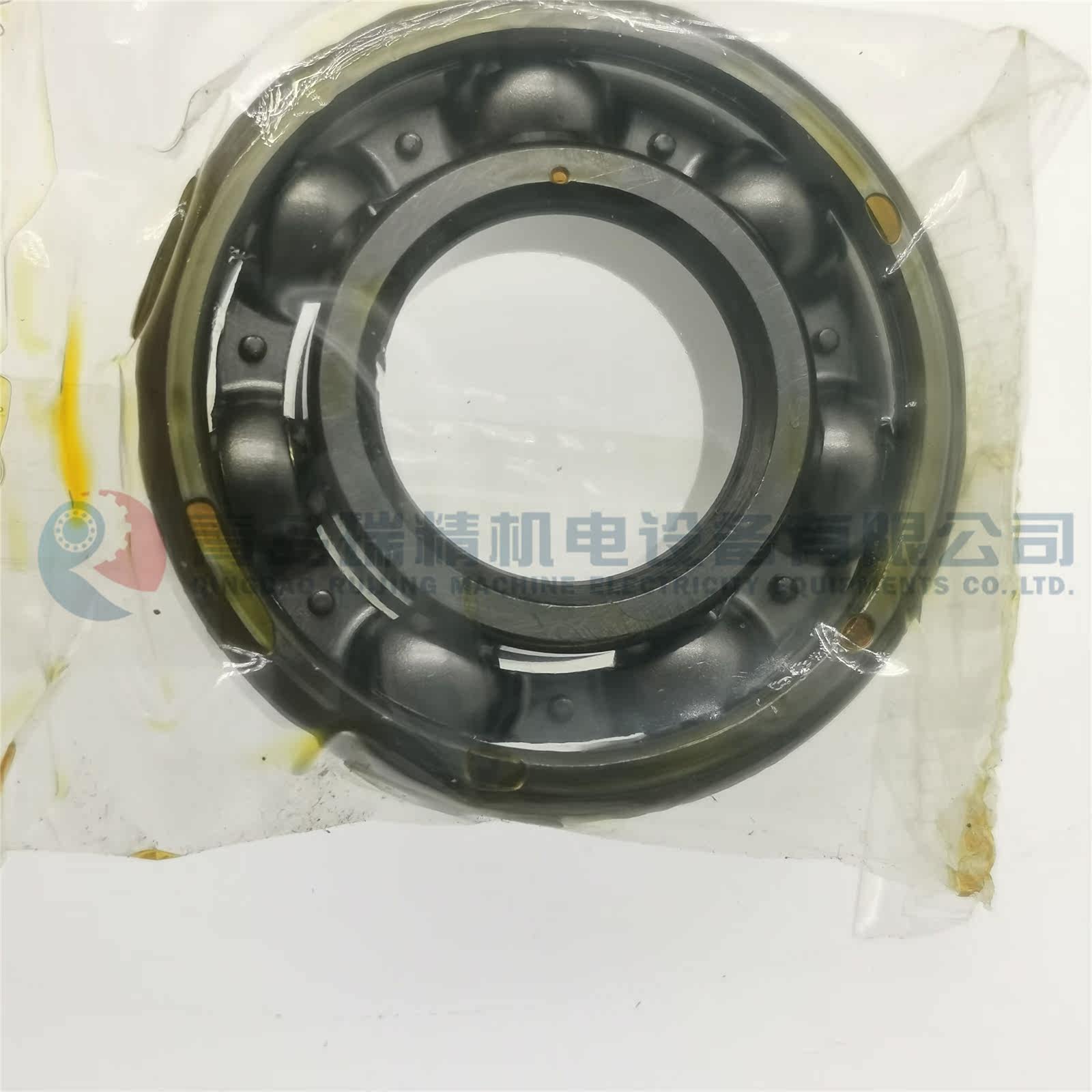

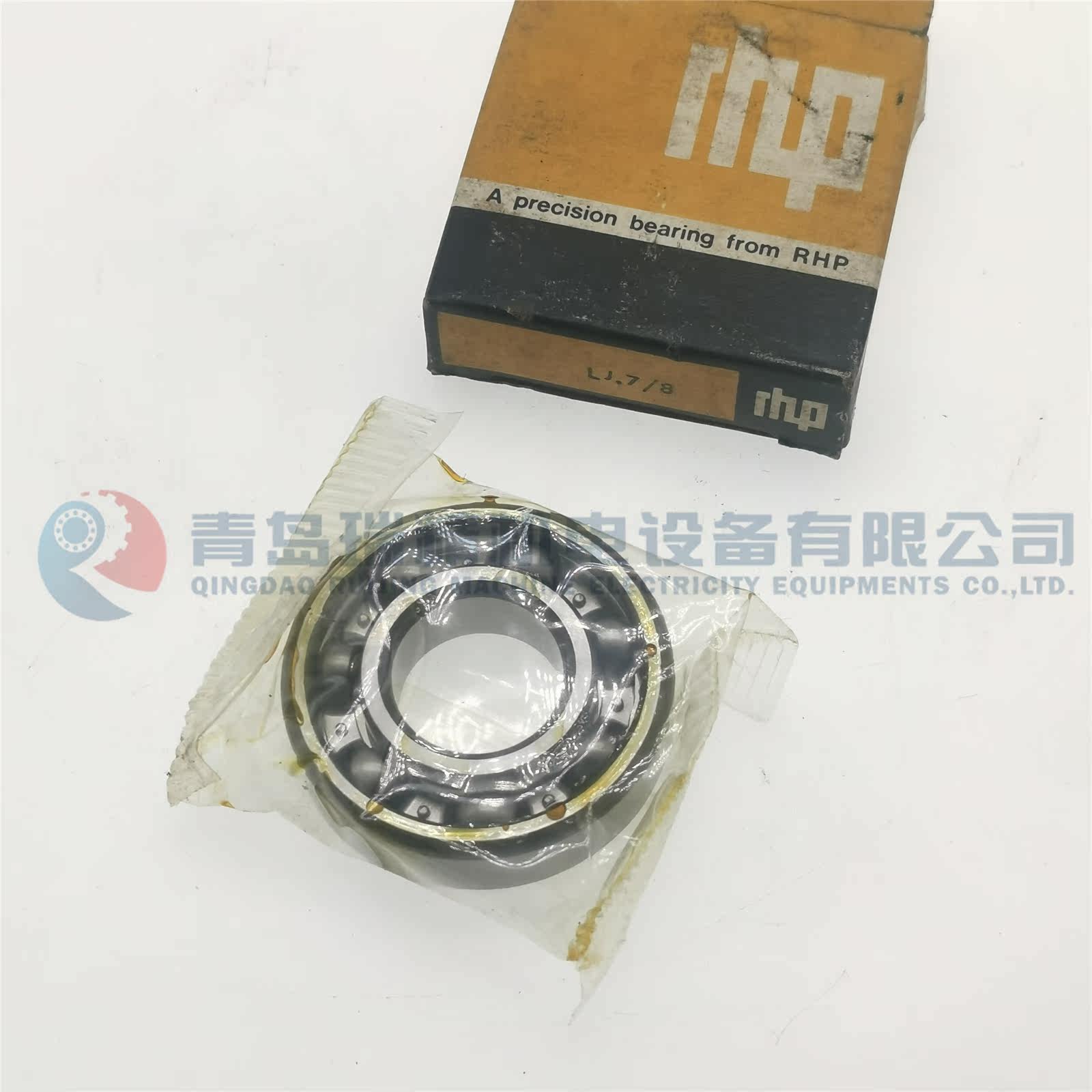

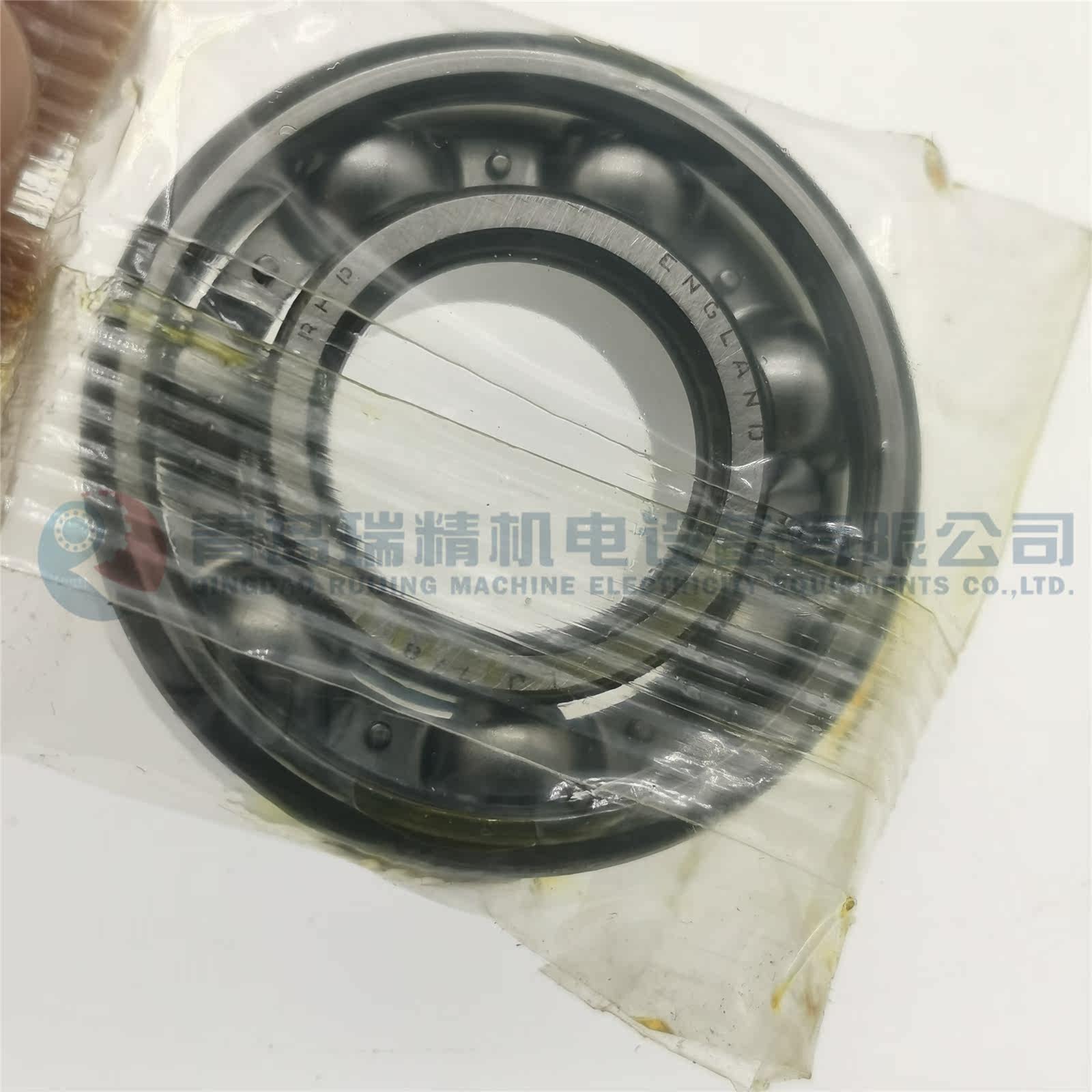

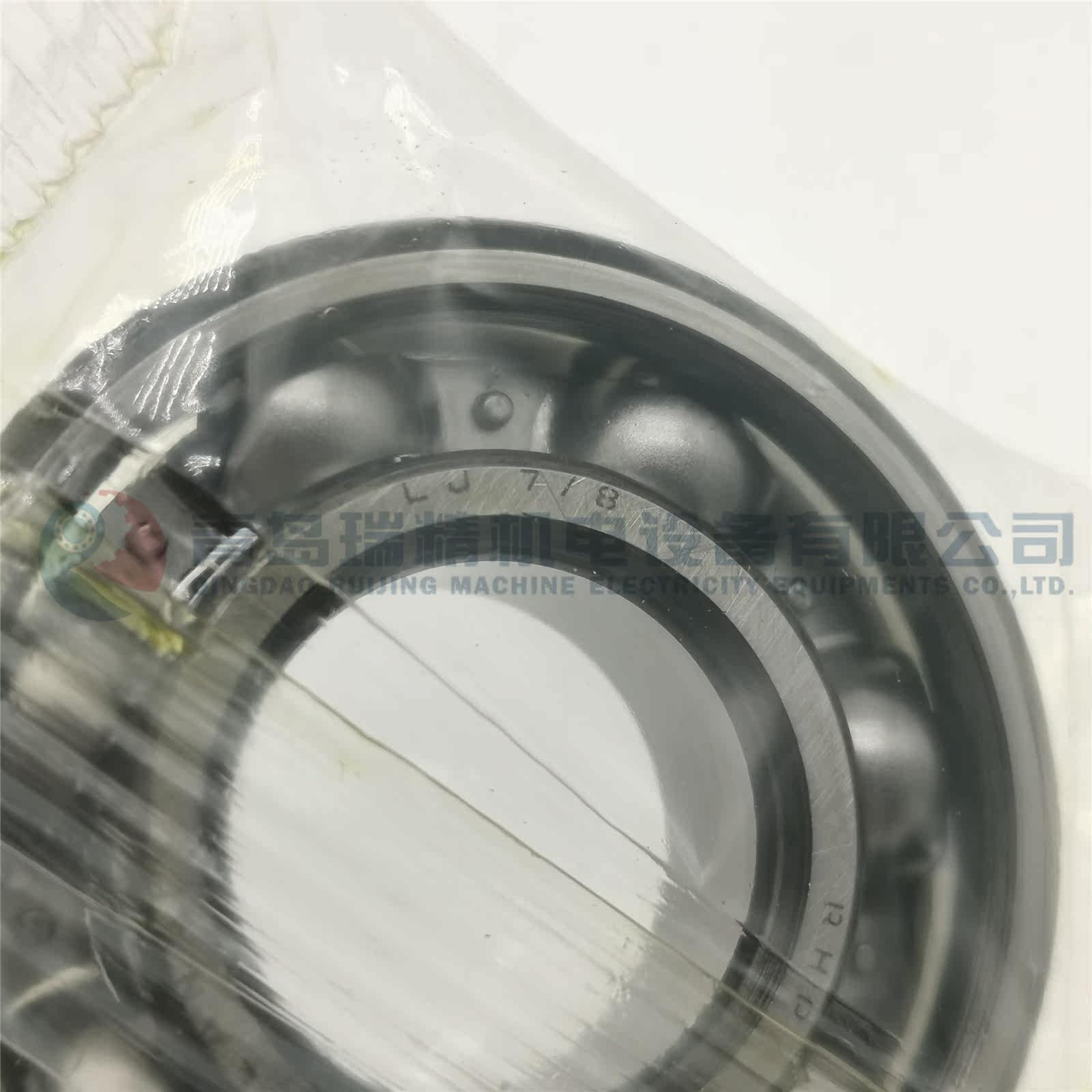

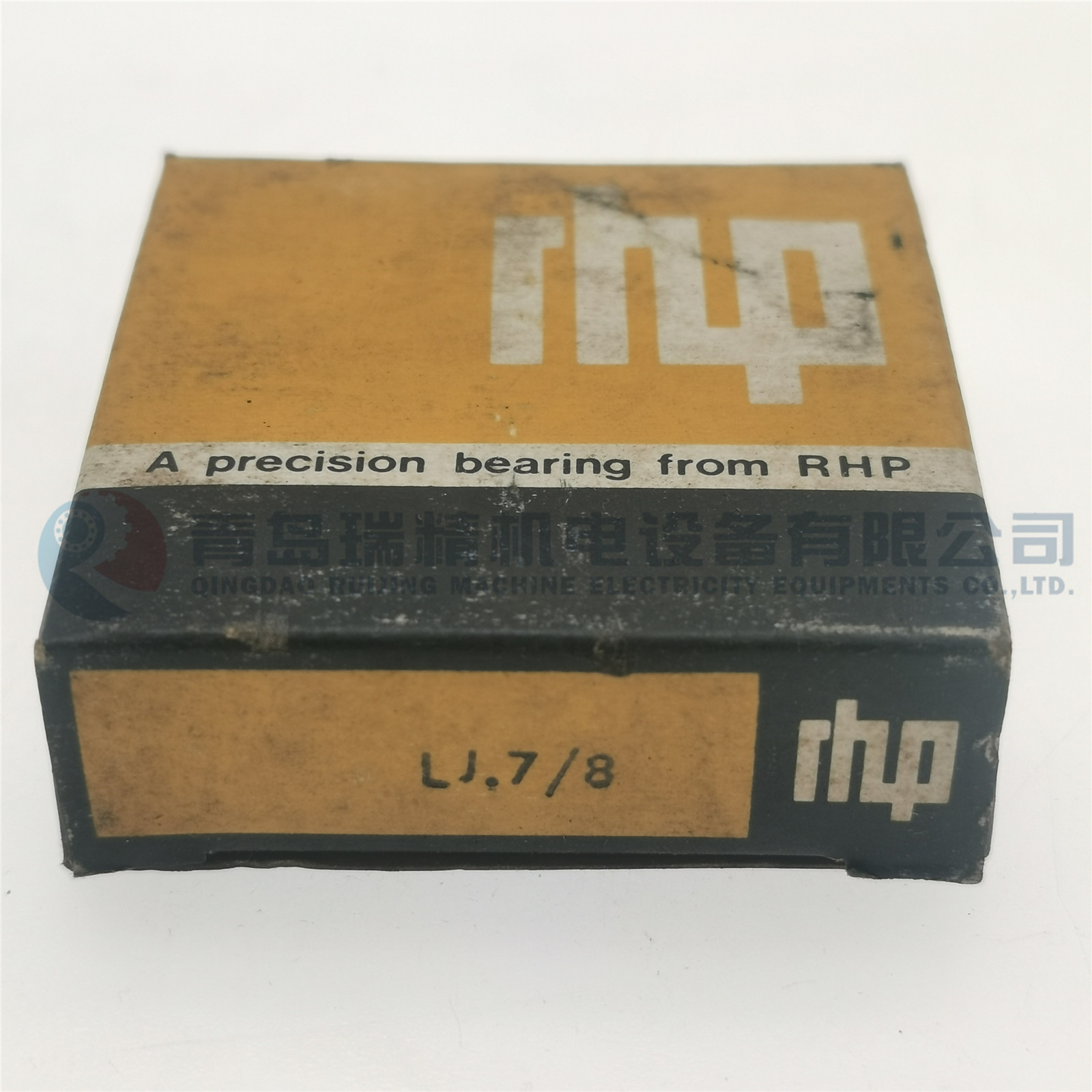

CRL 7 LJ7/8 LS9 LJT7/8 LS9AC LRJ7/8 RLS9 22.225 50.8 14.29
CRL 8 LJ1 LS10 LJT1 LS10AC LRJ1 RLS10 25.4 57.15 15.88
CRL 9 LJ1-1/8 LS11 LJT1-1/8 LS11AC LRJ1-1/8 RLS11 28.575 63.5 15.88
CRL 10 LJ1-1/8 LS12 LJT1-1/8 LS12AC LRJ1-1/8 RLS12 31.75 69.85 17.46
CRL 11 LJ1-3/8 LS12-1/2 LJT1-3/8 LS12-1/2AC LRJ1-3/8 RLS12-1/2 34.925 76.2 17.46
CRL 12 LJ1-1/2 LS13 LJT1-1/2 LS13AC LRJ1-1/2 RLS13 38.1 82.55 19.05
CRL 13 LJ1-5/8 LS13-1/2 LJT1-5/8 LS13-1/2AC LRJ1-5/8 RLS13-1/2 41.275 88.9 19.05
CRL 14 LJ1-3/4 LS14 LJT1-3/4 LS14AC LRJ1-3/4 RLS14 44.45 95.25 20.64
CRL 15 LJ1-7/8 LS14-1/2 LJT1-7/8 LS14-1/2AC LRJ1-7/8 RLS14-1/2 47.625 101.6 20.64
CRL 16 LJ2 LS15 LJT2 LS15AC LRJ2 RLS15 50.8 101.6 20.64
CRL 18 LJ2-1/4 LS16 LJT2-1/4 LS16AC LRJ2-1/4 RLS16 57.15 114.3 22.23
CRL 20 LJ2-1/2 LS17 LJT2-1/2 LS17AC LRJ2-1/2 RLS17 63.5 127 23.81
CRL 22 LJ2-3/4 LS18 LJT2-3/4 LS18AC LRJ2-3/4 RLS18 69.85 133.35 23.81
CRL 24 LJ3 LS19 LJT3 LS19AC LRJ3 RLS19 76.2 146.05 26.99
CRL 26 LJ3-1/4 LS19-1/2 LJT3-1/4 LS19-1/2AC LRJ3-1/4 RLS19-1/2 82.55 152.4 26.99
CRL 28 LJ3-1/2 LS20 LJT3-1/2 LS20AC LRJ3-1/2 RLS20 88.9 165.1 28.58
CRL 30 LJ3-3/4 LS20-1/2 LJT3-3/4 LS20-1/2AC LRJ3-3/4 RLS20-1/2 95.25 171.45 28.58
CRL 32 LJ4 LS21 LJT4 LS21AC LRJ4 RLS21 101.6 184.15 31.75
CRL 34 LJ4-1/4 LS21-1/2 LJT4-1/4 LS21-1/2AC LRJ4-1/4 RLS21-1/2 107.95 190.5 31.75
CRL 36 LJ4-1/2 LS22 LJT4-1/2 LS22AC LRJ4-1/2 RLS22 114.3 203.2 33.34
CRL 38 LJ4-3/4 LS22-1/2 LJT4-3/4 LS22-1/2AC LRJ4-3/4 RLS22-1/2 120.65 209.55 33.34
CRL 40 LJ5 LS23 LJT5 LS23AC LRJ5 RLS23 127 228.6 34.93
CRL 44 LJ5-1/2 LS23-1/2 LJT5-1/2 LS23-1/2AC LRJ5-1/2 RLS23-1/2 139.7 241.3 34.93
CRL 48 LJ6 LS24 LJT6 LS24AC LRJ6 RLS24 152.4 226.7 39.69
CRL 52 LJ6-1/2 LS24-1/2 LJT6-1/2 LS24-1/2AC LRJ6-1/2 RLS24-1/2 165.1 279.4 39.69
CRL 56 LJ7 LS25 LJT7 LS25AC LRJ7 RLS25 177.8 304.8 44.45
CRL 60 LJ7-1/2 LS25-1/2 LJT7-1/2 LS25-1/2AC LRJ7-1/2 RLS25-1/2 190.5 317.5 44.45
CRL 64 LJ8 LS26 LJT8 LS26AC LRJ8 RLS26 203.2 330.2 44.45
Inch RMS series
SKF RHP FAG RHP FAG RHP FAG DIMENTIONAL TABLE
RMS/AMS BALL BRGS BALL BRGS ANG. ANG. ROLLER ROLLER BORE O.D WIDTH
CONT. CONT.
CRM 4 MJ1/2 MS5 MJT1/2 MS5AC LRJ1/2 RMS5 12.7 41.275 15.88
CRM 5 MJ5/8 MS7 MJT5/8 MS7AC LRJ5/8 RMS7 15.875 46.038 15.88
CRM 6 MJ3/4 MS8 MJT3/4 MS8AC LRJ3/4 RMS8 19.05 50.8 17.46
CRM 7 MJ7/8 MS9 MJT7/8 MS9AC LRJ7/8 RMS9 22.225 57.15 17.46
CRM 8 MJ1 MS10 MJT1 MS10AC LRJ1 RMS10 25.4 63.5 19.05
CRM 9 MJ1-1/8 MS11 MJT1-1/8 MS11AC LRJ1-1/8 RMS11 28.575 71.438 20.64
CRM 10 MJ1-1/8 MS12 MJT1-1/8 MS12AC LRJ1-1/8 RMS12 31.75 79.375 22.23
CRM 11 MJ1-3/8 MS12-1/2 MJT1-3/8 MS12-1/2AC LRJ1-3/8 RMS12-1/2 34.925 88.9 22.23
CRM 12 MJ1-1/2 MS13 MJT1-1/2 MS13AC LRJ1-1/2 RMS13 38.1 95.25 23.81
CRM 13 MJ1-5/8 MS13-1/2 MJT1-5/8 MS13-1/2AC LRJ1-5/8 RMS13-1/2 41.275 101.6 23.81
CRM 14 MJ1-3/4 MS14 MJT1-3/4 MS14AC LRJ1-3/4 RMS14 44.45 107.95 26.99
CRM 15 MJ1-7/8 MS14-1/2 MJT1-7/8 MS14-1/2AC LRJ1-7/8 RMS14-1/2 47.625 114.3 26.99
CRM 16 MJ2 MS15 MJT2 MS15AC LRJ2 RMS15 50.8 114.3 26.99
CRM 18 MJ2-1/4 MS16 MJT2-1/4 MS16AC LRJ2-1/4 RMS16 57.15 127 31.75
CRM 20 MJ2-1/2 MS17 MJT2-1/2 MS17AC LRJ2-1/2 RMS17 63.5 139.7 31.75
CRM 22 MJ2-3/4 MS18 MJT2-3/4 MS18AC LRJ2-3/4 RMS18 69.85 158.75 34.93
CRM 24 MJ3 MS19 MJT3 MS19AC LRJ3 RMS19 76.2 177.8 39.69
CRM 26 MJ3-1/4 MS19-1/2 MJT3-1/4 MS19-1/2AC LRJ3-1/4 RMS19-1/2 82.55 190.5 39.69
CRM 28 MJ3-1/2 MS20 MJT3-1/2 MS20AC LRJ3-1/2 RMS20 88.9 206.375 44.45
CRM 30 MJ3-3/4 MS20-1/2 MJT3-3/4 MS20-1/2AC LRJ3-3/4 RMS20-1/2 95.25 209.55 44.45
CRM 32 MJ4 MS21 MJT4 MS21AC LRJ4 RMS21 101.6 215.9 44.45
CRM 34 MJ4-1/4 MS21-1/2 MJT4-1/4 MS21-1/2AC LRJ4-1/4 RMS21-1/2 107.95 222.25 44.45
CRM 36 MJ4-1/2 MS22 MJT4-1/2 MS22AC LRJ4-1/2 RMS22 114.3 238.125 50.8
CRM 38 MJ4-3/4 MS22-1/2 MJT4-3/4 MS22-1/2AC LRJ4-3/4 RMS22-1/2 120.65 254 50.8
CRM 40 MJ5 MS23 MJT5 MS23AC LRJ5 RMS23 127 254 50.8
CRM 44 MJ5-1/2 MS23-1/2 MJT5-1/2 MS23-1/2AC LRJ5-1/2 RMS23-1/2 139.7 279.4 50.8
CRM 48 MJ6 MS24 MJT6 MS24AC LRJ6 RMS24 152.4 304.8 57.15
