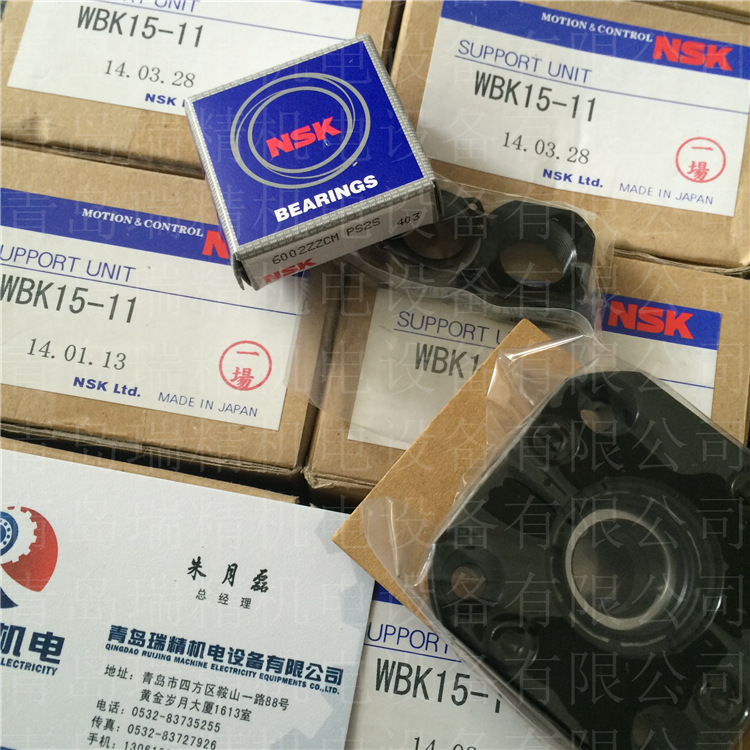

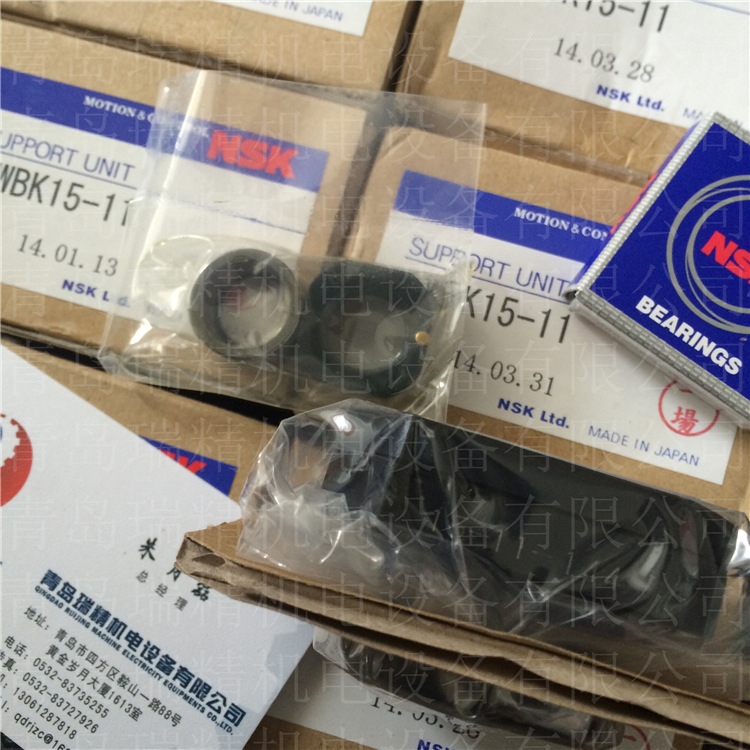

WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座WBK15-11日本NSK精机丝杠支撑座

滾珠螺桿支撐座附件 Ballscrew Support Units

螺桿支撐座設計精巧易於安裝，固定端採用日系滾珠軸承，由於軸承已適當預壓，不需再加工處理即可組裝至設備，縮短組立的工時並提昇了組立的精度，剛性與精度多樣化的設計，提供不同需求的選用。 螺桿固定座型式  EK/EF  BK/BF  FK/FF  AK/AF  WBK  螺桿支撐座適用滾珠螺桿外徑 固定側支撐座 內徑 (mm) 固定側支撐座 適用型號 支撐側支撐座 內徑 (mm) 支撐側支撐座 適用型號 適用滾珠螺桿 外徑 (mm) 5 EK05 - - Ø6 FK05 6 EK06 6 EF06 Ø8 FK06 FF06 8 EK08 6 EF08 Ø10 FK08 FF08 10 EK10 8 EF10 Ø10, Ø12, Ø14 FK10 FF10 BK10 BF10 AK10 AF10 12 EK12 10 EF12 Ø14, Ø15, Ø16 FK12 FF12 BK12 BF12 AK12 AF12 15 EK15 15 EF15 Ø20 FK15 FF15 BK15 BF15 AK15 AF15 17 BK17 17 BF17 Ø20, Ø25 FK17 FF17 20 EK20 20 EF20 Ø25, Ø28 FK20 FF20 BK20 BF20 AK20 AF20 25 FK25 25 FF25 Ø32, Ø36 BK25 BF25 30 FK30 30 FF30 Ø40, Ø45 BK30 BF30 35 BK35 35 BF35 Ø45 40 BK40 40 BF40 Ø50  螺桿支撐座固定端軸向負荷參考表 支撐座型號 軸承 靜負荷 (kgf) 軸向負荷 (kgf) 極限轉速 (RPM) FK06 EK06 706 106 53 - FK08 EK08 708 148 74 - BK10 AK10 FK10 EK10 7000A 266 133 16800 BK12 AK12 FK12 EK12 7001A 305 153 15400 BK15 AK15 FK15 EK15 7002A 350 175 13300 BK17 FK17 7203A 610 305 11200 7203B 565 363 7700 BK20   7004A 670 335 10500   AK20 FK20 EK20 7204A 845 423 9100 7204B 780 501 6650 BK25 FK25 7205A 1050 525 8400 7205B 960 617 5950 BK30 FK30 7206A 1510 755 7000 7206B 1380 887 4970 BK35   7207B 1870 1202 4200 BK40   7208B 2340 1504 3710  螺桿支撐座各廠牌型號對照表 SYK & THK BK10 BK12 BK15 BK17 BK20 BK25 BK30 BK35 BK40 BF10 BF12 BF15 BF17 BF20 BF25 BF30 BF35 BF40 SYK & THK KURODA NSK EK05 - - EK06 BUR-6 WBK06-01A EK08 BUR-8 WBK08-01A EK10 - - EK12 - - EK15 - - EK20 - - EF06 - - EF08 BUK-6S WBK08S-01 EF10 - - EF12 - - EF15 - - EF20 - - SYK & THK KURODA NSK AK10 BUK-10F WBK10-01A AK12 BUK-12F WBK12-01A AK15 BUK-15F WBK15-01A AK17 - WBK17-01A AK20 BUK-20F WBK20-01A - BUK-25F WBK25-01A AF10 BUK-8S WBK10S-01 AF12 BUK-10S WBK12S-01 AF15 BUK-15S WBK15S-01 AF17 - WBK17S-01 AF20 BUK-20S WBK20S-01 - BUK-25S WBK25S-01 SYK & THK KURODA NSK FK05 - - FK06 - WBK06-11 FK08 BUM-08 WBK08-11 FK10 BUM-10 WBK10-11 FK12 BUM-12 WBK12-11 FK15 BUM-15 WBK15-11 FK17 - - FK20 BUM-20 WBK20-11 FK25 BUM-25 WBK25-11 FK30 - - FF06 - - FF10 - - FF12 - - FF15 - - FF17 - - FF20 - - FF25 - - FF30 - -
