| 品牌 | NSK/恩斯凯 | 型号 | FC-6 | 旧型号 | FC-6 |
| 内径 | 6（mm） | 外径 | 10（mm） | 厚度 | 12（mm） |
| 保持架及其材料 | TH玻璃纤维增强酚醛树脂 | 重量 | 0.001（kg） | 用途 | 通用 |
| 样品或现货 | 现货 | 滚动体类型 | 滚针 | 滚动体列数 | 单列 |
| 滚道类型 | 直线滚道 | 使用特性 | 高速 | 轴承材质 | 高碳铬轴承钢（全淬透型)(GCr15) |
| 轴承材料 | ha | 角度 | 15度 | 密封盖 | 双面密封 |
| 滚动体 | 钢球 | 是否跨境货源 | 否 |

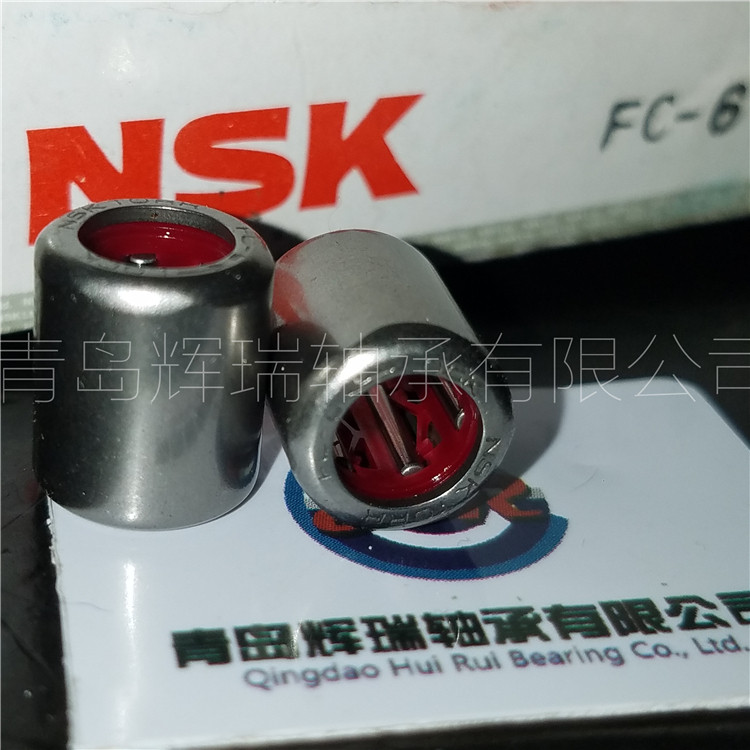

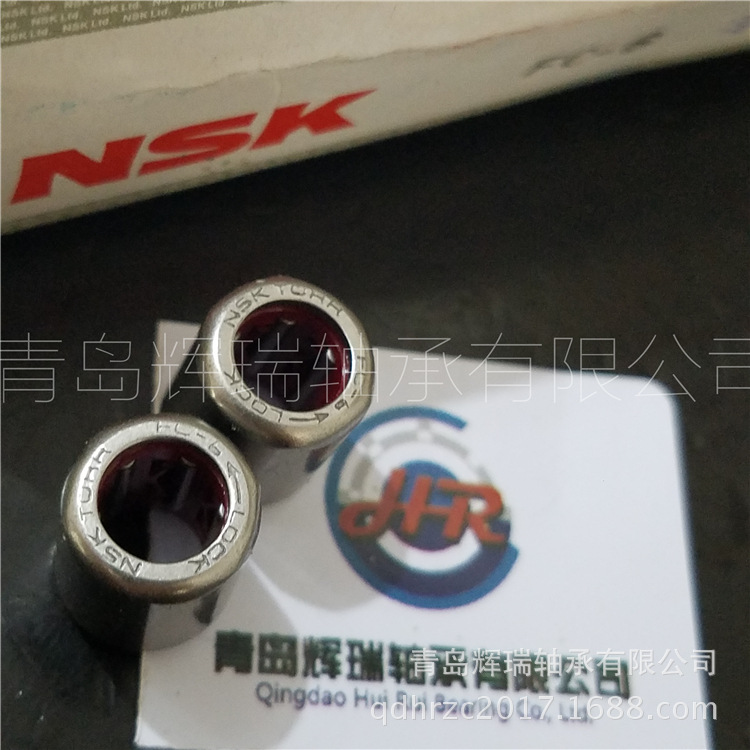

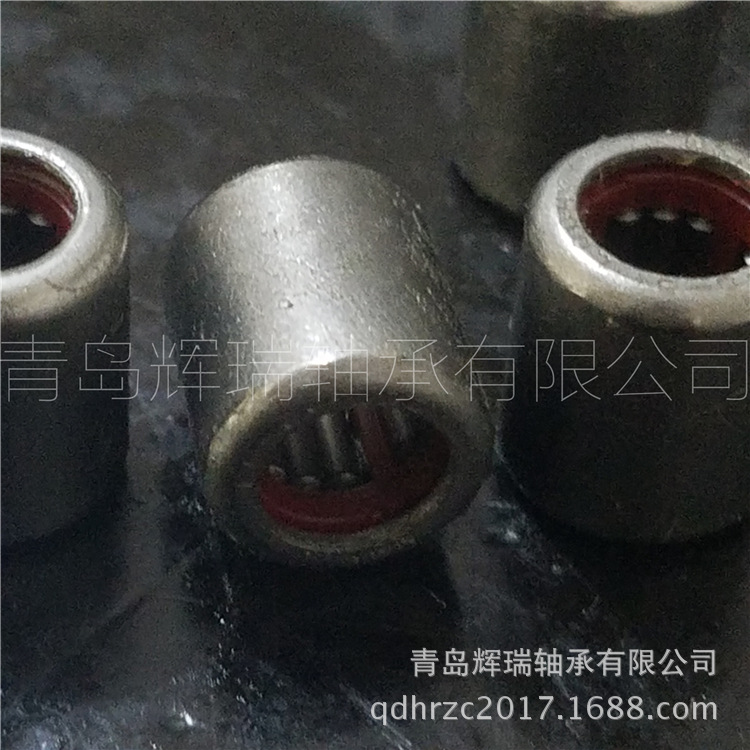

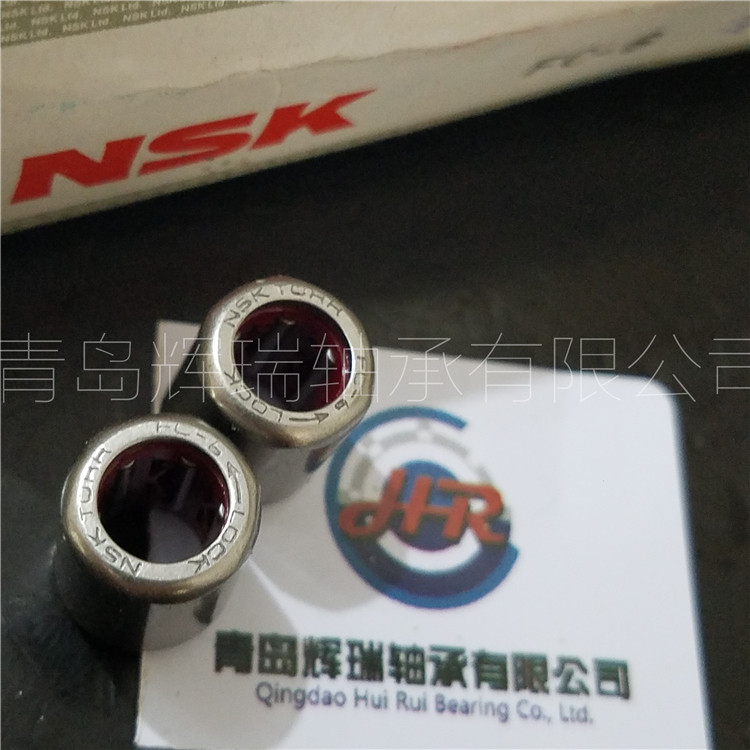

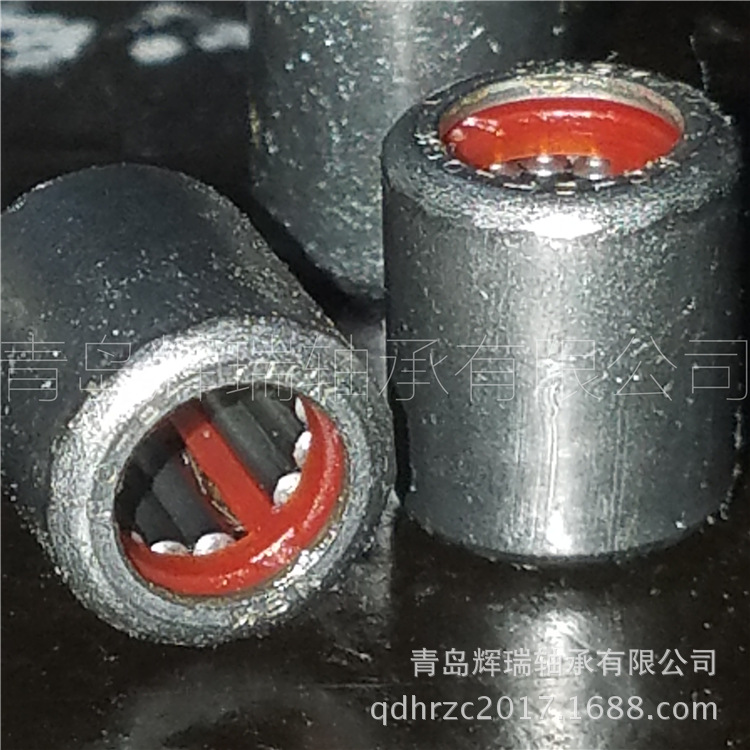

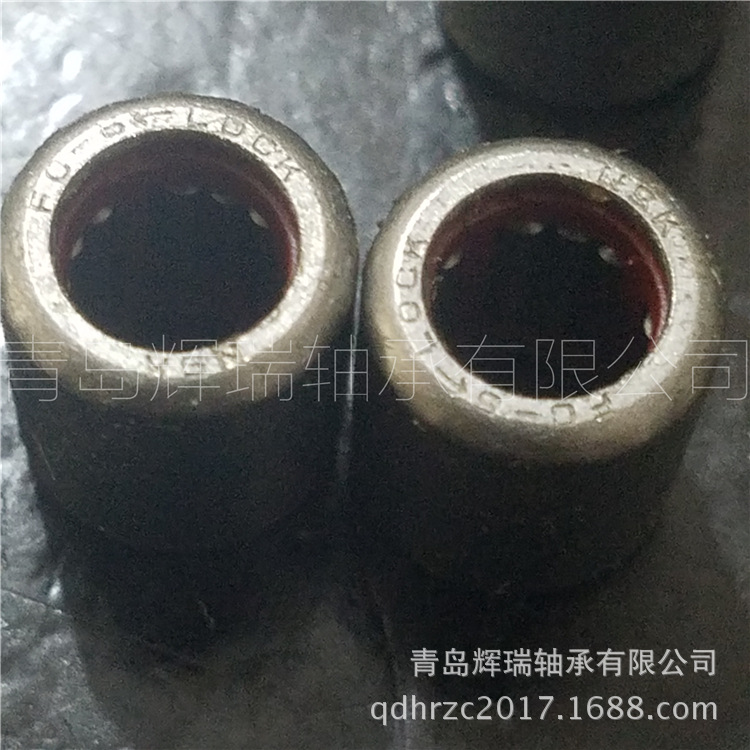

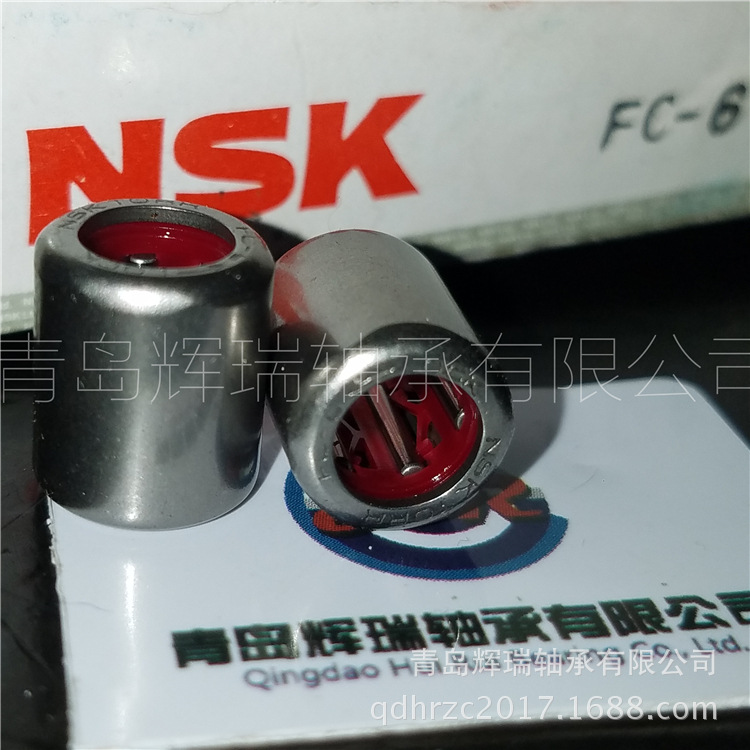

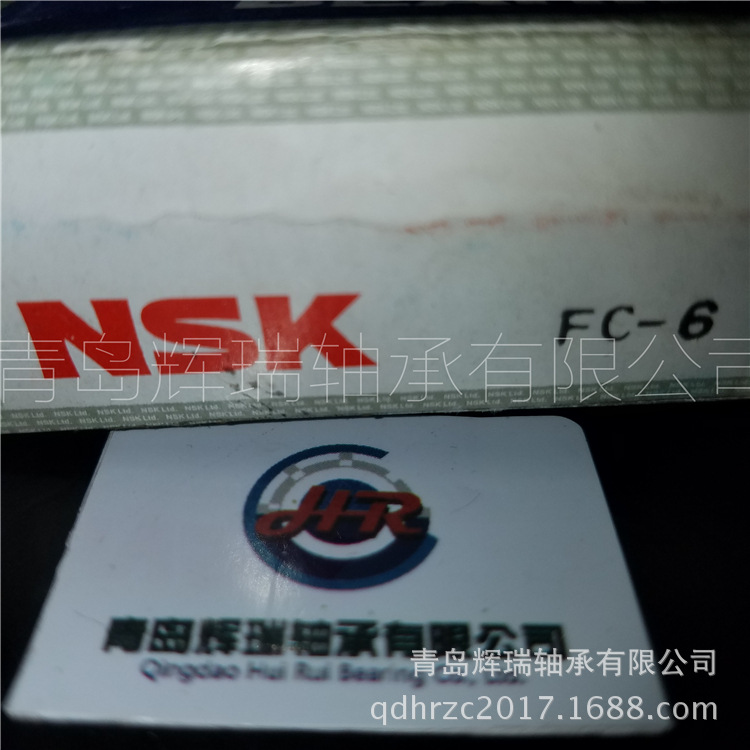

青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承FC-6内径6mm外径10mm厚度12mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承FC-6内径6mm外径10mm厚度12mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承FC-6内径6mm外径10mm厚度12mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承FC-6内径6mm外径10mm厚度12mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承FC-6内径6mm外径10mm厚度12mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承FC-6内径6mm外径10mm厚度12mm
| Part numbers | Weight(g) | Boundary dimensions | |||
| Fw | D | C | Torque (Nm) | ||
| NSK FC/FCL/FCB series | |||||
| FC4K | 1 | 4 | 8 | 6 | 0.34 |
| FC6 | 3 | 6 | 10 | 12 | 1.76 |
| FC6K | 3 | 6 | 10 | 12 | 1.76 |
| FC8 | 4 | 8 | 14 | 12 | 5.3 |
| FCL8K | 3.5 | 8 | 12 | 12 | 5 |
| FC10 | 4.8 | 10 | 16 | 12 | 6 |
| FCL10K | 4 | 10 | 14 | 12 | 5.3 |
| FC12 | 11 | 12 | 18 | 16 | 12.2 |
| FC14K | 13 | 14 | 20 | 16 | 17.3 |
| FC16 | 14 | 16 | 22 | 16 | 20.5 |
| FC20 | 17 | 20 | 26 | 16 | 28.5 |
| FC25 | 30 | 25 | 32 | 20 | 66 |
| FC30 | 36 | 30 | 37 | 20 | 90 |
| FC35 | 40 | 35 | 42 | 20 | 121 |
| FCB8 | 10 | 8 | 14 | 20 | 5 |
| FCB10 | 15 | 16 | 16 | 20 | 10 |
| FCB12 | 18 | 18 | 18 | 26 | 12.2 |
| FCB16 | 22 | 22 | 22 | 26 | 20.5 |
| FCB20 | 27 | 26 | 26 | 26 | 28.5 |
| FCB25 | 44 | 32 | 32 | 30 | 66 |
| FCB30 | 51 | 37 | 37 | 30 | 90 |
| FCB35 | 58 | 35 | 42 | 30 | 121 |
| Part numbers | Weight (g) | Boundary dimensions | |||
| Fw | D | C | Torque (Nm) | ||
| RC/RCB series | |||||
| RC040708 | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
| RC040708-FS | 3.5 | 6.35 | 11.112 | 12.7 | 1.9 |
| RC061008 | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
| RC061008-FC | 4.7 | 9.525 | 15.875 | 12.7 | 4.83 |
| RC081208 | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
| RC081208-FS | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
| RC101410 | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
| RC101410-FC | 14.5 | 15.875 | 22.225 | 15.88 | 15.4 |
| RC121610 | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
| RC121610-FS | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
| RC162110 | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
| RC162110-FC | 16.2 | 25.4 | 33.338 | 15.88 | 45 |
| RCB061014 | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB061014-FS | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB081214 | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB081214-FC | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB101416 | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB101416-FS | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB121616 | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB121616-FC | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB162117 | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
| RCB162117-FS | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
