| NSK Part Number | Dimension (mm) | ||
| Fw | D | C | |
| F79 | 7 | 11 | 9 |
| F88 | 8 | 12 | 8 |
| F810 | 8 | 12 | 10 |
| F812 | 8 | 12 | 12 |
| F910 | 9 | 13 | 10 |
| F1010 | 10 | 14 | 10 |
| F1210 | 12 | 16 | 10 |
| F1212 | 12 | 16 | 12 |
| F1312 | 13 | 19 | 12 |
| F1412 | 14 | 20 | 12 |
| F1413 | 14 | 20 | 13 |
| F1416 | 14 | 20 | 16 |
| F1510 | 15 | 21 | 10 |
| F1512 | 15 | 21 | 12 |
| F1514 | 15 | 21 | 14 |
| F1516 | 15 | 21 | 16 |
| F1612 | 16 | 22 | 12 |
| F1616 | 16 | 22 | 16 |
| F1712 | 17 | 23 | 12 |
| F1716 | 17 | 23 | 16 |
| F1720 | 17 | 23 | 20 |
| F1812 | 18 | 24 | 12 |
| F1816 | 18 | 24 | 16 |
| F2012 | 20 | 26 | 12 |
| F2016 | 20 | 26 | 16 |
| F2020 | 20 | 26 | 20 |
| F2210 | 22 | 28 | 10 |
| F2212 | 22 | 28 | 12 |
| F2216 | 22 | 28 | 16 |
| F2220 | 22 | 28 | 20 |
| F2516 | 25 | 32 | 16 |
| F2520 | 25 | 32 | 20 |
| F2526 | 25 | 32 | 26 |
| F2812 | 28 | 35 | 12 |
| F2816 | 28 | 35 | 16 |
| F2820 | 28 | 35 | 20 |
| F2826 | 28 | 35 | 26 |
| F3014 | 30 | 37 | 14 |
| F3016 | 30 | 37 | 16 |
| F3020 | 30 | 37 | 20 |
| F3026 | 30 | 37 | 26 |
| F3512 | 35 | 42 | 12 |
| F3516 | 35 | 42 | 16 |
| F3520 | 35 | 42 | 20 |
| F3526 | 35 | 42 | 26 |
| F4016 | 40 | 47 | 16 |
| F4020 | 40 | 47 | 20 |

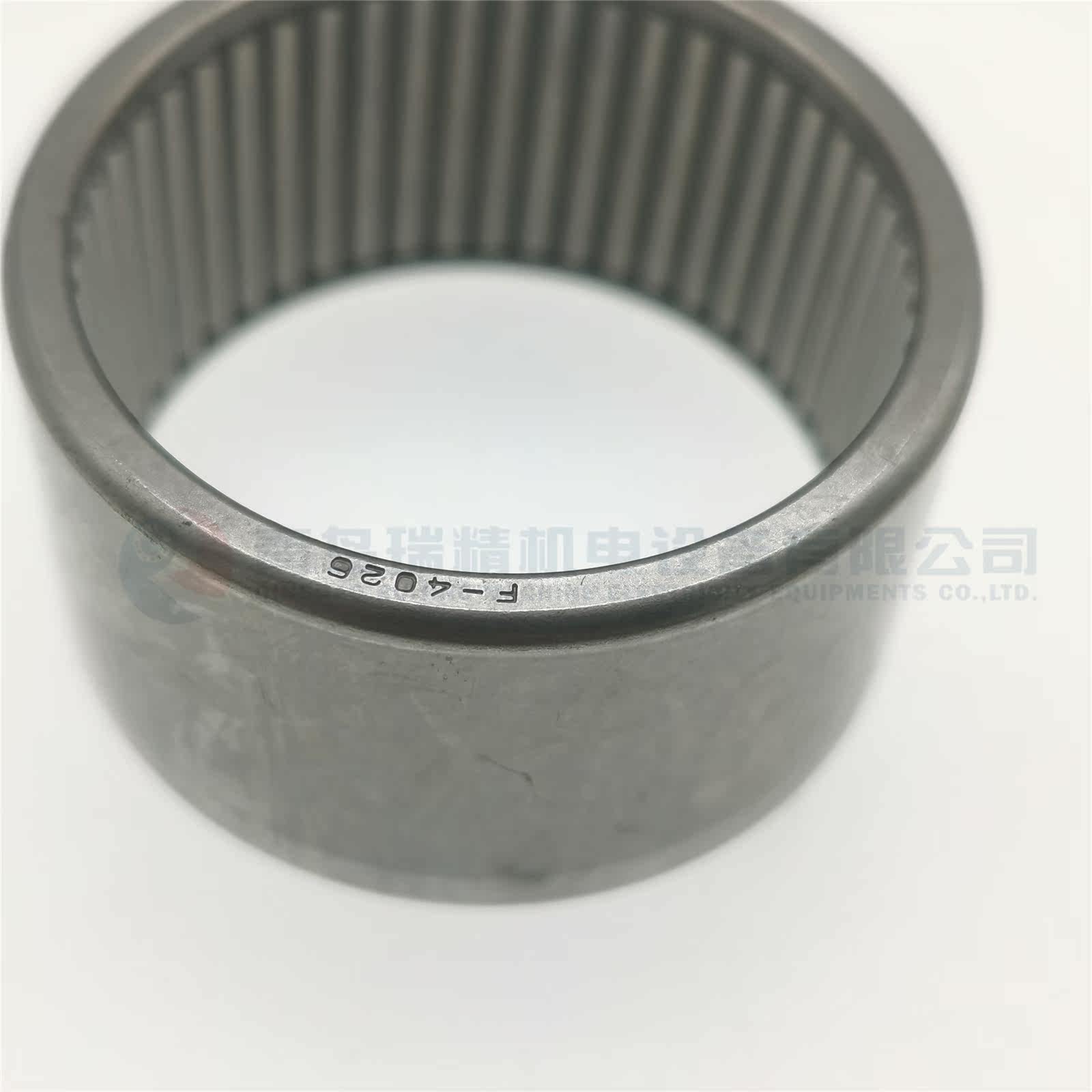

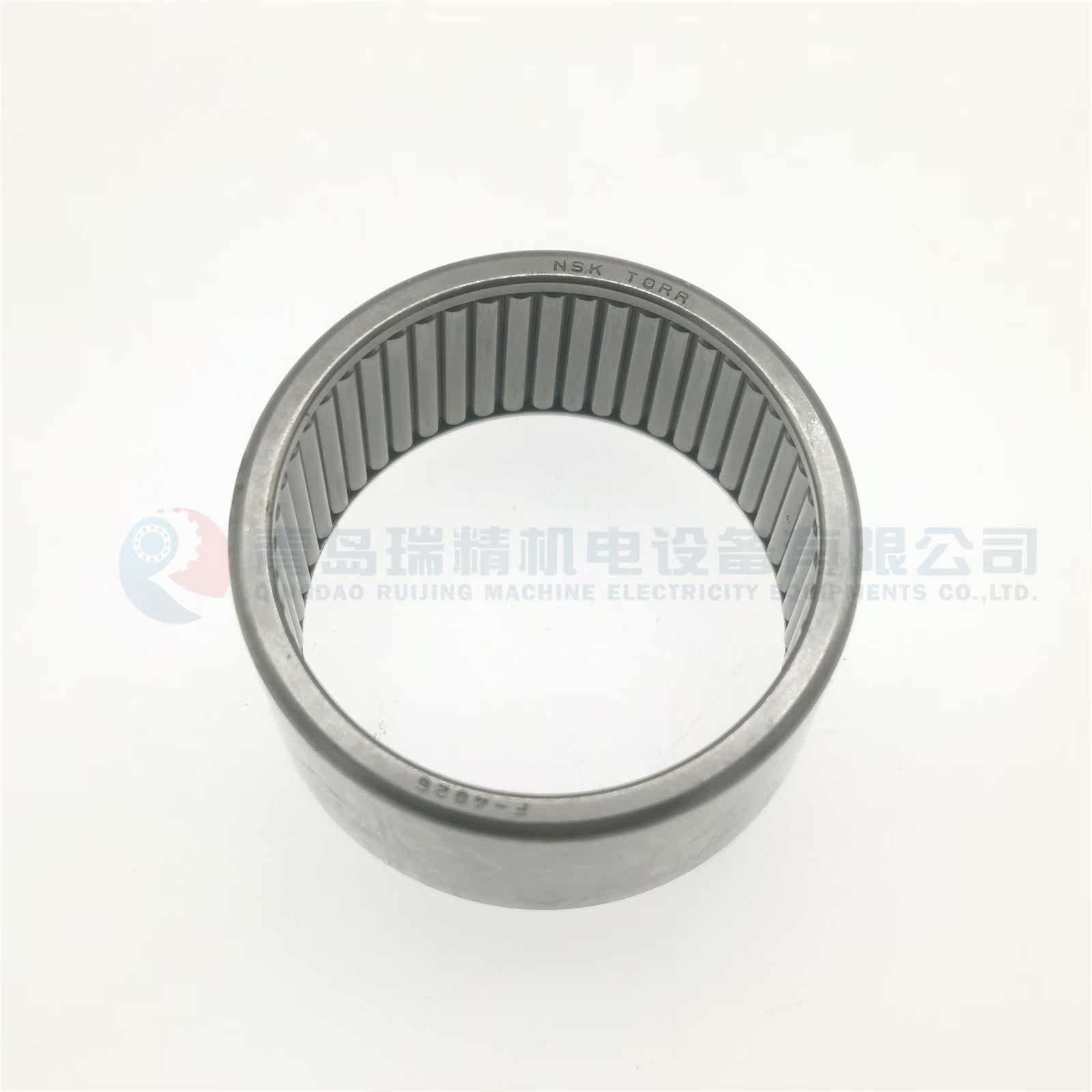

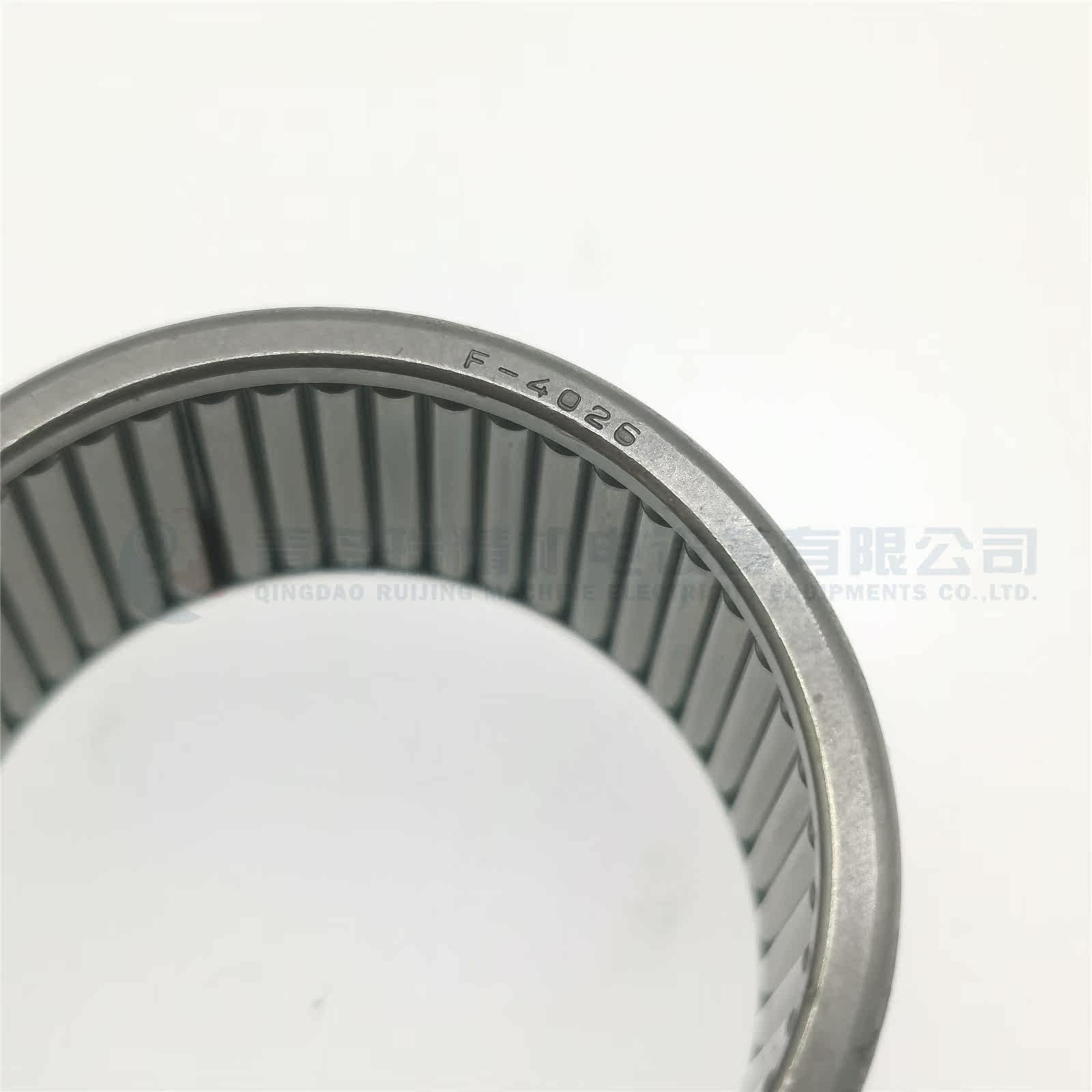

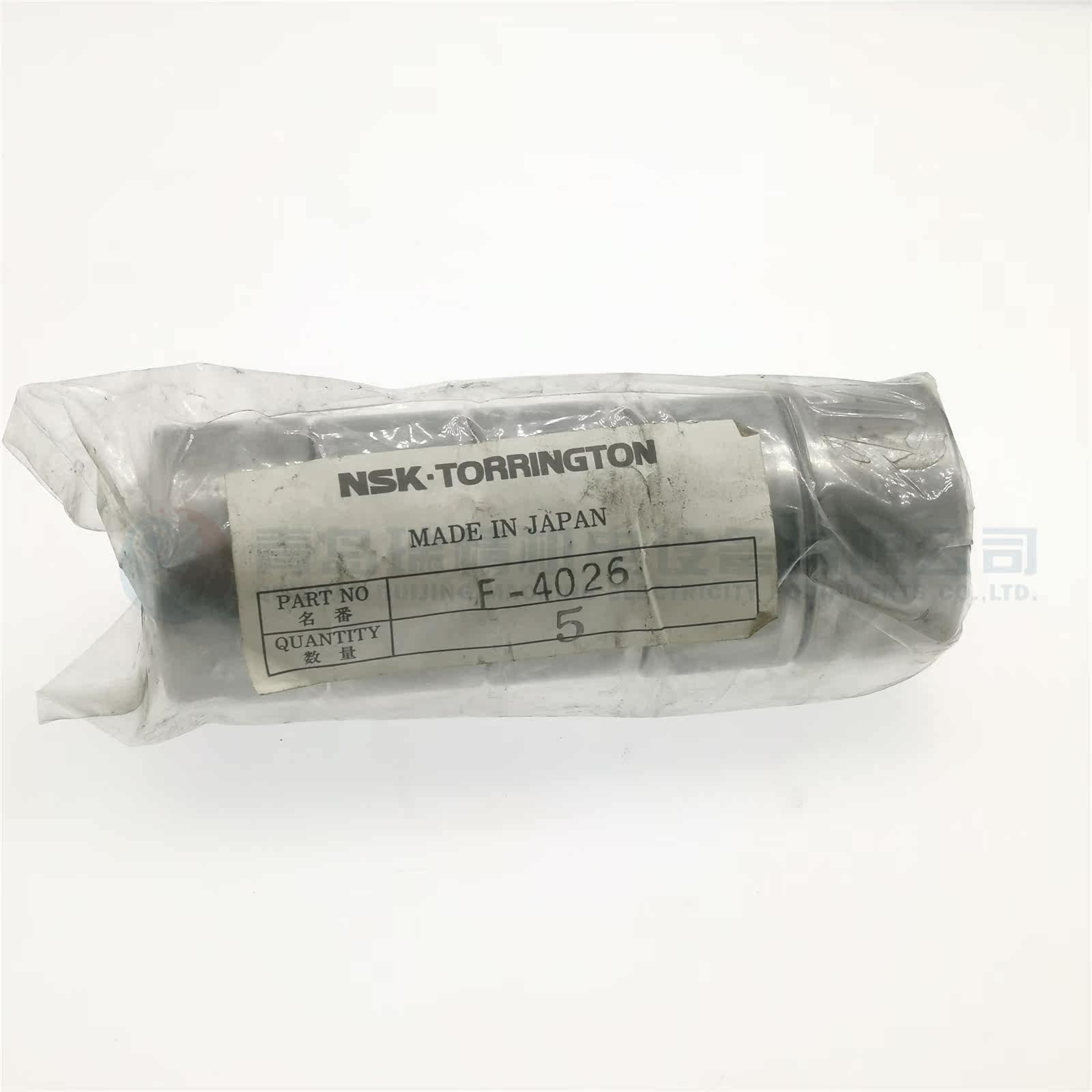

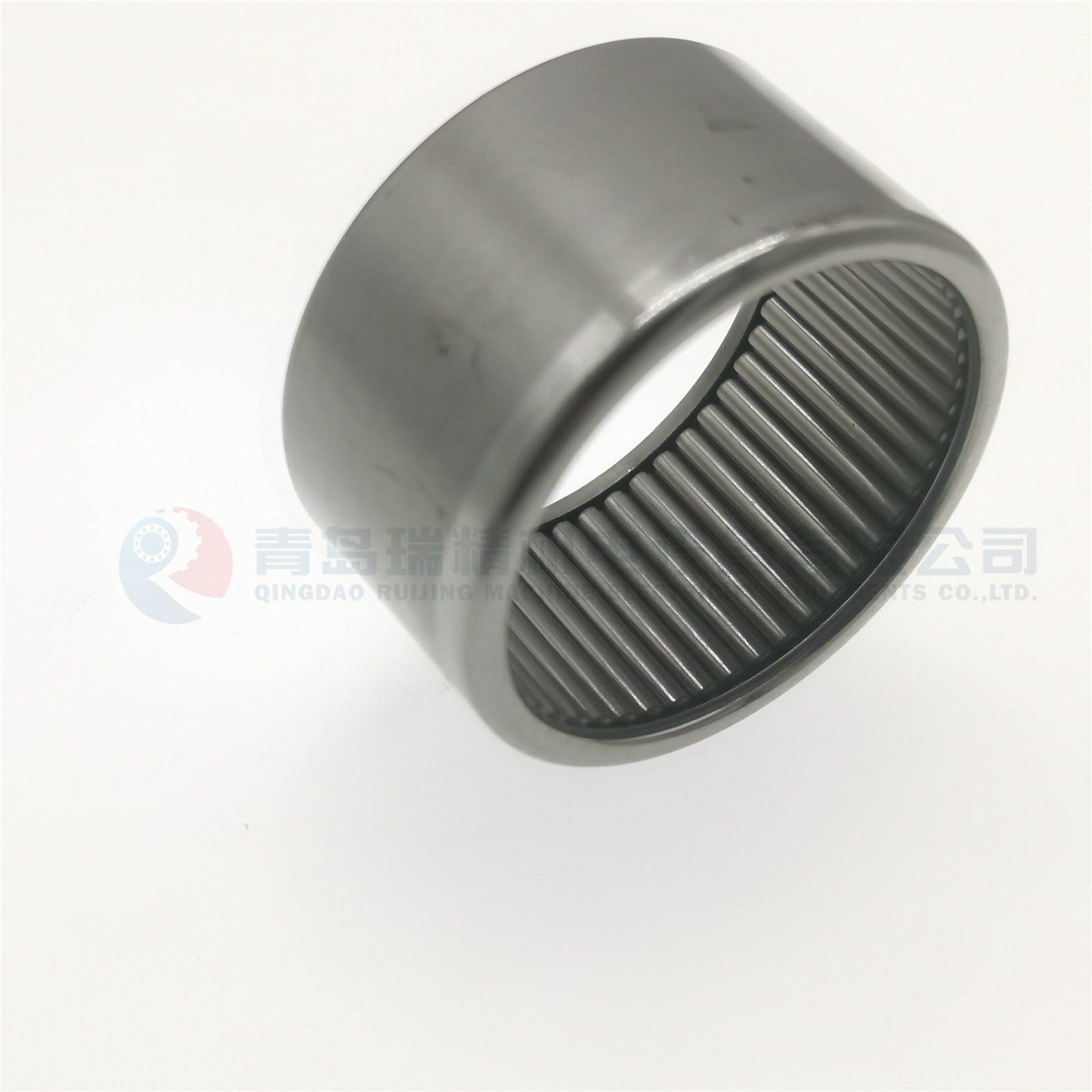

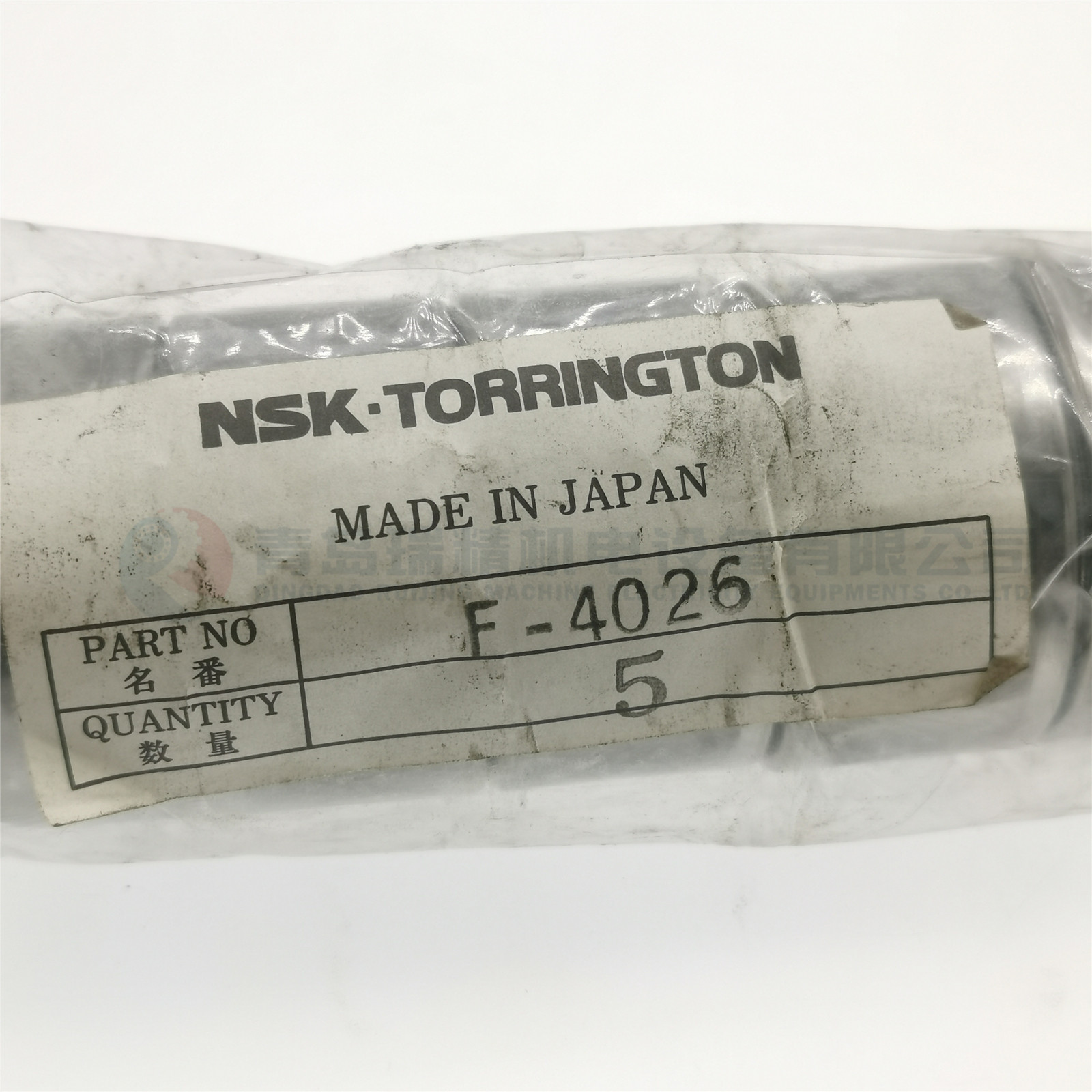

| F4026 | 40 | 47 | 26 |
| F4516 | 45 | 52 | 16 |
| F4520 | 45 | 52 | 20 |
| F4526 | 45 | 52 | 26 |
| F5020 | 50 | 58 | 20 |
| F5024 | 50 | 58 | 24 |
| F5520 | 55 | 63 | 20 |
| F5524 | 55 | 63 | 24 |
