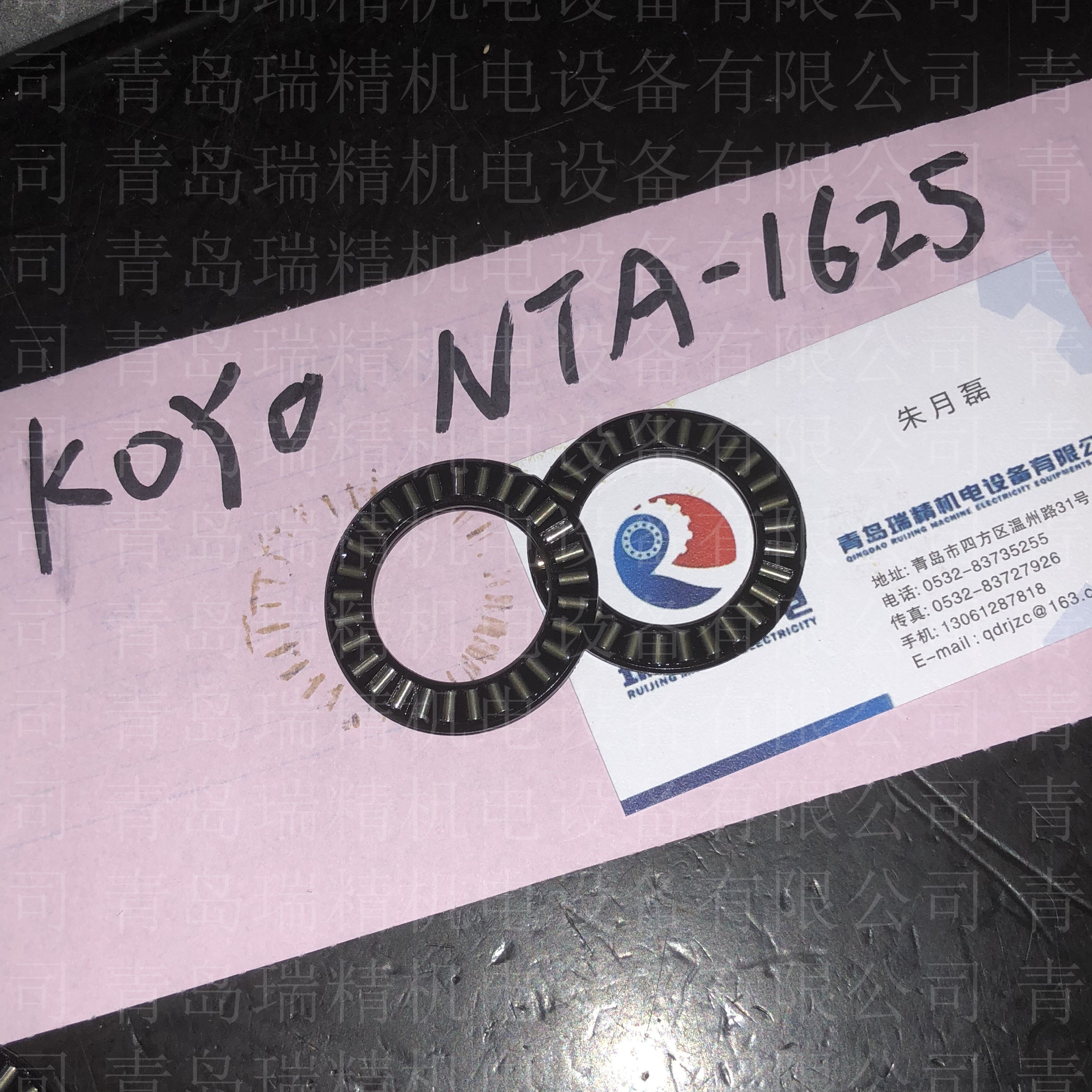

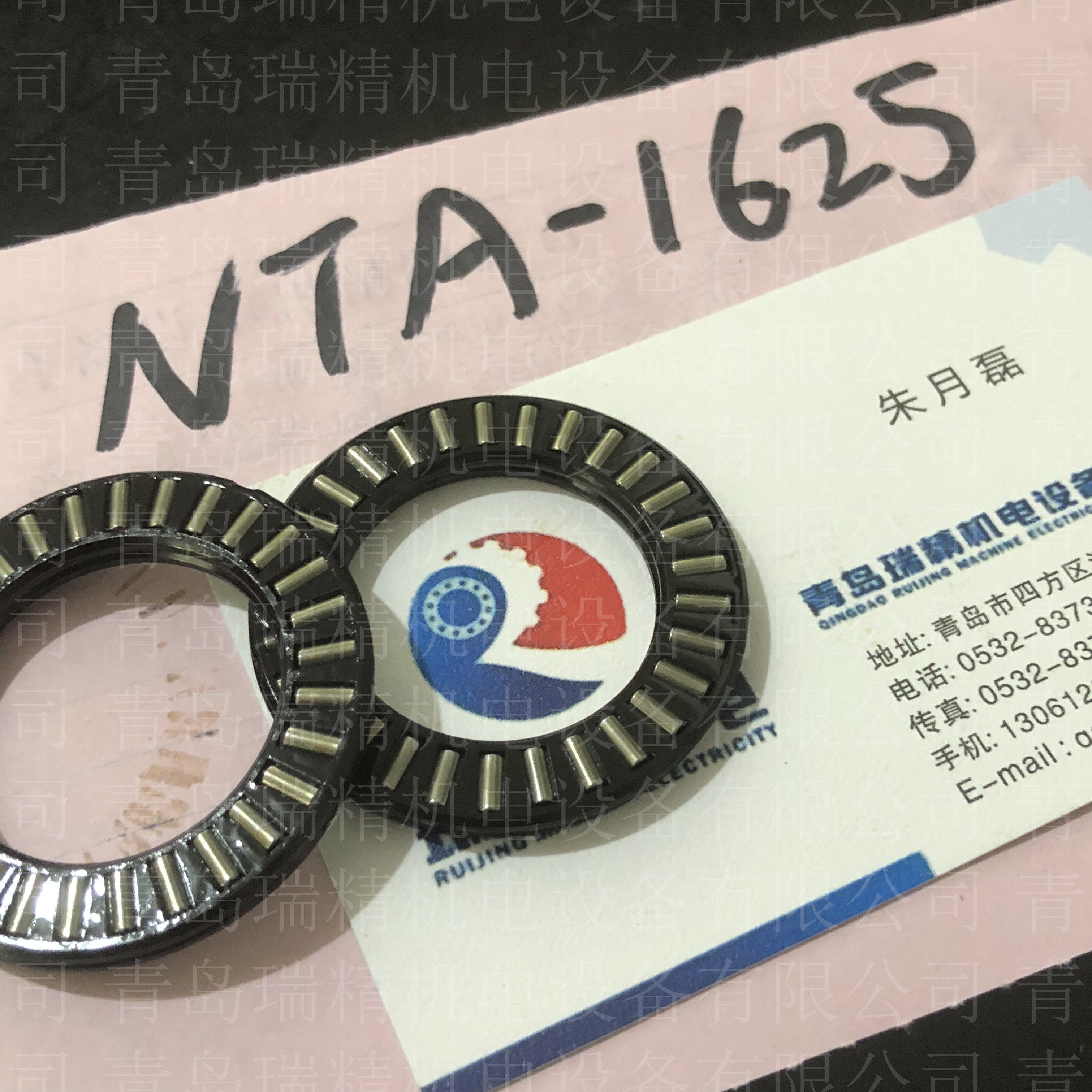

KOYO英制平面滚针轴承 NTA-1625 老吴EDC 啪啪币 美沃奇锂电扳手

KOYO英制平面滚针轴承 NTA-1625 老吴EDC 啪啪币 美沃奇锂电扳手

  • 型号：
  • NTA-1625
  • 品牌：
  • KOYO轴承
  • 系列：
  • 内径d：
  • mm
  • 外径D：
  • mm
  • 厚度B：
  • mm
KOYO英制平面滚针轴承 NTA-1625 老吴EDC 啪啪币 美沃奇锂电扳手参数

参数信息

品牌
KOYO
型号
NTA-1625
产地
日本
厚度（mm）
1.984mm
颜色分类
黑色
是否标准件
否
滚动体列数
单列
是否进口
是
滚动轴承座材质：
轴承钢
内径（mm）
其他

图文详情

订货号 NTA-1625 品牌 INA 型号 NTA-1625
旧型号 NTA-1625 内径 25.4（mm） 外径 39.675（mm）
厚度 1.984（mm） 保持架及其材料 TH玻璃纤维增强酚醛树脂 重量 0.006（kg）
用途 通用 样品或现货 现货 滚动体类型 滚针
滚动体列数 单列 滚道类型 直线滚道 使用特性 高温
轴承材质 高碳铬轴承钢（全淬透型)(GCr15) 轴承材料 HP 角度 15度
密封盖 无密封 滚动体 钢球 精度等级 P0
组配方式 SU/G 主要下游平台 独立站 主要销售地区 南美
有可授权的自有品牌 否 是否跨境货源 是 货号 NTA-1625
工作原理 滚动 是否提供加工定制 是 类型 滚针轴承






KOYO英制平面滚针轴承 NTA-1625 青岛瑞精机电现货供应0532-83735255

KOYO英制平面滚针轴承 NTA-1625 轴承尺寸 轴承规格参数 轴承报价

内径：25.4mm

外径：39.675mm
宽度：1.984mm
型号：KOYO英制平面滚针轴承 NTA-1625

类型：滚针轴承

品牌：KOYO

备注： 滚针轴承

THRUST NEEDLE ROLLER BEARINGS
DIMENSIONS INTERCHANGE
d D Dw INA
AXK		 SKF
AXK		 FAG
AXK		 IKO
NTB		 Torrington
FNT(A)		 Torrington
NTA
inch mm inch mm inch mm
0.250 6.350 0.687 17.450 0.0781 1.984           NTA-411
0.312 7.925 0.750 19.050 0.0781 1.984           NTA-512
0.375 9.525 0.812 20.625 0.0781 1.984           NTA-613
0.394 10.000 0.945 24.000 0.0787 2.000 AXK 1024 AXK 1024 AXK 1024 NTB 1024 FNT-1024
0.472 12.000 1.024 26.000 0.0787 2.000 AXK 1226 AXK 1226 FNT-1226 NTB 1226 FNT-1226
0.500 12.700 0.937 23.800 0.0781 1.984           NTA-815
0.562 14.275 1.000 25.400 0.0782 1.986           NTA-916
0.591 15.000 1.102 28.000 0.0787 2.000 AXK 1528 AXK 1528 AXK 1528 NTB 1528 FNTA-1528
0.625 15.875 1.125 28.575 0.0781 1.984           NTA-1018
0.630 16.000 1.142 29.000 0.0787 2.000       NTB 1629
0.669 17.000 1.181 30.000 0.0787 2.000 AXK 1730 AXK 1730 AXK 1730 NTB 1730 FNT-1730
0.709 18.000 1.220 31.000 0.0787 2.000       NTB 1831
0.750 19.050 1.250 31.750 0.0781 1.984           NTA-1220
0.787 20.000 1.378 35.000 0.0787 2.000 AXK 2035 AXK 2035 AXK 2035 NTB 2035 FNTA-2035
0.875 22.225 1.437 36.500 0.0781 1.984           NTA-1423
0.984 25.000 1.654 42.000 0.0787 2.000 AXK 2542 AXK 2542 AXK 2542 NTB 2542 FNTA-2542
1.000 25.400 1.562 39.675 0.0781 1.984           NTA-1625
1.125 28.575 1.750 44.450 0.0781 1.984           NTA-1828
1.181 30.000 1.850 47.000 0.0787 2.000 AXK 3047 AXK 3047 AXK 3047 NTB 3047 FNTA-3047
1.250 31.750 1.937 49.200 0.0781 1.984           NTA-2031
1.375 34.925 2.062 52.375 0.0781 1.984           NTA-2233
1.378 35.000 2.047 52.000 0.0787 2.000 AXK 3552 AXK 3552 AXK 3552 NTB 3552 FNT-3552
1.500 38.100 2.187 55.550 0.0781 1.984           NTA-2435
1.575 40.000 2.362 60.000 0.1181 3.000 AXK 4060 AXK 4060 AXK 4060 NTB 40603 FNT-4060
1.750 44.450 2.500 63.500 0.0781 1.984           NTA-2840
1.772 45.000 2.559 65.000 0.1181 3.000 AXK 4565 AXK 4565 AXK 4565 NTB 4565 FNT-4565
1.969 50.000 2.756 70.000 0.1181 3.000 AXK 5070 AXK 5070 AXK 5070 NTB 5070 FNT-5070
2.000 50.800 2.750 69.850 0.0781 1.984           NTA-3244
2.125 53.975 2.875 73.025 0.0781 1.984           NTA-3446
2.165 55.000 3.071 78.000 0.1181 3.000 AXK 5578 AXK 5578 AXK 5578 NTB 5578 FNT-5578
2.250 57.150 3.000 76.200 0.0781 1.984           NTA-3648
2.250 57.150 3.125 79.375 0.1250 3.175           NTA-3650
2.500 63.500 3.250 82.550 0.0781 1.984           NTA-4052
2.362 60.000 3.346 85.000 0.1181 3.000 AXK 6085 AXK 6085 AXK 6085 NTB 6085 FNTA-6085
2.559 65.000 3.543 90.000 0.1181 3.000 AXK 6590 AXK 6590 AXK 6590 NTB 6590 FNTA-6590
2.750 69.850 3.625 92.075 0.1250 3.175           NTA-4458
2.756 70.000 3.740 95.000 0.1575 4.000 AXK 7095 AXK 7095 AXK 7095 NTB 7095 FNTA-7095
2.953 75.000 3.937 100.000 0.1575 4.000 AXK 75100 AXK 75100 AXK 75100 NTB 75100 FNTA-75100
3.000 76.200 3.750 95.250 0.0781 1.984           NTA-4860
3.150 80.000 4.134 105.000 0.1575 4.000 AXK 80105 AXK 80105 AXK 80105 NTB 80105 FNTA-80105
3.250 82.550 4.125 104.775 0.1250 3.175           NTA-5266
3.346 85.000 4.331 110.000 0.1575 4.000 AXK 75110 AXK 75110 AXK 75110 NTB 85110 FNTA-75110
3.543 90.000 4.724 120.000 0.1575 4.000 AXK 90120 AXK 90120 AXK 90120 NTB 90120 FNTA-90120
3.750 95.250 4.625 117.475 0.1250 3.175           NTA-6074
3.937 100.000 5.315 135.000 0.1575 4.000 AXK 100135 AXK 100135 AXK 100135 NTB 100135 FNTA-100135
4.125 104.775 5.062 128.575 0.1250 3.175           NTA-6681
4.331 110.000 5.709 145.000 0.1575 4.000 AXK 110145 AXK 110145 AXK 110145 NTB 110145
4.724 120.000 6.102 155.000 0.1575 4.000 AXK 120155 AXK 120155 AXK 120155 NTB 120155
5.118 130.000 6.693 170.000 0.1969 5.000 AXK 130170 AXK 130170 AXK 130170 NTB 130170
***This chart is intended as a reference only. The users should consult with the listed manufacturers’ catalogs to establish dimensional interchangeability. NPB cannot be held responsible for any errors contained herein.



THRUST WASHERS
DIMENSIONS INTERCHANGE
d D S INA
AS		 SKF
AS		 FAG
AS		 IKO
AS		 Torrington
FTRA		 Torrington
TRA
inch mm inch mm inch mm
0.250 6.350 0.687 17.450 .030-.032 .76-.81           TRA-411
0.312 7.925 0.750 19.050 .030-.032 .76-.81           TRA-512
0.375 9.525 0.812 20.625 .030-.032 .76-.81           TRA-613
0.394 10.000 0.945 24.000 0.0394 1 AS 1024 AS 1024 AS 1024 AS 1024 FTRA-1024
0.472 12.000 1.024 26.000 0.0394 1 AS 1226 AS 1226 AS 1226 AS 1226 FTRA-1226
0.500 12.700 0.937 23.800 .030-.032 .76-.81           TRA-815
0.562 14.275 1.000 25.400 .030-.032 .76-.81           TRA-916
0.591 15.000 1.102 28.000 0.0394 1 AS 1528 AS 1528 AS 1528 AS 1528 FTRA-1528
0.625 15.875 1.125 28.575 .030-.032 .76-.81           TRA-1018
0.630 16.000 1.142 29.000 0.0394 1       AS 1629
0.669 17.000 1.181 30.000 0.0394 1 AS 1730 AS 1730 AS 1730 AS 1730 FTRA-1730
0.709 18.000 1.220 31.000 0.0394 1       AS 1831
0.750 19.050 1.250 31.750 .030-.032 .76-.81           TRA-1220
0.787 20.000 1.378 35.000 0.0394 1 AS 2035 AS 2035 AS 2035 AS 2035 FTRA-2035
0.875 22.225 1.437 36.500 .030-.032 .76-.81           TRA-1423
0.984 25.000 1.654 42.000 0.0394 1 AS 2542 AS 2542 AS 2542 AS 2542 FTRA-2542
1.000 25.400 1.562 39.675 .030-.032 .76-.81           TRA-1625
1.125 28.575 1.750 44.450 .030-.032 .76-.81           TRA-1828
1.181 30.000 1.850 47.000 0.0394 1 AS 3047 AS 3047 AS 3047 AS 3047 FTRA-3047
1.125 28.575 1.937 49.200 .030-.032 .76-.81           TRA-2031
1.375 34.925 2.062 52.375 .030-.032 .76-.81           TRA-2233
1.378 35.000 2.047 52.000 0.0394 1 AS 3552 AS 3552 AS 3552 AS 3552 FTRA-3552
1.500 38.100 2.187 55.550 .030-.032 .76-.81           TRA-2435
1.575 40.000 1.575 40.000 0.0394 1 AS 4060 AS 4060 AS 4060 AS 4060 FTRA-4060
1.750 44.450 2.500 63.500 .030-.032 .76-.81           TRA-2840
1.772 45.000 2.559 65.000 0.03934 1 AS 4565 AS 4565 AS 4565 AS 4565 FTRA-4565
1.969 50.000 2.756 70.000 0.0394 1 AS 5070 AS 5070 AS 5070 AS 5070 FTRA-5070
2.000 50.800 2.750 69.850 .030-.032 .76-.81           TRA-3244
2.125 53.975 2.875 73.025 .030-.032 .76-.81           TRA-3446
2.165 55.000 3.071 78.000 0.0394 1 AS 5578 AS 5578 AS 5578 AS 5578 FTRA-5578
2.250 57.150 3.000 76.200 .030-.032 .76-.81           TRA-3648
2.500 63.500 3.250 82.550 .030-.032 .76-.81           TRA-4052
2.362 60.000 3.346 85.000 0.0394 1 AS 6085 AS 6085 AS 6085 AS 6085 FTRA-6085
2.559 65.000 3.543 90.000 0.0394 1 AS 6590 AS 6590 AS 6590 AS 6590 FTRA-6590
2.750 69.850 3.625 92.075 .030-.032 .76-.81           TRA-4458
2.756 70.000 3.740 95.000 0.0394 1 AS 7095 AS 7095 AS 7090 AS 7095 FTRA-7095
2.953 75.000 3.937 100.000 0.0394 1 AS 75100 AS 75100 AS 75100 AS 75100 FTRA-75100
3.000 76.200 3.750 95.250 .030-.032 .76-.81           TRA-4860
3.150 80.000 4.134 105.000 0.0394 1 AS 80105 AS 80105 AS 80105 AS 80105 FTRA-80105
3.250 82.550 4.125 104.775 .030-.032 .76-.81           TRA-5266
3.346 85.000 4.331 110.000 0.0394 1 AS 85110 AS 85110 AS 85110 AS 85110 FTRA-85110
3.543 90.000 4.724 120.000 0.0394 1 AS 90120 AS 90120 AS 90120 AS 90120 FTRA-90120
3.750 95.250 4.625 117.475 .030-.032 .76-.81           TRA-6074
3.937 100.000 5.315 135.000 0.0394 1 AS 100135 AS 100135 AS 100135 AS 100135 FTRA-100135
4.125 104.775 5.062 128.575 .030-.032 .76-.81           TRA-6681
***This chart is intended as a reference only. The users should consult with the listed manufacturers’ catalogs to establish dimensional interchangeability. NPB cannot be held responsible for any errors contained herein.


KOYONTA-1625轴承我司目前有部分库存，您可致电我司咨询销售人员关于轴承NTA-1625的图纸、轴承NTA-1625价格或同型号其他品牌替换等资料！我司与KOYO厂家常年批量订购NTA-1625，以保证NTA-1625轴承质量正宗，价格最优。订购原装KOYO NTA-1625轴承请拨打：0532-83735255、13061287818
