KOYO满装滚针轴承 BH-2012 内径31.75mm外径41.275mm宽度19.05mm

KOYO满装滚针轴承 BH-2012 内径31.75mm外径41.275mm宽度19.05mm

  • 型号：
  • BH-2012
  • 品牌：
  • KOYO轴承
  • 系列：
  • 内径d：
  • 31.75mm mm
  • 外径D：
  • 41.275mm mm
  • 厚度B：
  • 19.05mm mm
KOYO满装滚针轴承 BH-2012 内径31.75mm外径41.275mm宽度19.05mm参数

参数信息

品牌
KOYO
型号
BH-2012
产地
美国
厚度（mm）
19.05mm
颜色分类
银色
是否标准件
是
滚动体列数
单列
是否进口
是
滚动轴承座材质：
轴承钢
内径（mm）
其他

图文详情

订货号 BH-2012 品牌 KOYO 型号 BH-2012
旧型号 BH-2012 内径 31.750（mm） 外径 41.275（mm）
厚度 19.050（mm） 保持架及其材料 V满装滚动体（无保持架） 重量 1（kg）
用途 通用 样品或现货 现货 滚动体类型 滚针
滚动体列数 单列 滚道类型 直线滚道 使用特性 高温
轴承材质 高碳铬轴承钢（全淬透型)(GCr15) 轴承材料 HP 角度 15度
密封盖 无密封 滚动体 钢球 精度等级 P0
组配方式 SU/G 主要下游平台 亚马逊 主要销售地区 南美
有可授权的自有品牌 否 是否跨境货源 是 货号 BH-2012
工作原理 滚动 类型 滚针轴承 加工定制 是

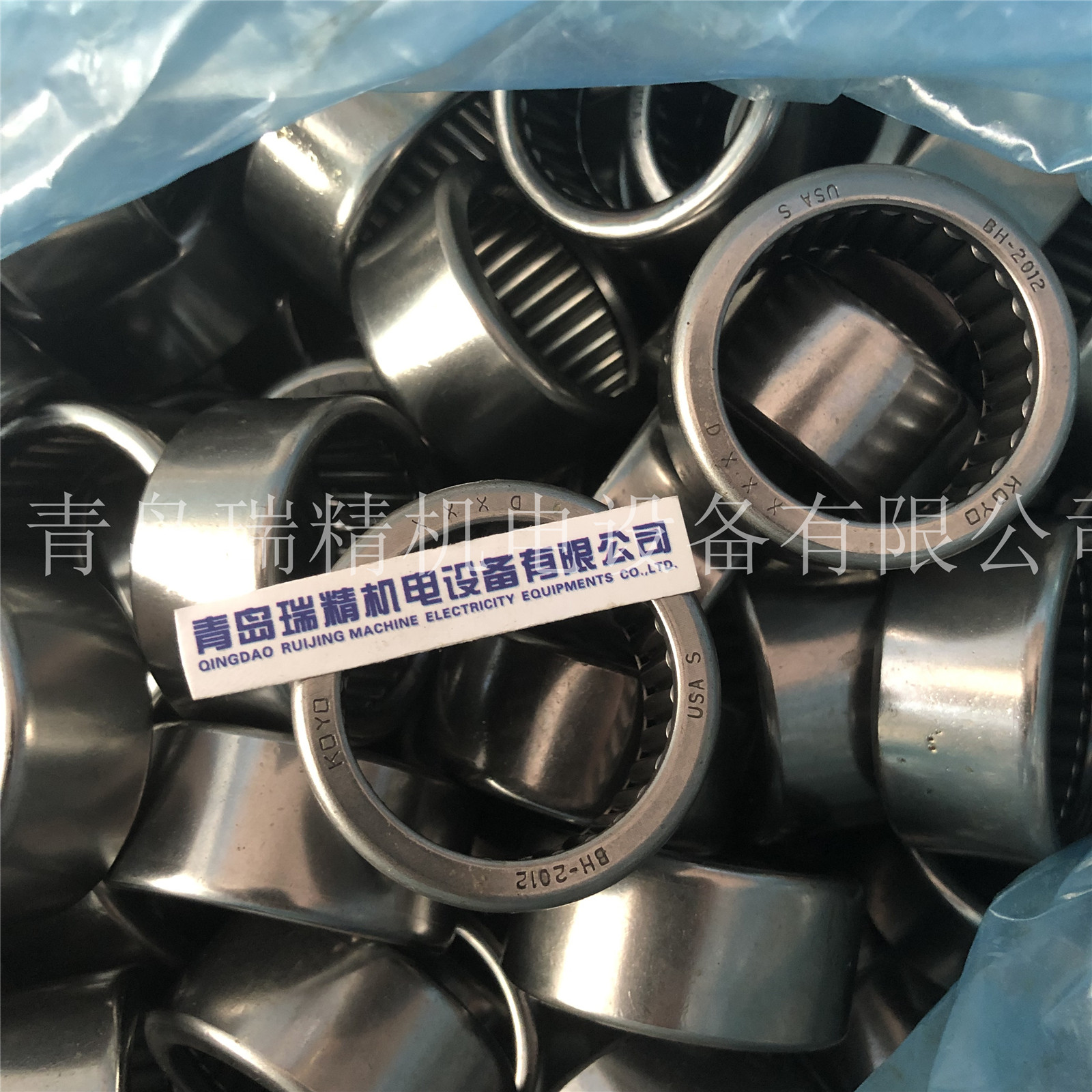

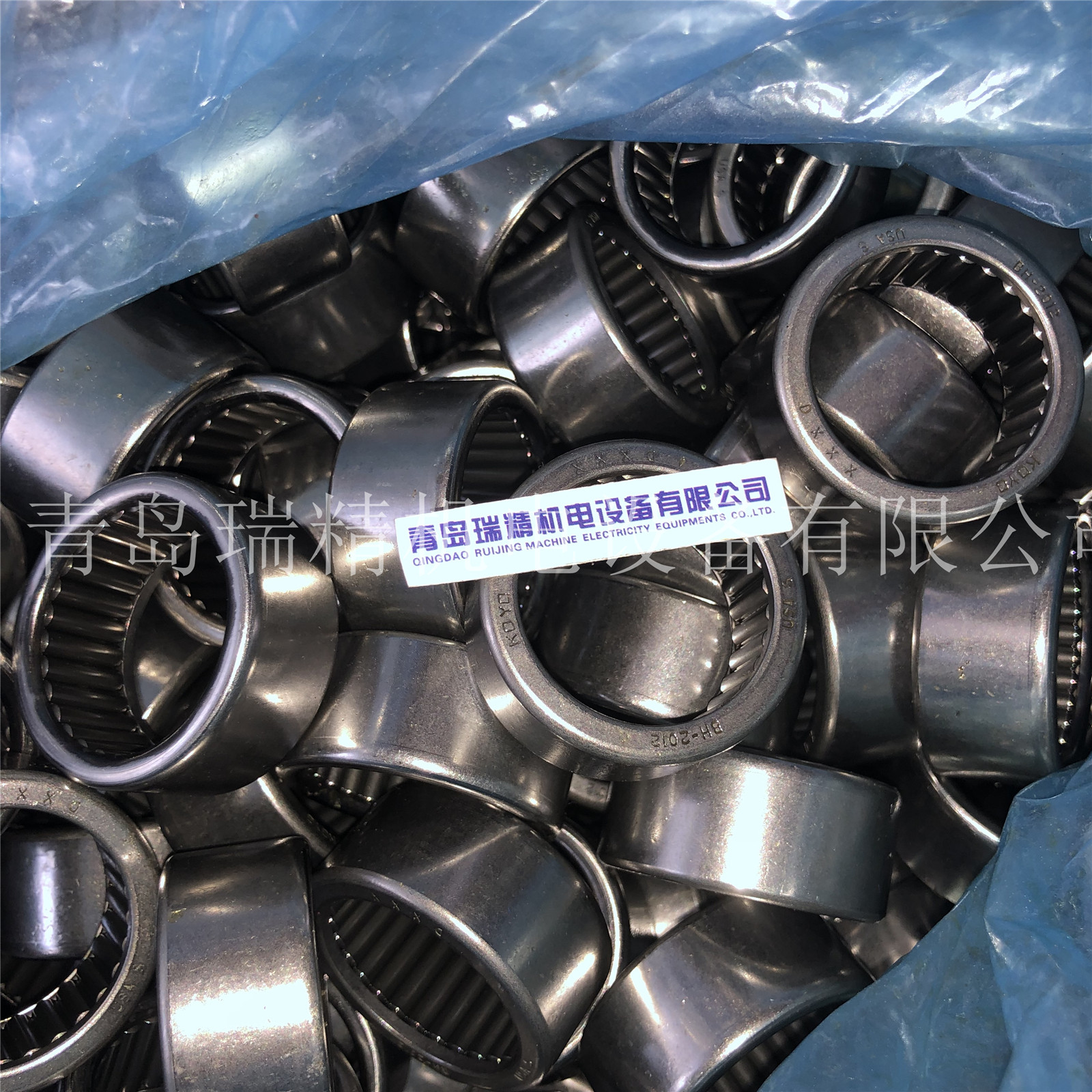

 KOYO滚针轴承 BH-2012青岛瑞精机电现货供应

KOYO滚针轴承 BH-2012轴承尺寸|轴承规格参数|轴承报价


内径：31.750mm
外径：41.275mm
宽度：19.050mm
型号： 轴承BH-2012

类型：滚针轴承

品牌： KOYO

备注：滚针轴承


Item #Bore
MMBore
InchesO.D.
MMO.D.
InchesWidth
MMWidth
Inches
B-24 Koyo 3.175 0.125 6.35 0.25 6.35 0.25
B 2 1/2-4 Koyo 3.970 0.1563 7.142 0.2812 6.35 0.25
B 2 1/2-5 Koyo 3.970 0.1563 7.142 0.2812 7.925 0.312
B-34 Koyo 4.763 0.1875 8.733 0.3438 6.35 0.25
B-36 Koyo 4.763 0.1875 8.733 0.3438 9.525 0.375
B-44 Koyo 6.35 0.25 11.113 0.4375 6.35 0.25
B-45 Koyo 6.35 0.25 11.113 0.4375 7.925 0.312
B-47 Koyo 6.35 0.25 11.113 0.4375 11.113 0.4375
B-55 Koyo 7.938 0.3125 12.7 0.5 7.925 0.312
B-55-OH Koyo 7.938 0.3125 12.7 0.5 7.925 0.312
B-56 Koyo 7.938 0.3125 12.7 0.5 9.525 0.375
B-57 Koyo 7.938 0.3125 12.7 0.5 11.113 0.4375
B-59 Koyo 7.938 0.3125 12.7 0.5 14.288 0.5625
BH-57 Koyo 7.938 0.3125 14.288 0.5625 11.113 0.4375
B-65 Koyo 9.525 0.375 14.288 0.5625 7.925 0.312
B-66-OH Koyo 9.525 0.375 14.288 0.5625 9.525 0.375
B-66 Koyo 9.525 0.375 14.288 0.5625 9.525 0.375
B-67 Koyo 9.525 0.375 14.288 0.5625 11.113 0.4375
B-68-OH Koyo 9.525 0.375 14.288 0.5625 12.70 0.5
B-68 Koyo 9.525 0.375 14.288 0.5625 12.7 0.5
B-610 Koyo 9.525 0.375 14.288 0.5625 15.875 0.625
BH-68 Koyo 9.525 0.375 14.288 0.5625 12.70 0.5
B-76 Koyo 11.113 0.4375 15.875 0.625 9.525 0.375
B-78 Koyo 11.113 0.4375 15.875 0.625 12.70 0.5
B-710 Koyo 11.113 0.4375 15.875 0.625 15.875 0.625
BH-78 Koyo 11.113 0.4375 15.875 0.625 12.70 0.5
B-85 Koyo 12.700 0.5 17.463 0.6875 7.925 0.312
B-86 Koyo 12.7 0.5 17.463 0.6875 9.525 0.375
B-87 Koyo 12.70 0.5 17.463 0.6875 11.113 0.4375
B-88 Koyo 12.7 0.5 17.463 0.6875 12.7 0.5
B-810 Koyo 12.700 0.5 17.463 0.6875 15.875 0.625
B-812 Koyo 12.7 0.5 17.463 0.6875 19.05 0.75
B-812-OH Koyo 12.70 0.5 17.463 0.6875 19.05 0.75
BH-87 Koyo 12.70 0.5 19.050 0.75 11.113 0.4375
BH-88 Koyo 12.70 0.5 19.05 0.75 12.70 0.5
BH-810 Koyo 12.70 0.5 19.05 0.75 15.875 0.625
BH-812 Koyo 12.70 0.5 19.05 0.75 19.05 0.75
BH-812-OH Koyo 12.70 0.5 19.05 0.75 19.05 0.75
B-95 Koyo 14.288 0.5625 19.050 0.75 7.925 0.312
B-96 Koyo 14.288 0.5625 19.050 0.75 9.525 0.375
B-97 Koyo 14.228 0.5602 19.050 0.75 11.113 0.4375
B-98 Koyo 14.288 0.5625 19.050 0.75 12.70 0.5
B-910 Koyo 14.288 0.5625 19.05 0.75 15.875 0.625
B-912 Koyo 14.288 0.5625 19.050 0.75 15.875 0.625
BH-912 Koyo 14.288 0.5625 19.05 0.75 19.05 0.75
B-105 Koyo 15.875 0.625 20.638 0.8125 7.925 0.312
B-105-OH Koyo 15.875 0.625 20.638 0.8125 0.3125 0.0123
B-107 Koyo 15.875 0.625 20.638 0.8125 11.113 0.4375
B-108 Koyo 15.875 0.625 20.638 0.8125 12.7 0.5
B-1010 Koyo 15.875 0.625 20.638 0.8125 15.875 0.625
B-1012 Koyo 15.875 0.625 20.638 0.8125 19.05 0.75
B-1012-OH Koyo 15.875 0.625 20.638 0.8125 19.05 0.75
BH-108 Koyo 15.875 0.625 22.212 0.8745 12.70 0.5
BH-1010 Koyo 15.875 0.625 22.212 0.8745 15.875 0.625
BH-1012 Koyo 15.875 0.625 22.212 0.8745 19.05 0.75
BH-1016 Koyo 15.875 0.625 22.212 0.8745 25.40 1
B-116 Koyo 17.463 0.6875 22.212 0.8745 9.525 0.375
B-118 Koyo 17.463 0.6875 22.212 0.8745 12.70 0.5
B-1110 Koyo 17.463 0.6875 22.212 0.8745 15.88 0.6252
B-1112 Koyo 17.463 0.6875 22.212 0.8745 19.050 0.75
BH-117 Koyo 17.463 0.6875 23.813 0.9375 11.113 0.4375
BH-1110 Koyo 17.463 0.6875 22.212 0.8745 15.875 0.625
BH-1112 Koyo 17.463 0.6875 23.813 0.9375 19.05 0.75
B-126 Koyo 19.05 0.75 25.4 1 9.525 0.375
B-128 Koyo 19.05 0.75 25.4 1 12.7 0.5
B-1210 Koyo 19.05 0.75 25.4 1 15.875 0.625
B-1212 Koyo 19.05 0.75 25.400 1 19.050 0.75
B-1212-OH Koyo 19.05 0.75 25.40 1 19.05 0.75
B-136 Koyo 20.638 0.8125 26.988 1.0625 9.525 0.375
B-138 Koyo 20.638 0.8125 26.988 1.0625 12.70 0.5
B-1314 Koyo 20.638 0.8125 26.988 1.0625 22.225 0.875
B-1316 Koyo 20.638 0.8125 26.988 1.0625 25.40 1
BH-1312 Koyo 20.638 0.8125 28.575 1.125 19.05 0.75
B-146 Koyo 22.225 0.875 28.575 1.125 9.525 0.375
B-148 Koyo 22.225 0.875 28.575 1.125 12.7 0.5
B-1412 Koyo 22.225 0.875 28.575 1.125 19.05 0.75
B-1412-OH Koyo 22.225 0.875 28.575 1.125 19.05 0.75
B-1416 Koyo 22.225 0.875 28.575 1.125 25.40 1
B-1416-OH Koyo 22.225 0.875 30.163 1.1875 25.40 1
B-1418 Koyo 22.225 0.875 28.575 1.125 28.575 1.125
BH-1410 Koyo 22.225 0.875 30.163 1.1875 15.875 0.625
BH-1412 Koyo 22.225 0.875 30.163 1.1875 19.05 0.75
BH-1416 Koyo 22.225 0.875 30.163 1.1875 25.40 1
B-1516 Koyo 23.813 0.9375 30.163 1.1875 25.40 1
B-166 Koyo 25.400 1 31.750 1.25 9.525 0.375
B-167 Koyo 25.400 1 31.750 1.25 11.113 0.4375
B-168 Koyo 25.400 1 31.750 1.25 12.70 0.5
B-168-OH Koyo 25.40 1 31.75 1.25 12.70 0.5
B-1610 KOYO 25.40 1 31.750 1.25 25.40 1
B-1612 Koyo 25.400 1 31.750 1.25 19.05 0.75
B-1612-OH Koyo 25.40 1 31.75 1.25 19.05 0.75
B-1616 Koyo 25.40 1 31.750 1.25 25.40 1
B-1616-OH Koyo 25.40 1 31.75 1.25 25.40 1
BH-168 Koyo 25.40 1 33.338 1.3125 12.70 0.5
BH-1610 Koyo 25.40 1 33.338 1.3125 15.875 0.625
BH-1612 Koyo 25.400 1 33.338 1.3125 19.05 0.75
BH-1614 Koyo 25.400 1 33.338 1.3125 22.225 0.875
BH-1616 Koyo 25.400 1 33.338 1.3125 25.40 1
BH-1616-OH Koyo 25.400 1 33.338 1.3125 25.40 1
BH-1620 Koyo 25.40 1 33.338 1.3125 31.75 1.25
BH-1624 Koyo 25.400 1 33.338 1.3125 38.10 1.5
BH-1624-OH Koyo 25.400 1 33.338 1.3125 38.10 1.5
B-1710 Koyo 26.988 1.0625 33.338 1.3125 15.875 0.625
B-186 Koyo 28.575 1.125 34.925 1.375 9.525 0.375
B-188 Koyo 28.575 1.125 34.925 1.375 12.70 0.5
B-188-OH Koyo 28.575 1.125 34.925 1.375 12.70 0.5
B-1812 Koyo 28.575 1.125 34.925 1.375 19.05 0.75
B-1816 Koyo 28.575 1.125 34.925 1.375 25.40 1
BH-1812 Koyo 28.575 1.125 34.925 1.375 19.05 0.75
BH-1816 Koyo 28.575 1.125 34.925 1.375 25.40 1
BH-1816-OH Koyo 28.575 1.125 34.925 1.375 25.40 1
BH-1820 Koyo 28.575 1.125 38.100 1.5 31.75 1.25
B-1916 Koyo 30.163 1.1875 38.100 1.5 25.40 1
B-208 Koyo 31.750 1.25 38.100 1.5 12.70 0.5
B-2010 Koyo 31.750 1.25 38.100 1.5 15.875 0.625
B-2012 Koyo 31.750 1.25 38.100 1.5 19.05 0.75
B-2012-OH Koyo 31.75 1.25 41.275 1.625 19.05 0.75
B-2016 Koyo 31.750 1.25 38.100 1.5 25.40 1
B-2020 Koyo 31.750 1.25 38.100 1.5 31.75 1.25
B-2020-OH Koyo 31.75 1.25 38.100 1.5 31.75 1.25
BH-208 Koyo 31.750 1.25 41.275 1.625 12.70 0.5
BH-2012 Koyo 31.750 1.25 41.275 1.625 19.05 0.75
BH-2016-D Koyo 31.750 1.25 41.275 1.625 25.40 1
BH-2020 Koyo 31.750 1.25 41.275 1.625 31.75 1.25
B-218 Koyo 33.338 1.3125 41.275 1.625 12.70 0.5
B-2110 Koyo 33.338 1.3125 41.275 1.625 15.875 0.625
B-228 Koyo 34.925 1.375 41.275 1.625 12.70 0.5
B-2212 Koyo 34.925 1.375 41.275 1.625 19.05 0.75
B-2216 Koyo 34.925 1.375 41.275 1.625 25.40 1
B-2216-OH Koyo 34.925 1.375 41.275 1.625 25.40 1
B-2220-OH Koyo 34.925 1.375 41.275 1.625 31.75 1.25
B-2220 Koyo 34.925 1.375 41.275 1.625 31.75 1.25
BH-2212 Koyo 34.925 1.375 44.450 1.75 19.05 0.75
BH-2216 Koyo 34.925 1.375 44.450 1.75 25.40 1
BH-2216-OH Koyo 34.925 1.375 44.450 1.75 25.40 1
BH-2220-D Koyo 34.925 1.375 44.450 1.75 31.75 1.25
B-248 Koyo 38.100 1.5 47.625 1.875 12.70 0.5
B-2410 Koyo 38.100 1.5 47.625 1.875 15.875 0.625
B-2412 Koyo 38.100 1.5 47.625 1.875 22.23 0.8752
B-2414 Koyo 38.100 1.5 47.625 1.875 22.225 0.875
B-2416 Koyo 38.100 1.5 47.625 1.875 25.4 1
B-2416-OH Koyo 38.10 1.5 47.625 1.875 47.62 1.8748
B-2420 Koyo 38.100 1.5 47.625 1.875 31.75 1.25
B-2420-OH Koyo 38.100 1.5 47.62 1.8748 31.75 1.25
B-268 Koyo 41.275 1.625 50.800 2 12.70 0.5
B-2610 Koyo 41.275 1.625 50.800 2 15.875 0.625
B-2616 Koyo 41.275 1.625 50.800 2 25.4 1
B-2620 Koyo 41.275 1.625 50.800 2 31.75 1.25
B-2812 Koyo 44.450 1.75 53.975 2.125 19.05 0.75
B-2816 Koyo 44.450 1.75 53.975 2.125 25.40 1
B-2816-OH Koyo 44.45 1.75 53.975 2.125 25.40 1
B-2820 Koyo 44.450 1.75 53.975 2.125 31.75 1.25
B-2824 Koyo 44.450 1.75 53.975 2.125 38.10 1.5
B-2824-OH Koyo 44.45 1.75 53.975 2.125 38.10 1.5
B-308 Koyo 47.625 1.875 57.150 2.25 12.70 0.5
B-3012 Koyo 47.625 1.875 57.150 2.25 19.05 0.75
B-3016 Koyo 47.625 1.875 57.15 2.25 25.40 1
B-3016-OH Koyo 47.625 1.875 57.15 2.25 25.40 1
B-328 Koyo 50.800 2 60.325 2.375 12.70 0.5
B-3214 Koyo 50.800 2 60.325 2.375 22.225 0.875
B-3216 Koyo 50.800 2 60.325 2.375 25.40 1
B-3220 Koyo 50.800 2 60.325 2.375 38.10 1.5
B-3228 Koyo 50.800 2 60.325 2.375 44.45 1.75
BH-3312 Koyo 52.388 2.0625 64.292 2.5312 25.40 1
BH-3316 Koyo 52.388 2.0625 64.292 2.5312 25.40 1
B-348 Koyo 53.975 2.125 63.500 2.5 12.70 0.5
B-3412 Koyo 53.975 2.125 63.500 2.5 19.05 0.75
B-3416 Koyo 53.975 2.125 63.500 2.5 25.40 1
B-3424-D Koyo 53.975 2.125 63.500 2.5 38.10 1.5
B-3424-DOH Koyo 53.975 2.125 63.500 2.5 38.10 1.5
B-3612 Koyo 57.150 2.25 66.675 2.625 19.05 0.75
B-3620 Koyo 57.150 2.25 66.675 2.625 31.75 1.25
B-3624 Koyo 57.150 2.25 66.675 2.625 38.10 1.5
B-4216 Koyo 66.675 2.625 76.200 3 25.40 1
B-4410-D Koyo 69.850 2.75 79.375 3.125 15.875 0.625
B-4420-D Koyo 69.850 2.75 79.375 3.125 31.75 1.25
B-4416 Koyo 69.850 2.75 79.375 3.125 25.40 1
B-4416-OH Koyo 69.850 2.75 79.375 3.125 25.40 1
B-5612-D Koyo 88.900 3.5 101.600 4 19.05 0.75
B-8812-D Koyo 139.700 5.5 152.400 6 19.05 0.75




KOYOBH-2012轴承我司目前有部分库存，您可致电我司咨询销售人员关于轴承BH-2012的图纸、轴承BH-2012价格或同型号其他品牌替换等资料！我司与KOYO厂家常年批量订购BH-2012，以保证BH-2012轴承质量正宗，价格最优。订购原装KOYO BH-2012轴承请拨打：0532-83735255、13061287818
热销轴承型号：上一篇：KOYO闭式滚针轴承 M-12121 内径19.05mm外径25.4mm厚度19.05mm KOYO NU234轴承 TIMKEN G1108KRR轴承 INA PAKY50轴承 SKF 7328B轴承 IKO TLAM2520轴承 NTN 22322B轴承 INA SD14×20×3轴承 NSK RLM2930轴承 NTN 7934DB轴承 下一篇：NSN航空备件编号 8110-271-0180 轴承型号R65ZWK811
KOYO满装滚针轴承 BH-2012 内径31.75mm外径41.275mm宽度19.05mm轴承图纸
