德国INA轴承NUTR15-A滚针滚轮轴承NUTR15A内径15mm外35mm厚度19mm

德国INA轴承NUTR15-A滚针滚轮轴承NUTR15A内径15mm外35mm厚度19mm

  • 型号：
  • NUTR15-A
  • 品牌：
  • INA轴承
  • 系列：
  • 内径d：
  • 15mm mm
  • 外径D：
  • 35mm mm
  • 厚度B：
  • 19mm mm
德国INA轴承NUTR15-A滚针滚轮轴承NUTR15A内径15mm外35mm厚度19mm参数

参数信息

品牌
INA
型号
NUTR15-A
厚度（mm）
19mm
颜色分类
银色
是否标准件
是
滚动体列数
单列
是否进口
是
滚动轴承座材质：
轴承钢
内径（mm）
15



图文详情

品牌 青岛瑞精 型号 NUTR15-A 旧型号 NUTR15A
内径 15（mm） 外径 35（mm） 厚度 19（mm）
重量 0.1（kg） 保持架及其材料 J钢板冲压 使用特性 高速
用途 通用 滚动体列数 单列 滚道类型 直线滚道
样品或现货 现货 轴承材质 高碳铬轴承钢（全淬透型)(GCr15) 滚动体类型 滚针
角度 15度 密封盖 双面密封 滚动体 钢球
类型 滚针滚轮轴承 是否提供加工定制 是 工作原理 滚动



 NUTR15-A滚针滚轮轴承NUTR15A

NUTR15-A滚针滚轮轴承NUTR15A轴承尺寸|轴承规格参数|轴承报价

内径：15mm
外径：35mm
宽度：19mm
型号：NUTR15-A滚针滚轮轴承NUTR15A

类型：NUTR15-A滚针滚轮轴承NUTR15A
品牌：NUTR15-A滚针滚轮轴承NUTR15A

备注：NUTR15-A滚针滚轮轴承NUTR15A

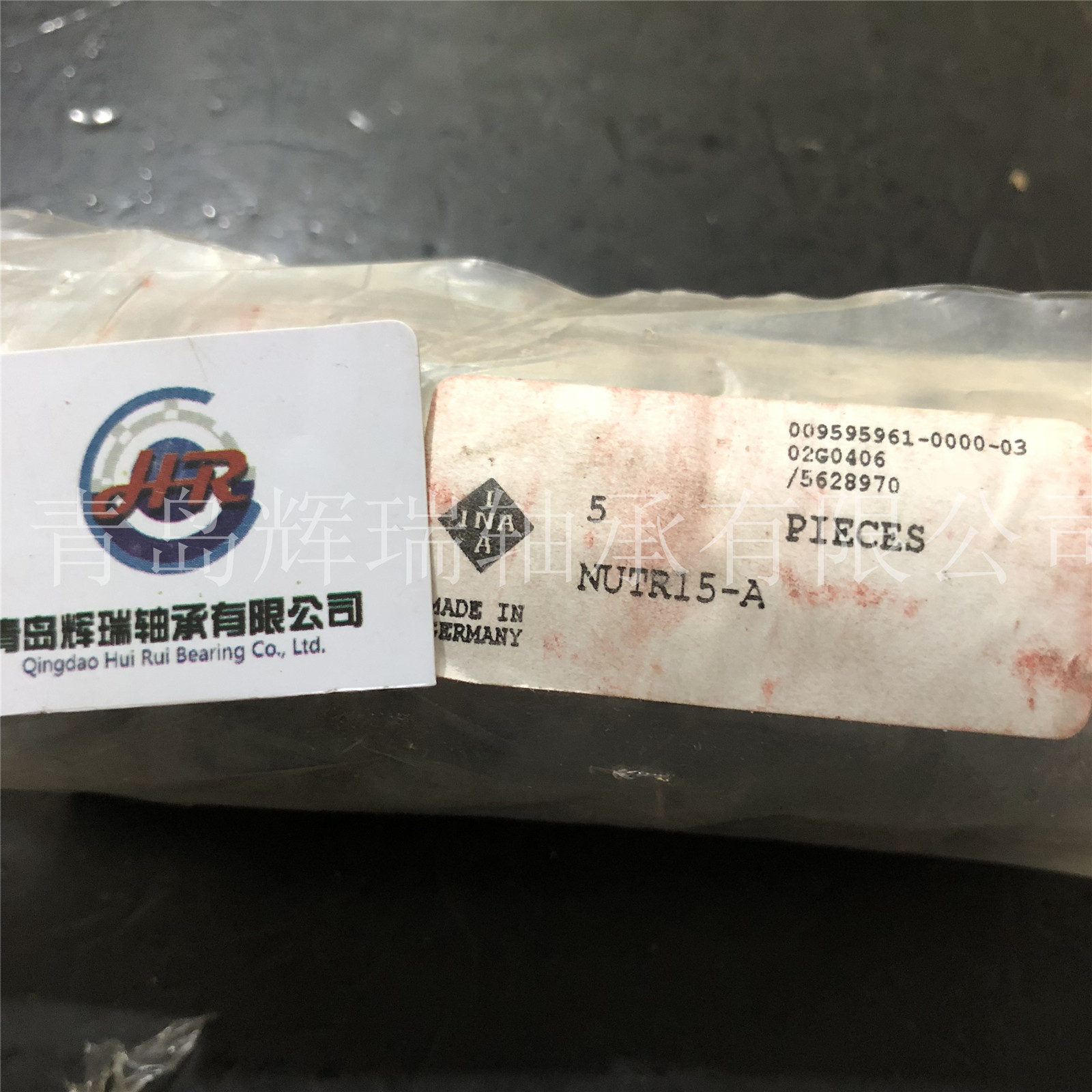

INA轴承NUTR15-A

INA轴承NUTR15-A (2)

INA轴承NUTR15-A (3)

№НаименованиеВнутр. диам. мм.Наруж. диам. мм.Ширина, мм.Масса, кг.
1 NATR 10 10,0 30,0 15,0 0,06
2 NATR 10 PPA 10,0 30,0 15,0 0,06
3 NATR 10 PPXA 10,0 30,0 15,0 0,06
4 NATR 10 X 10,0 30,0 15,0 0,06
5 NATR 12 12,0 32,0 15,0 0,07
6 NATR 12 PPA 12,0 32,0 15,0 0,06
7 NATR 12 PPXA 12,0 32,0 15,0 0,06
8 NATR 12 X 12,0 32,0 15,0 0,07
9 NATR 15 15,0 35,0 19,0 0,10
10 NATR 15 PPA 15,0 35,0 19,0 0,10
11 NATR 15 PPXA 15,0 35,0 19,0 0,10
12 NATR 15 X 15,0 35,0 19,0 0,10
13 NATR 17 17,0 40,0 21,0 0,14
14 NATR 17 PPA 17,0 40,0 21,0 0,14
15 NATR 17 PPXA 17,0 40,0 21,0 0,14
16 NATR 17 X 17,0 40,0 21,0 0,14
17 NATR 20 20,0 47,0 25,0 0,25
18 NATR 20 PPA 20,0 47,0 25,0 0,24
19 NATR 20 PPXA 20,0 47,0 25,0 0,24
20 NATR 25 25,0 52,0 25,0 0,28
21 NATR 25 PPA 25,0 52,0 25,0 0,28
22 NATR 25 PPXA 25,0 52,0 25,0 0,28
23 NATR 30 30,0 62,0 29,0 0,47
24 NATR 30 PPA 30,0 62,0 29,0 0,46
25 NATR 30 PPXA 30,0 62,0 29,0 0,46
26 NATR 35 PPA 35,0 72,0 29,0 0,60
27 NATR 35 PPXA 35,0 72,0 29,0 0,60
28 NATR 40 PPA 40,0 80,0 32,0 0,81
29 NATR 40 PPXA 40,0 80,0 32,0 0,81
30 NATR 5 5,0 16,0 12,0 0,01
31 NATR 5 PPA 5,0 16,0 12,0 0,01
32 NATR 5 PPXA 5,0 16,0 12,0 0,01
33 NATR 5 X 5,0 16,0 12,0 0,01
34 NATR 50 PPA 50,0 90,0 32,0 0,93
35 NATR 50 PPXA 50,0 90,0 32,0 0,96
36 NATR 6 6,0 19,0 12,0 0,02
37 NATR 6 PPA 6,0 19,0 12,0 0,02
38 NATR 6 PPXA 6,0 19,0 12,0 0,02
39 NATR 6 X 6,0 19,0 12,0 0,02
40 NATR 8 8,0 24,0 15,0 0,04
41 NATR 8 PPA 8,0 24,0 15,0 0,04
42 NATR 8 PPXA 8,0 24,0 15,0 0,04
43 NATR 8 X 8,0 24,0 15,0 0,04
44 NATV 10 10,0 30,0 15,0 0,07
45 NATV 10 PPA 10,0 30,0 15,0 0,06
46 NATV 10 PPXA 10,0 30,0 15,0 0,07
47 NATV 12 12,0 32,0 15,0 0,07
48 NATV 12 PPA 12,0 32,0 15,0 0,07
49 NATV 12 PPXA 12,0 32,0 15,0 0,07
50 NATV 15 15,0 35,0 19,0 0,11
51 NATV 15 PPA 15,0 35,0 19,0 0,10
52 NATV 15 PPXA 15,0 35,0 19,0 0,10
53 NATV 15 X 15,0 35,0 19,0 0,11
54 NATV 17 17,0 40,0 21,0 0,15
55 NATV 17 PPA 17,0 40,0 21,0 0,15
56 NATV 17 PPXA 17,0 40,0 21,0 0,15
57 NATV 20 20,0 47,0 25,0 0,25
58 NATV 20 PPA 20,0 47,0 25,0 0,24
59 NATV 20 PPXA 20,0 47,0 25,0 0,24
60 NATV 25 25,0 52,0 25,0 0,29
61 NATV 25 PPA 25,0 52,0 25,0 0,28
62 NATV 25 PPXA 25,0 52,0 25,0 0,29
63 NATV 30 30,0 62,0 29,0 0,48
64 NATV 30 PPA 30,0 62,0 29,0 0,47
65 NATV 30 PPXA 30,0 62,0 29,0 0,46
66 NATV 35 PPA 35,0 72,0 29,0 0,63
67 NATV 40 PPA 40,0 80,0 32,0 0,82
68 NATV 40 PPXA 40,0 80,0 32,0 0,82
69 NATV 5 5,0 16,0 12,0 0,02
70 NATV 5 PPA 5,0 16,0 12,0 0,01
71 NATV 5 PPXA 5,0 16,0 12,0 0,02
72 NATV 50 PPA 50,0 90,0 32,0 0,96
73 NATV 6 6,0 19,0 12,0 0,02
74 NATV 6 PPA 6,0 19,0 12,0 0,02
75 NATV 6 PPXA 6,0 19,0 12,0 0,02
76 NATV 8 8,0 24,0 15,0 0,04
77 NATV 8 PPA 8,0 24,0 15,0 0,04
78 NATV 8 PPXA 8,0 24,0 15,0 0,04
79 PWTR 15.2RS 15,0 35,0 19,0 0,10
80 PWTR 1542.2RS 15,0 42,0 19,0 0,16
81 PWTR 17.2RS 17,0 40,0 21,0 0,15
82 PWTR 1747.2RS 17,0 47,0 21,0 0,22
83 PWTR 20.2RS 20,0 47,0 25,0 0,25
84 PWTR 2052.2RS 20,0 52,0 25,0 0,32
85 PWTR 25.2RS 25,0 52,0 25,0 0,28
86 PWTR 2562.2RS 25,0 62,0 25,0 0,44
87 PWTR 30.2RS 30,0 62,0 29,0 0,47
88 PWTR 3072.2RS 30,0 72,0 29,0 0,70
89 PWTR 35.2RS 35,0 72,0 29,0 0,63
90 PWTR 3580.2RS 35,0 80,0 29,0 0,84
91 PWTR 40.2RS 40,0 80,0 32,0 0,82
92 PWTR 4090.2RS 40,0 90,0 32,0 1,13
93 PWTR 45.2RS 45,0 85,0 32,0 0,88
94 PWTR 45100.2RS 45,0 100,0 32,0 1,40
95 PWTR 50.2RS 50,0 90,0 32,0 0,95
96 PWTR 50110.2RS 50,0 110,0 32,0 1,69
97 NUTR 15 A 15,0 35,0 19,0 0,10
98 NUTR 15 X 15,0 35,0 19,0 0,10
99 NUTR 1542 A 15,0 42,0 19,0 0,16
100 NUTR 1542 X 15,0 42,0 19,0 0,16
101 NUTR 17 A 17,0 40,0 21,0 0,15
102 NUTR 17 X 17,0 40,0 21,0 0,15
103 NUTR 1747 A 17,0 47,0 21,0 0,22
104 NUTR 1747 X 17,0 47,0 21,0 0,22
105 NUTR 20 A 20,0 47,0 25,0 0,25
106 NUTR 20 X 20,0 47,0 25,0 0,25
107 NUTR 2052 A 20,0 52,0 25,0 0,32
108 NUTR 2052 X 20,0 52,0 25,0 0,32
109 NUTR 25 A 25,0 52,0 25,0 0,28
110 NUTR 25 X 25,0 52,0 25,0 0,28
111 NUTR 2562 A 25,0 62,0 25,0 0,45
112 NUTR 2562 X 25,0 62,0 25,0 0,45
113 NUTR 30 A 30,0 62,0 29,0 0,47
114 NUTR 30 X 30,0 62,0 29,0 0,47
115 NUTR 3072 A 30,0 72,0 29,0 0,70
116 NUTR 3072 X 30,0 72,0 29,0 0,70
117 NUTR 35 A 35,0 72,0 29,0 0,63
118 NUTR 35 X 35,0 72,0 29,0 0,63
119 NUTR 3580 A 35,0 80,0 29,0 0,84
120 NUTR 3580 X 35,0 80,0 29,0 0,84
121 NUTR 40 A 40,0 80,0 32,0 0,81
122 NUTR 40 X 40,0 80,0 32,0 0,81
123 NUTR 4090 A 40,0 90,0 32,0 1,13
124 NUTR 4090 X 40,0 90,0 32,0 1,13
125 NUTR 45 A 45,0 85,0 32,0 0,89
126 NUTR 45 X 45,0 85,0 32,0 0,89
127 NUTR 45100 A 45,0 100,0 32,0 1,38
128 NUTR 45100 X 45,0 100,0 32,0 1,40
129 NUTR 50 A 50,0 90,0 32,0 0,95
130 NUTR 50 X 50,0 90,0 32,0 0,95
131 NUTR 50110 A 50,0 110,0 32,0 1,69
132 NUTR 50110 X 50,0 110,0 32,0 1,69




INANUTR15-A轴承我司目前有部分库存，您可致电我司咨询销售人员关于轴承NUTR15-A的图纸、轴承NUTR15-A价格或同型号其他品牌替换等资料！我司与INA厂家常年批量订购NUTR15-A，以保证NUTR15-A轴承质量正宗，价格最优。订购原装INA NUTR15-A轴承请拨打：0532-83735255、13061287818
