| 订货号 | TAF243220-OG | 品牌 | IKO | 型号 | TAF243220-OG |
| 旧型号 | TAF243220-OG | 内径 | 24（mm） | 外径 | 32（mm） |
| 厚度 | 20（mm） | 保持架及其材料 | J钢板冲压 | 重量 | 1（kg） |
| 用途 | 通用 | 样品或现货 | 现货 | 滚动体类型 | 滚针 |
| 滚动体列数 | 单列 | 滚道类型 | 直线滚道 | 使用特性 | 高温 |
| 轴承材质 | 高温轴承钢 | 轴承材料 | HP | 角度 | 15度 |
| 密封盖 | 无密封 | 滚动体 | 钢球 | 精度等级 | P0 |
| 组配方式 | SU/G | 主要下游平台 | wish | 主要销售地区 | 中东 |
| 有可授权的自有品牌 | 否 | 是否跨境货源 | 是 | 货号 | TAF243220-OG |
| 是否提供加工定制 | 是 | 类型 | 滚针轴承 |

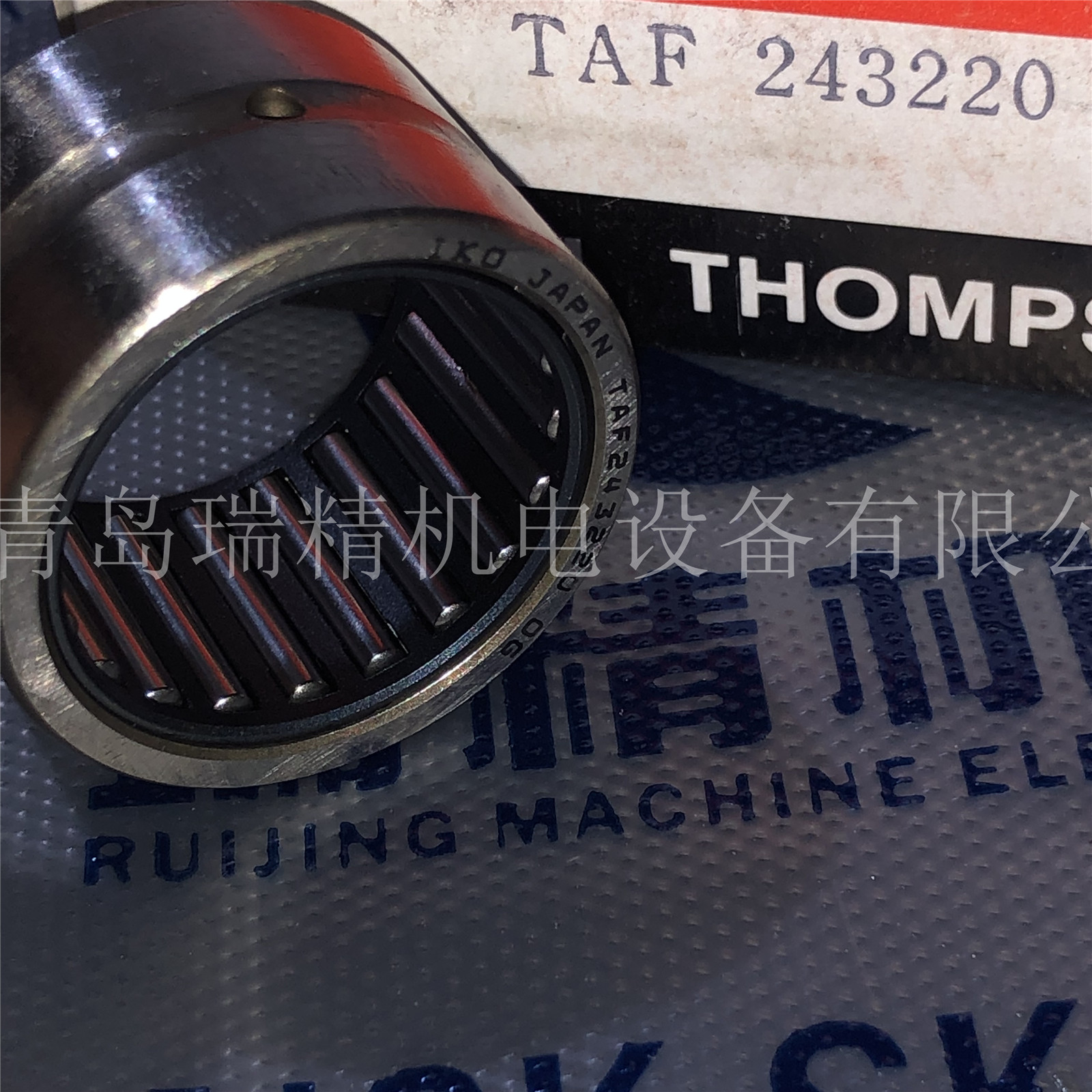

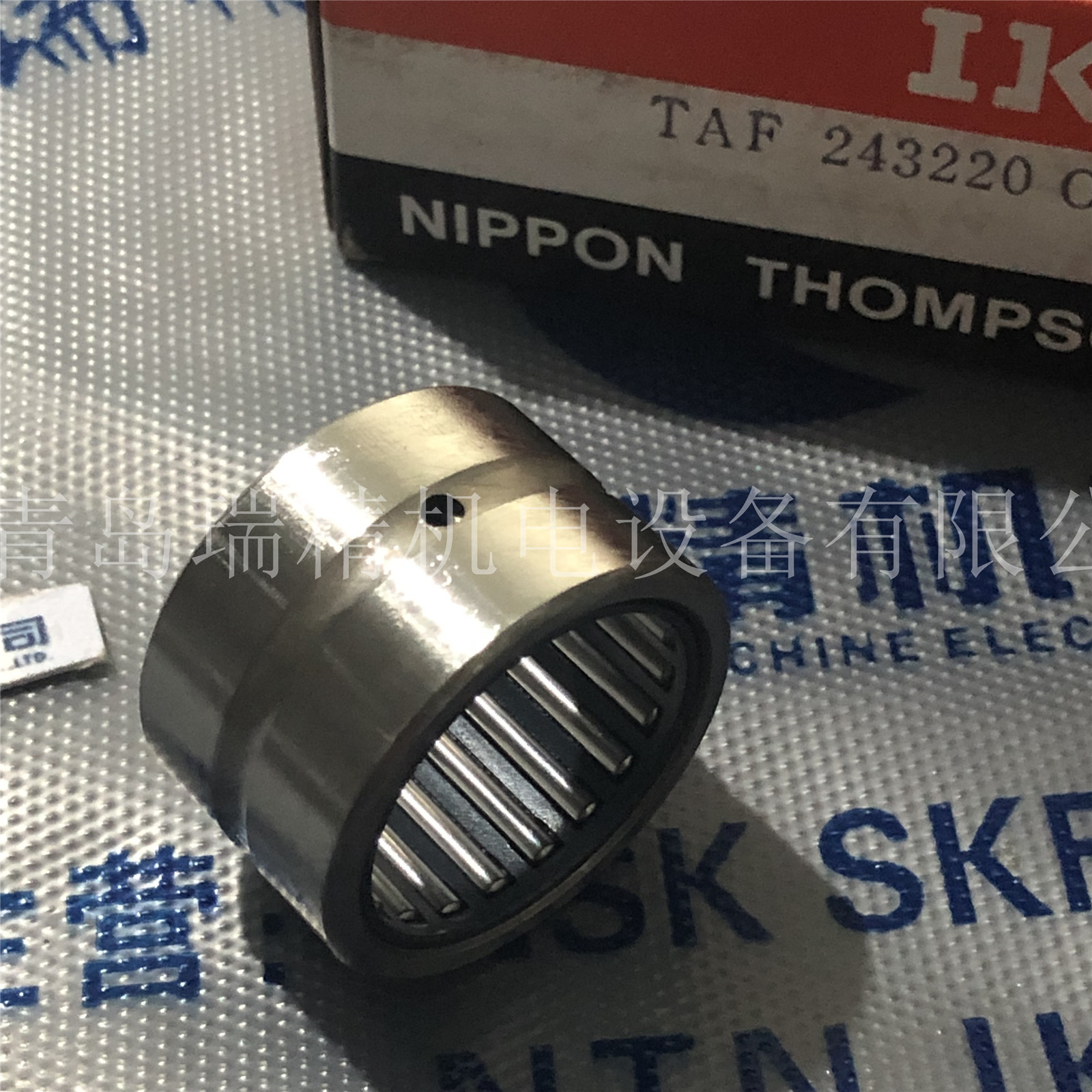

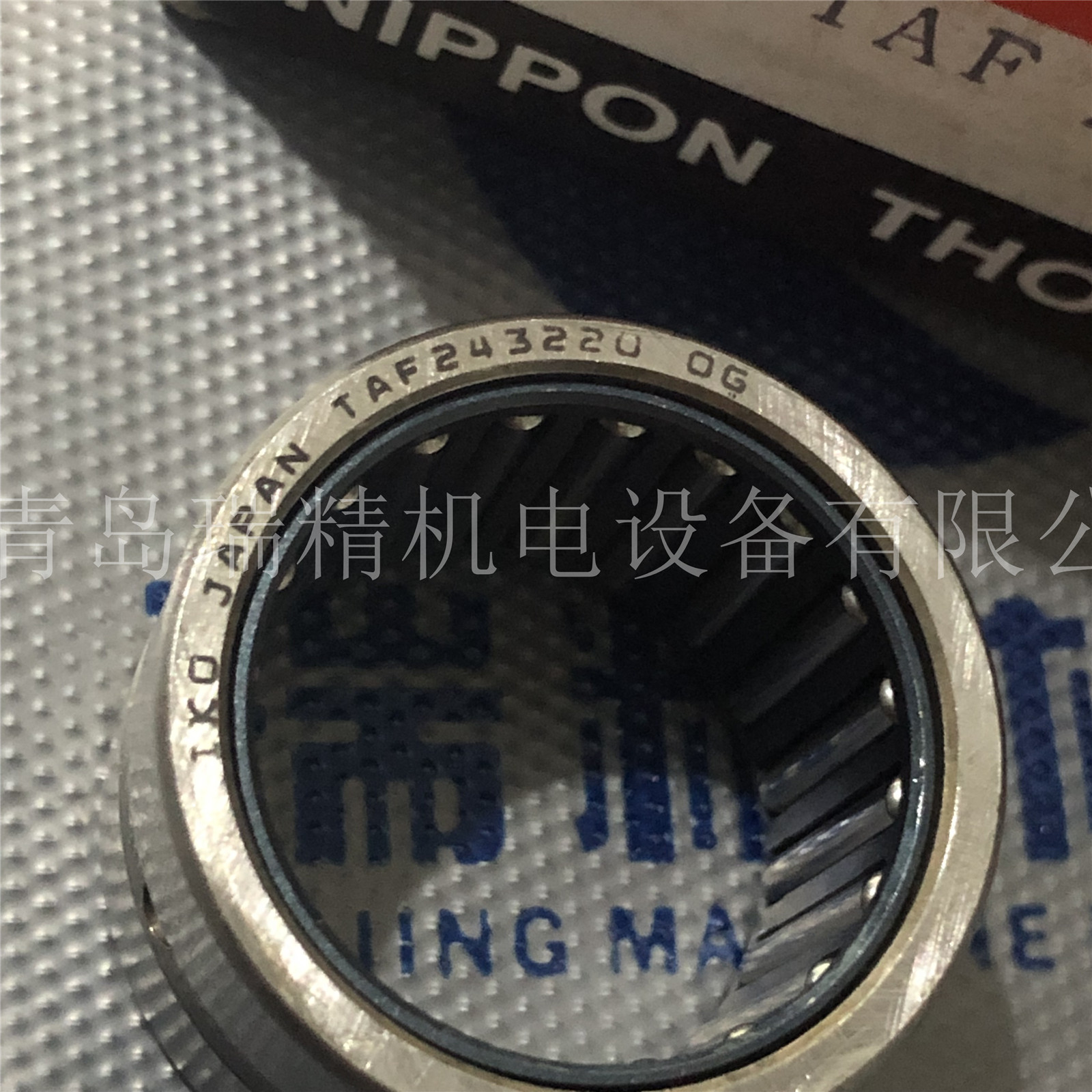

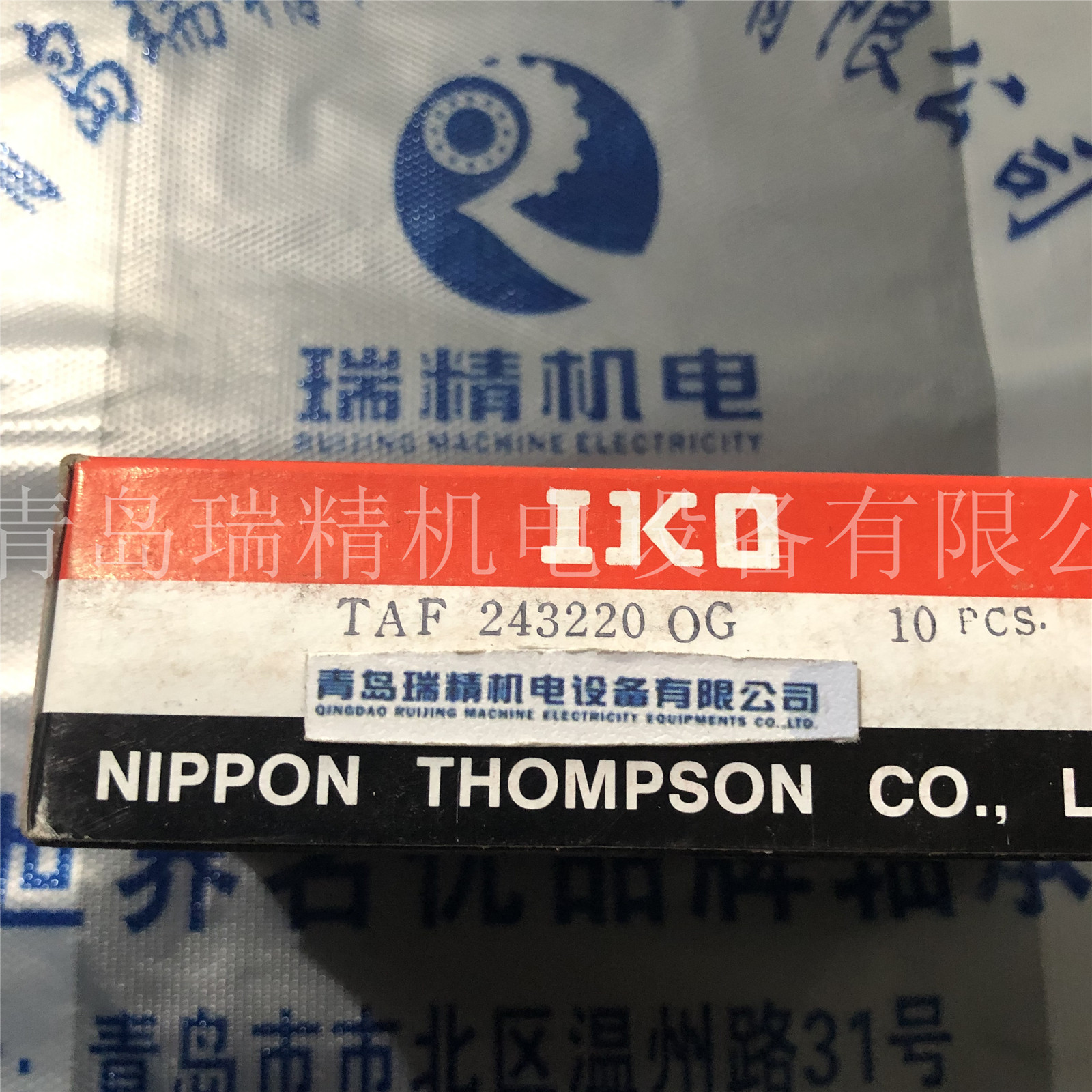

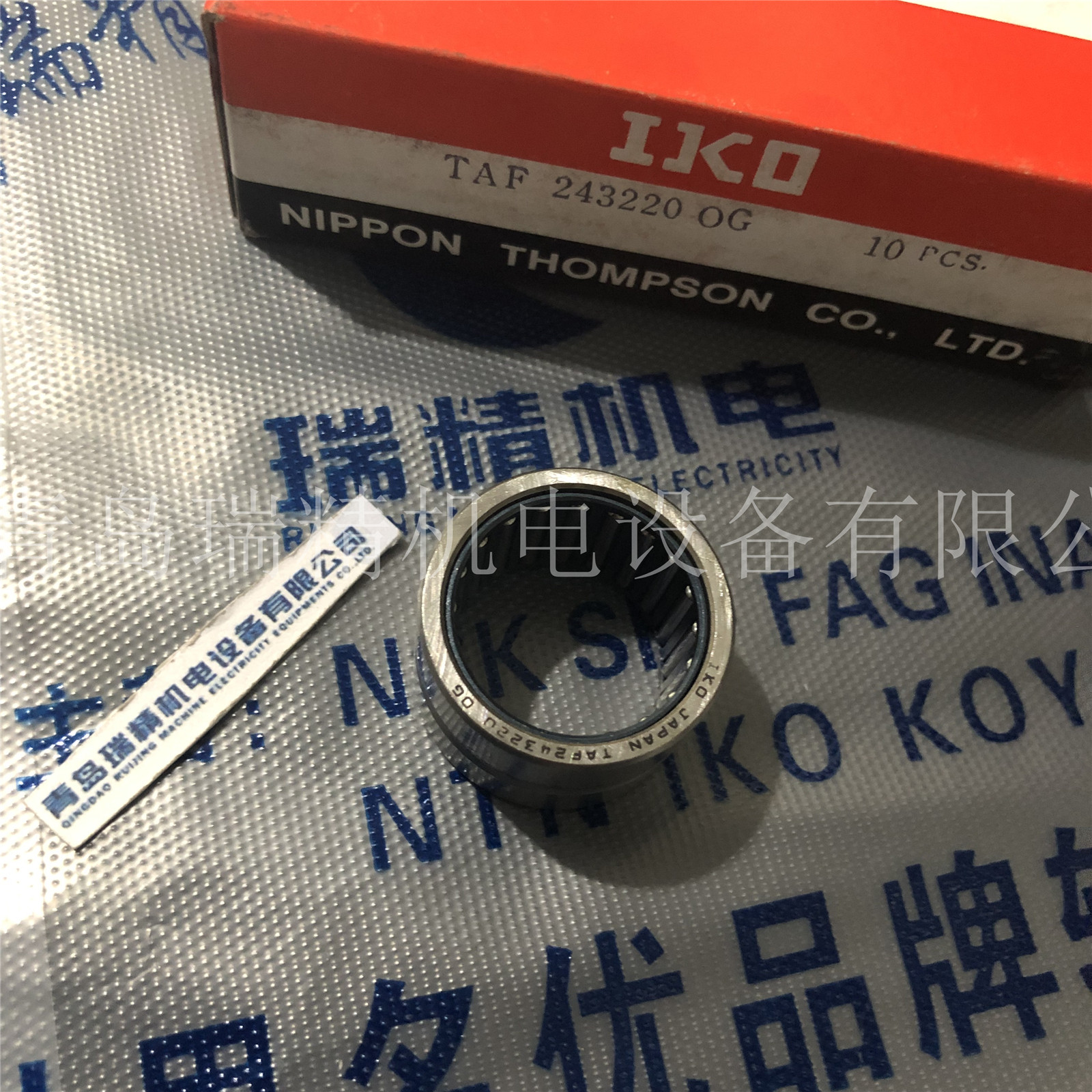

IKO滚针轴承TAF243220-OG青岛瑞精机电现货供应
IKO滚针轴承 TAF243220-OG轴承尺寸|轴承规格参数|轴承报价
内径：24mm
外径：32mm
宽度：20mm
型号：IKO轴承TAF 243220
类型：轴承
品牌：IKO
备注：滚针轴承
| INA | NADELLA | IKO | NTN | NSK | KOYO |
TORRINGTON (SKF) |
Dimension(mm) | ||
| Fw | D | C | |||||||
| NK5/10-TV | TAF51010 | NK5/10T2 | NK5/10-TN | 5 | 10 | 10 | |||
| NK5/12-TV | TAF51012 | NK5/12T2 | NK5/12-TN | 5 | 10 | 12 | |||
| NK6/10-TV | NK6/10T2 | NK6/10 | 6 | 12 | 10 | ||||
| NK6/12-TV | TAF61212 | NK6/12T2 | NK6/12-TN | 6 | 12 | 12 | |||
| NK7/10-TV | TAF71410 | NK7/10T2 | NK7/10-TN | 7 | 14 | 10 | |||
| NK7/12-TV | NB71412 | TAF71412 | NK7/12T2 | NK7/12-TN | 7 | 14 | 12 | ||
| NK8/12-TV | NB81512 | TAF81512 | NK8/12T2 | RLM81512-1 | NK8/12 | 8 | 15 | 12 | |
| NK8/16-TV | TAF81516 | NK8/16T2 | RLM81516-1 | NK8/16 | 8 | 15 | 16 | ||
| NK9/12-TV | NB91612 | TAF91612 | NK9/12T2 | RLM912 | NK9/12 | 9 | 16 | 12 | |
| NK9/16-TV | NB91616 | TAF91616 | NK9/16T2 | RLM916 | NK9/16 | 9 | 16 | 16 | |
| NK10/12TV | NB101712 | TAF101712 | NK10/12T2 | RLM101712-1 | NK10/12 | 10 | 17 | 12 | |
| NK10/16TV | NB101716 | TAF101716 | NK10/16 | RLM101716-1 | NK10/16-TN | 10 | 17 | 16 | |
| NK12/12 | NB121912 | TAF121912 | NK12/12 | RLM121912 | NK12/12 | 12 | 19 | 12 | |
| NK12/16 | NB121916 | TAF121916 | NK12/16 | RLM121916-1 | NK12/16 | 12 | 19 | 16 | |
| NK14/16 | NB142216 | TAF142216 | NK14/16R | RLM1416 | NQ14/16D | NK14/16 | 14 | 22 | 16 |
| NK14/20 | TAF142220 | NK14/20R | RLM1420 | NK14/20 | 14 | 22 | 20 | ||
| NK15/16 | NB152316 | TAF152316 | NK15/16R | RLM152316-1 | NK15/16 | 15 | 23 | 16 | |
| NK15/20 | TAF152320 | NK15/20R | RLM152320-1 | NK15/20 | 15 | 23 | 20 | ||
| NK16/16 | NB162416 | TAF162416 | NK16/16R | RLM1616 | NQ16/16D | NK16/16 | 16 | 24 | 16 |
| NK16/20 | TAF162420 | NK16/20R | RLM1620 | NQ16/20 | NK16/20 | 16 | 24 | 20 | |
| NK17/16 | TAF172516 | NK17/16R | RLM172516-1 | NQ17/16D | NK17/16 | 17 | 25 | 16 | |
| NK17/20 | TAF172520 | NK17/20R | RLM172520-1 | 17NQ2520 | NK17/20 | 17 | 25 | 20 | |
| NK18/16 | NB182616 | TAF182616 | NK18/16R | RLM182616-1 | NQ18/16 | NK18/16 | 18 | 26 | 16 |
| NK18/20 | TAF182620 | NK18/20R | RLM182620-1 | NQ18/20 | NK18/20 | 18 | 26 | 20 | |
| NK19/16 | NB192716 | TAF192716 | NK19/16R | RLM1916 | NK19/16 | 19 | 27 | 16 | |
| NK19/20 | NB192720 | TAF192720 | NK19/20R | RLM1920 | NK19/20 | 19 | 27 | 20 | |
| NK20/16 | NB202816 | TAF202816 | NK20/16R | RLM202816-1 | NQ20/16D | NK20/16 | 20 | 28 | 16 |
| NK20/20 | NB202820 | TAF202820 | NK20/20R | RLM202820 | NQ20/20 | NK20/20 | 20 | 28 | 20 |
| NK21/16 | NB212916 | TAF212916 | NK21/16R | RLM2116 | NK21/16 | 21 | 29 | 16 | |
| NK21/20 | NB212920 | TAF212920 | NK21/20R | RLM2120 | NK21/20 | 21 | 29 | 20 | |
| NK22/16 | NB223016 | TAF223016 | NK22/16R | RLM223016 | NQ22/16 | NK22/16 | 22 | 30 | 16 |
| NK22/20 | NB223020 | TAF223020 | NK22/20R | RLM223020 | NQ22/20 | NK22/20 | 22 | 30 | 20 |
| NK24/16 | NB243216 | TAF243216 | NK24/16R | RLM243216 | NQ24/16 | NK24/16 | 24 | 32 | 16 |
| NK24/20 | NB243220 | TAF243220 | NK24/20R | RLM243220 | NQ24/20AD | NK24/20 | 24 | 32 | 20 |
| NK25/16 | NB253316 | TAF253316 | NK25/16R | RLM253316-1 | NQ25/16 | NK25/16 | 25 | 33 | 16 |
| NK25/20 | NB253320 | TAF253320 | NK25/20R | RLM253320 | NQ25/20 | NK25/20 | 25 | 33 | 20 |
| NK26/16 | TAF263416 | NK26/16R | NQ26/16 | NK26/16 | 26 | 34 | 16 | ||
| NK26/20 | NB263420 | TAF263420 | NK26/20R | RLM2620 | 26NQ3420 | NK26/20 | 26 | 34 | 20 |
| NK28/20 | NB283720 | TAF283720 | NK28/20R | RLM283720 | NQ283720D | NK28/20 | 28 | 37 | 20 |
| NK28/30 | TAF283730 | NK28/30R | RLM283730 | NQ28/30 | NK28/30 | 28 | 37 | 30 | |
| NK29/20 | NB293820 | TAF293820 | NK29/20R | RLM293820-1 | NQ29/20 | NK29/20 | 29 | 38 | 20 |
| NK29/30 | NB293830 | TAF293830 | NK29/30R | RLM293830 | NQ29/30 | NK29/30 | 29 | 38 | 30 |
| NK30/20 | NB304020 | TAF304020 | NK30/20R | RLM304020 | NQ30/20 | NK30/20 | 30 | 40 | 20 |
| NK30/30 | NB304030 | TAF304030 | NK30/30R | RLM304030 | NQ30/30 | NK30/30 | 30 | 40 | 30 |
