HRB轴承22310CAK
- 型号：
- 22310CAK
- 品牌：
- HRB轴承
- 系列：
- 调心滚子轴承
- 内径d：
- 50 mm
- 外径D：
- 110 mm
- 厚度B：
- 40 mm
HRB轴承22310CAK参数
哈尔滨HRB轴承22310CAK,153610,22310CAK/W33,153610K青岛瑞精机电现货供应0532-83735255
哈尔滨HRB轴承22310CAK,153610,22310CAK/W33,153610K轴承尺寸|轴承规格参数|轴承报价
内径：50mm
外径：110mm
宽度：40mm
型号：哈尔滨轴承22310CAK,153610,22310CAK/W33,153610K
类型：轴承
品牌：HRB
备注：哈尔滨轴承
{????html_Paging????}
| HRB Bearing No. |
Outside Dimensio(mm)n |
Basic Load Rate(kN) |
Speed(Max) |
Weight (kg) |
|||||||
| No. | No (old) | ||||||||||
|
Cylindrical Bore |
Tapered Bore |
Cylindrical Bore |
Tapered Bore |
d | D | B | Dynamic | Static | Oil | Grease | |
| 22214CA | 22214CAK | 3514 | 113514 | 70 | 125 | 31 | 148.00 | 186.00 | 4500 | 3600 | 1.5500 |
| 22314CA | 22314CAK | 3614 | 113614 | 150 | 51 | 311.00 | 380.00 | 3200 | 2400 | 4.4800 | |
| 22215CA | 22215CAK | 3515 | 113515 | 75 | 130 | 31 | 158.00 | 208.00 | 4300 | 3400 | 1.6500 |
| 22315CA | 22315CAK | 3615 | 113615 | 160 | 55 | 345.00 | 430.00 | 3000 | 2200 | 5.5600 | |
| 22216CA | 22216CAK | 3516 | 113516 | 80 | 140 | 33 | 176.00 | 228.00 | 4000 | 3200 | 2.1000 |
| 22316CA | 22316CAK | 3616 | 113616 | 170 | 58 | 258.00 | 335.00 | 3000 | 2200 | 6.7900 | |
| 22217CA | 22217CAK | 3517 | 113517 | 85 | 150 | 36 | 210.00 | 270.00 | 3800 | 3000 | 2.7300 |
| 22317CA | 22317CAK | 3617 | 113617 | 180 | 60 | 293.00 | 375.00 | 2800 | 2000 | 5.0000 | |
| 22218CA | 22218CAK | 3518 | 113518 | 90 | 160 | 40 | 253.00 | 340.00 | 3400 | 2600 | 3.4000 |
| 22318CA | 22318CAK | 3618 | 113618 | 190 | 64 | 477.00 | 610.00 | 2400 | 1800 | 8.6000 | |
| 22219CA | 22219CAK | 3519 | 113519 | 95 | 170 | 43 | 282.00 | 375.00 | 3200 | 2400 | 4.2700 |
| 22319CA | 22319CAK | 3619 | 113619 | 200 | 67 | 518.00 | 670.00 | 2400 | 1800 | 10.6000 | |
| 22220CA | 22220CAK | 3520 | 113520 | 100 | 180 | 46 | 311.00 | 415.00 | 3000 | 2200 | 5.3700 |
| 22320CA | 22320CAK | 3620 | 113620 | 215 | 73 | 215.00 | 73.00 | 2200 | 1700 | 13.8000 | |
| 23022CA | 23022CAK | 30032122 | 3113122 | 110 | 170 | 45 | 267.00 | 440.00 | 3000 | 2200 | 3.7500 |
| 22222CA | 22222CAK | 3522 | 113522 | 200 | 53 | 408.00 | 560.00 | 2800 | 2000 | 7.0000 | |
| 22322CA | 22322CAK | 3622 | 113622 | 240 | 80 | 725.00 | 965.00 | 2000 | 1600 | 18.9000 | |
| 23024CA | 23024CAK | 3003124 | 3113124 | 120 | 180 | 46 | 305.00 | 510.00 | 2800 | 2200 | 4.1900 |
| 22224CA | 22224CAK | 3524 | 113524 | 215 | 58 | 466.00 | 67.00 | 2600 | 1900 | 8.7000 | |
| 22324CA | 22324CAK | 3624 | 113624 | 260 | 86 | 845.00 | 1120.00 | 2800 | 1400 | 23.8000 | |
| 23026CA | 23026CAK | 3003126 | 3113126 | 130 | 200 | 52 | 374.00 | 610.00 | 2600 | 1900 | 7.0400 |
| 22226CA | 22226CAK | 3526 | 113526 | 230 | 64 | 546.00 | 800.00 | 2400 | 1800 | 12.4000 | |
| 22326CA | 22326CAK | 3626 | 113626 | 280 | 93 | 978.00 | 1320.00 | 1700 | 1300 | 28.5000 | |
HRB调心滚子轴承22310CAK轴承我司目前有部分库存，您可致电我司咨询销售人员关于轴承22310CAK的图纸、轴承22310CAK价格或同型号其他品牌替换等资料！我司与HRB厂家常年批量订购22310CAK调心滚子轴承，以保证22310CAK轴承质量正宗，价格最优。订购原装HRB 22310CAK轴承请拨打：0532-83735255、13061287818
热销轴承型号：上一篇：KOYO轴承6005ZZFGGA2 IKO CH11VBUU轴承 IKO CR8轴承 DODGE轴承单元126180 FC-SCM-215 NTN轴承7000UCDB/GNP5 NACHI 6201N轴承 SKF RNA4900轴承 KOYO 6302ZZ轴承 NSK 6911DDU轴承 IKO TA2830Z轴承 下一篇：SKF轴承1205ETN9
热销轴承型号：上一篇：KOYO轴承6005ZZFGGA2 IKO CH11VBUU轴承 IKO CR8轴承 DODGE轴承单元126180 FC-SCM-215 NTN轴承7000UCDB/GNP5 NACHI 6201N轴承 SKF RNA4900轴承 KOYO 6302ZZ轴承 NSK 6911DDU轴承 IKO TA2830Z轴承 下一篇：SKF轴承1205ETN9

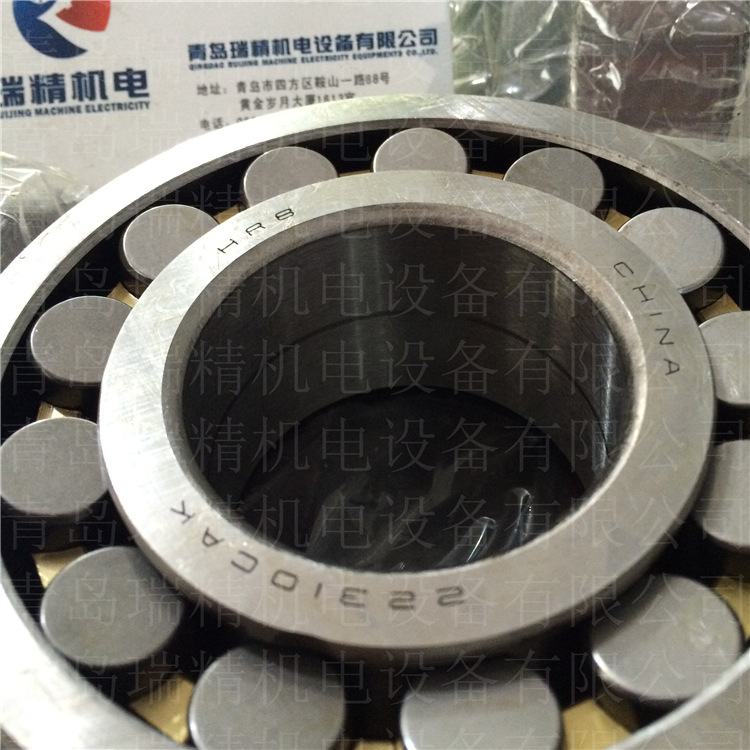

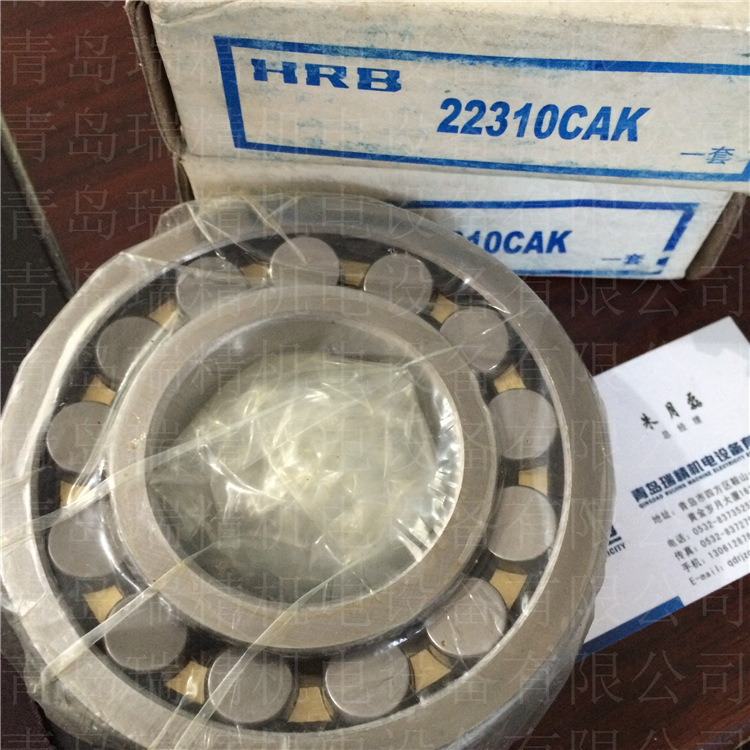

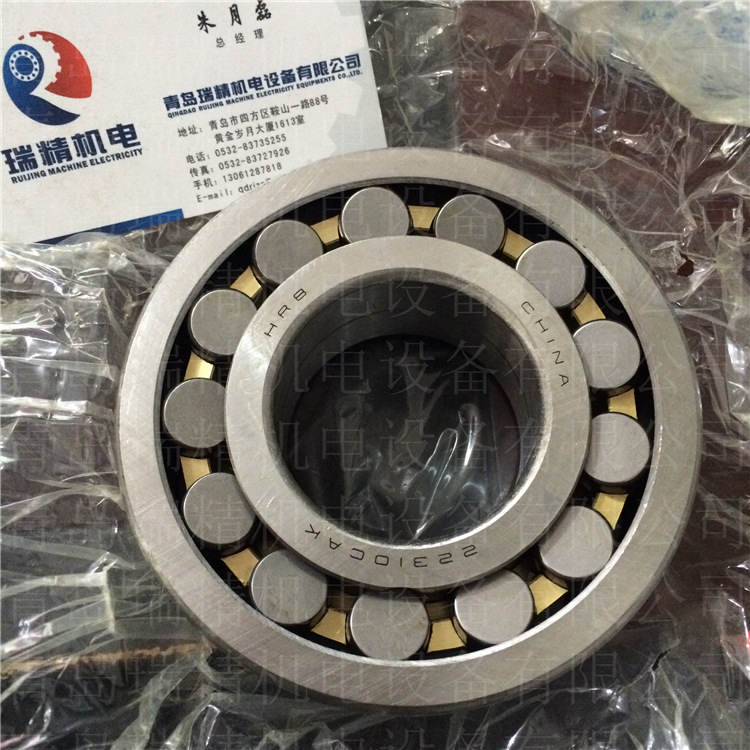

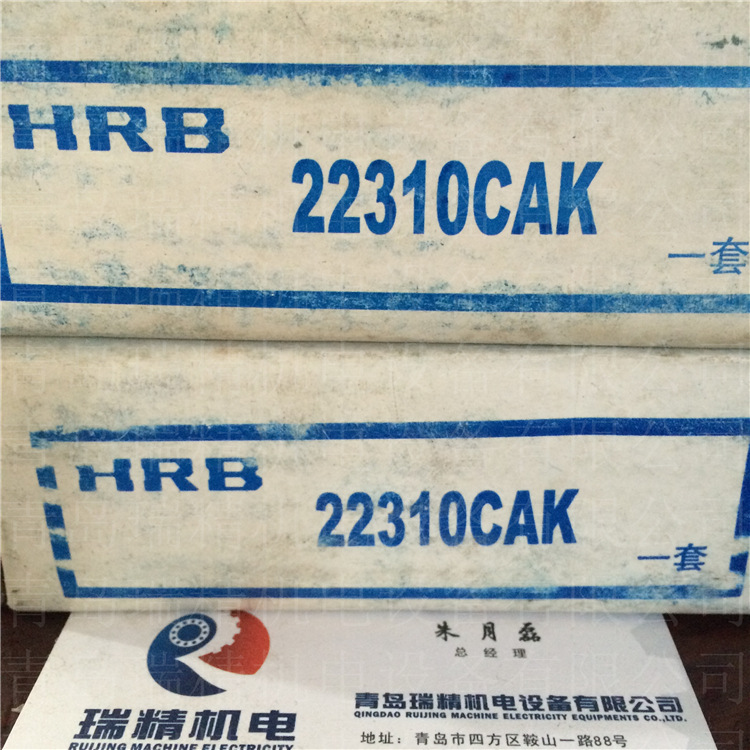

HRB轴承22310CAK轴承图纸
