| 订货号 | S6632FCHHEA667 | 品牌 | GBC | 型号 | S6632FCHHEA667 |

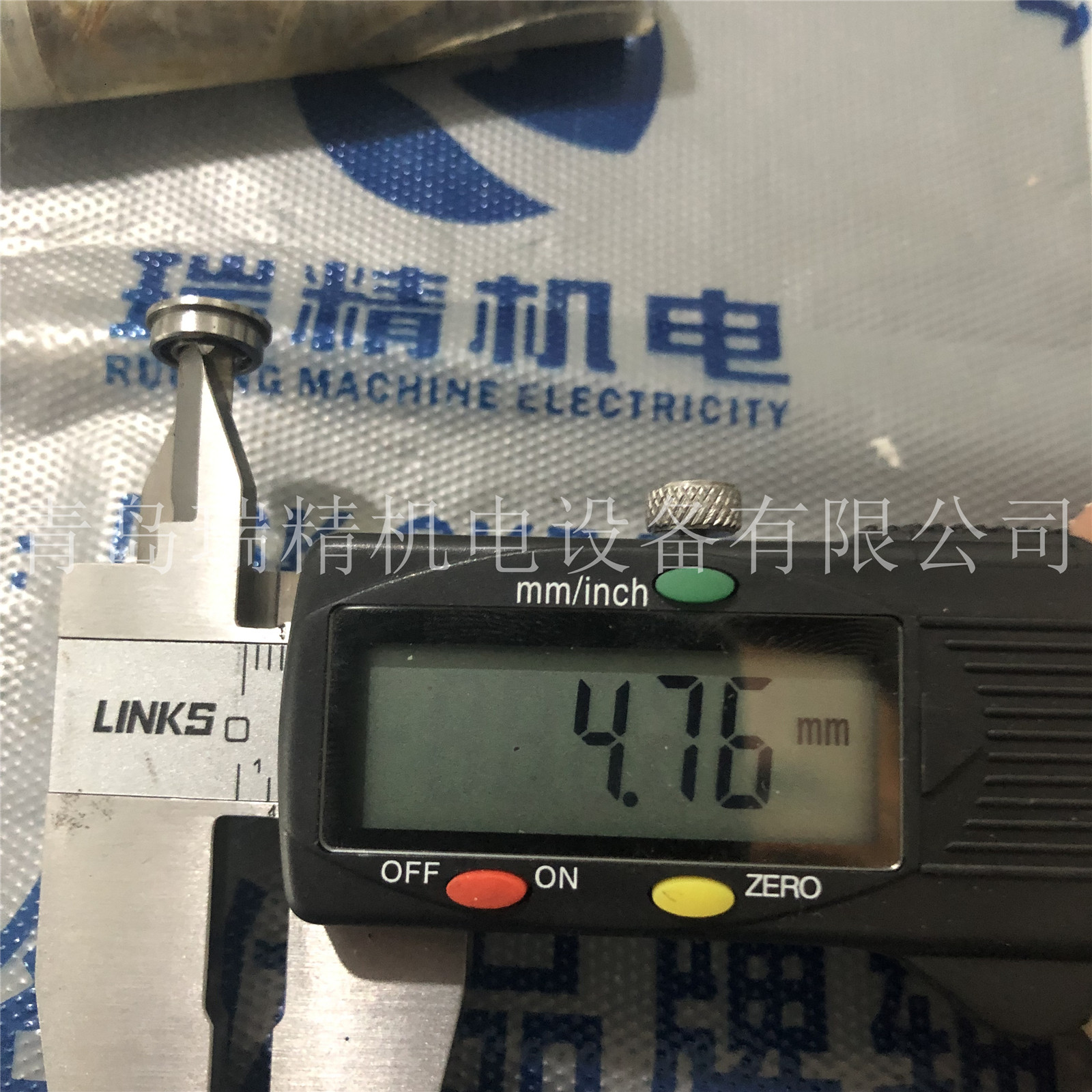

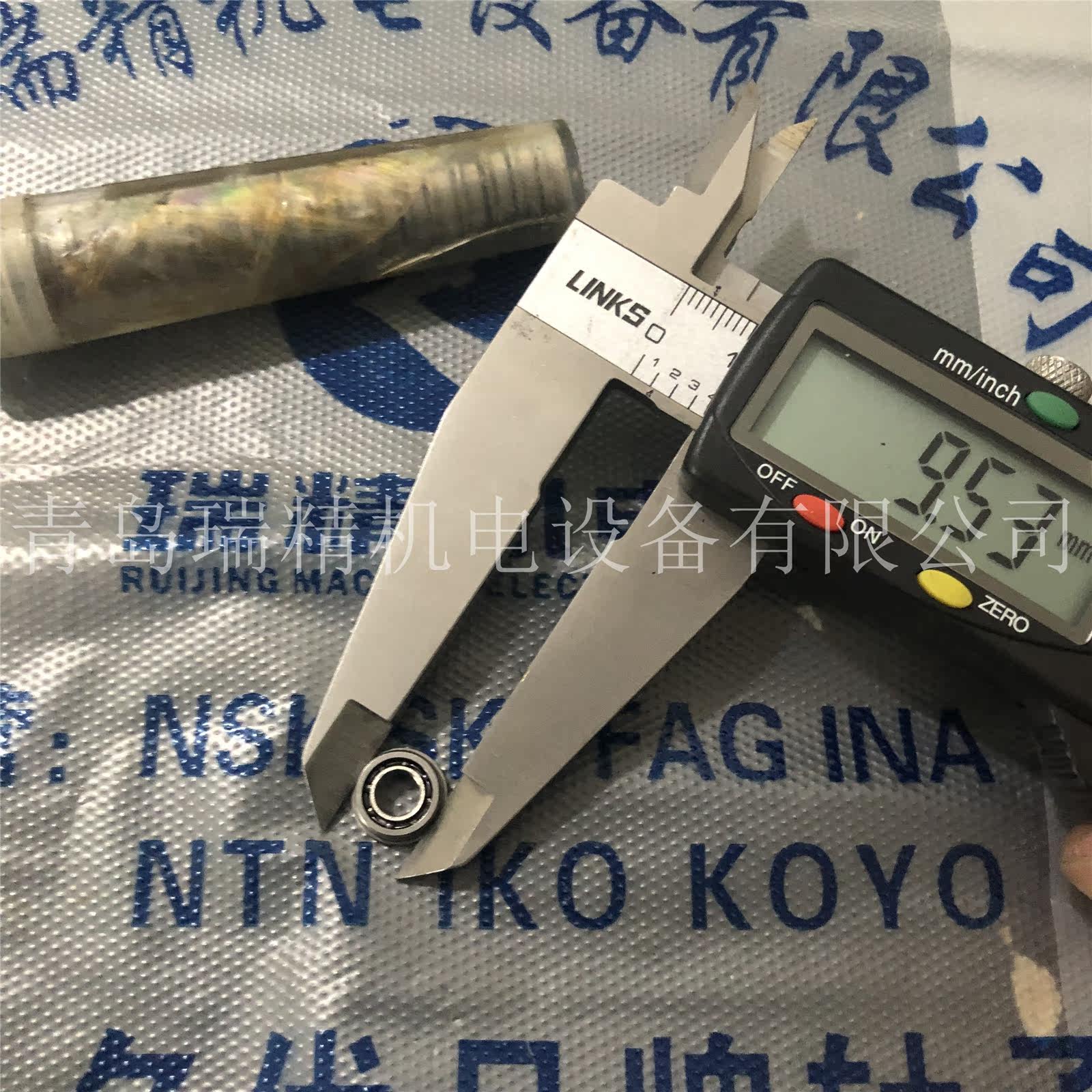

| 旧型号 | S6632FCHHEA667 | 内径 | 4.762（mm） | 外径 | 9.525（mm） |

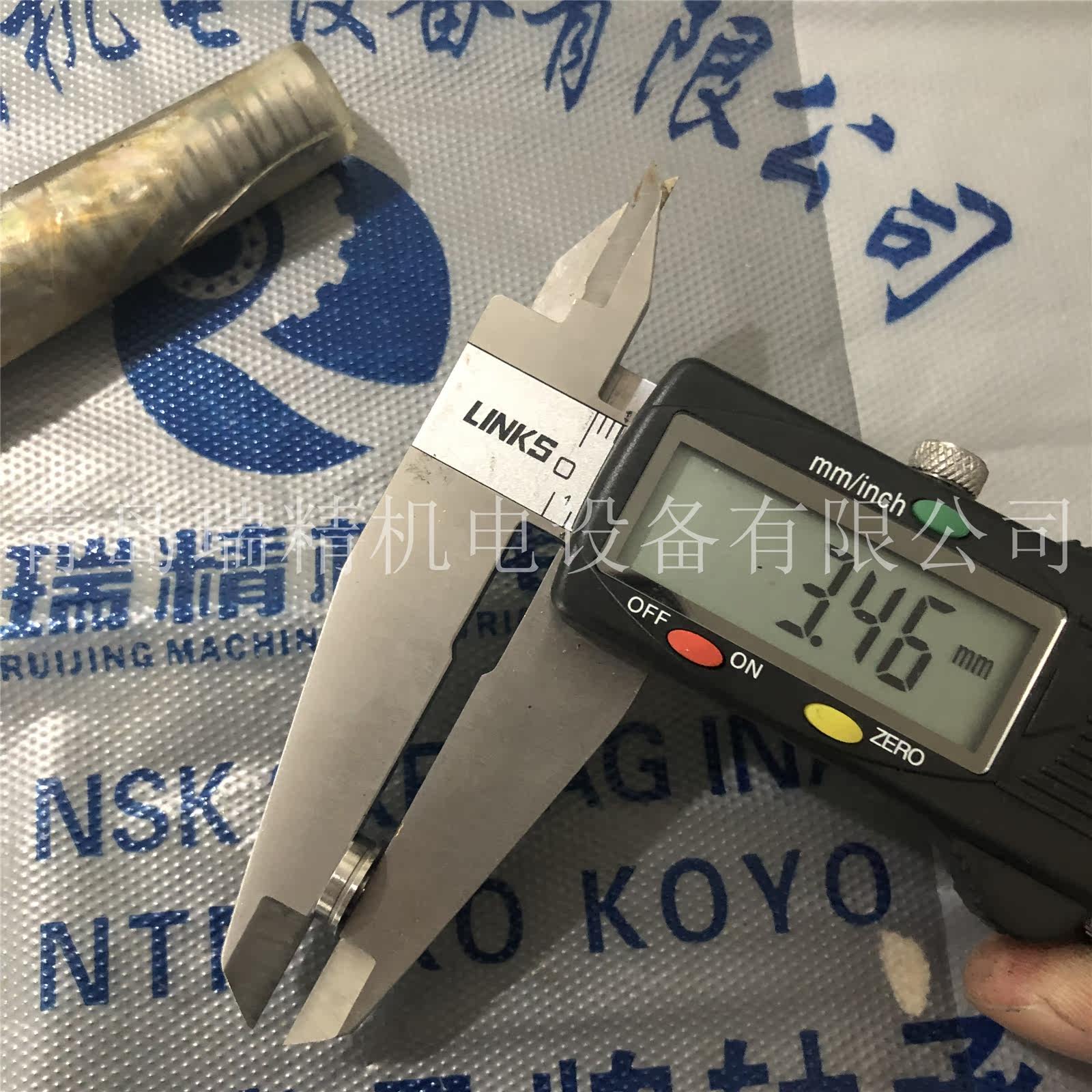

| 厚度 | 3.5（mm） | 重量 | 0.001（kg） | 保持架及其材料 | J钢板冲压 |
| 滚动体列数 | 单列 | 滚道类型 | 深沟滚道 | 使用特性 | 高速 |
| 密封防尘形式 | M | 滚动体类型 | 球 | 密封盖 | 无密封 |
| 滚动体 | 钢球 | 轴承材质 | 不锈轴承钢AISI440(9Cr18) | 精度等级 | P4 |
| 组配方式 | SU/G | 主要下游平台 | 亚马逊 | 主要销售地区 | 南美 |
| 有可授权的自有品牌 | 否 | 是否跨境货源 | 是 | 货号 | S6632FCHHEA667 |
| 系列 | S6632FCHHEA667 | 是否标准件 | 标准件 | 尺寸 | S6632FCHHEA667 |
| 材质 | 碳钢 |

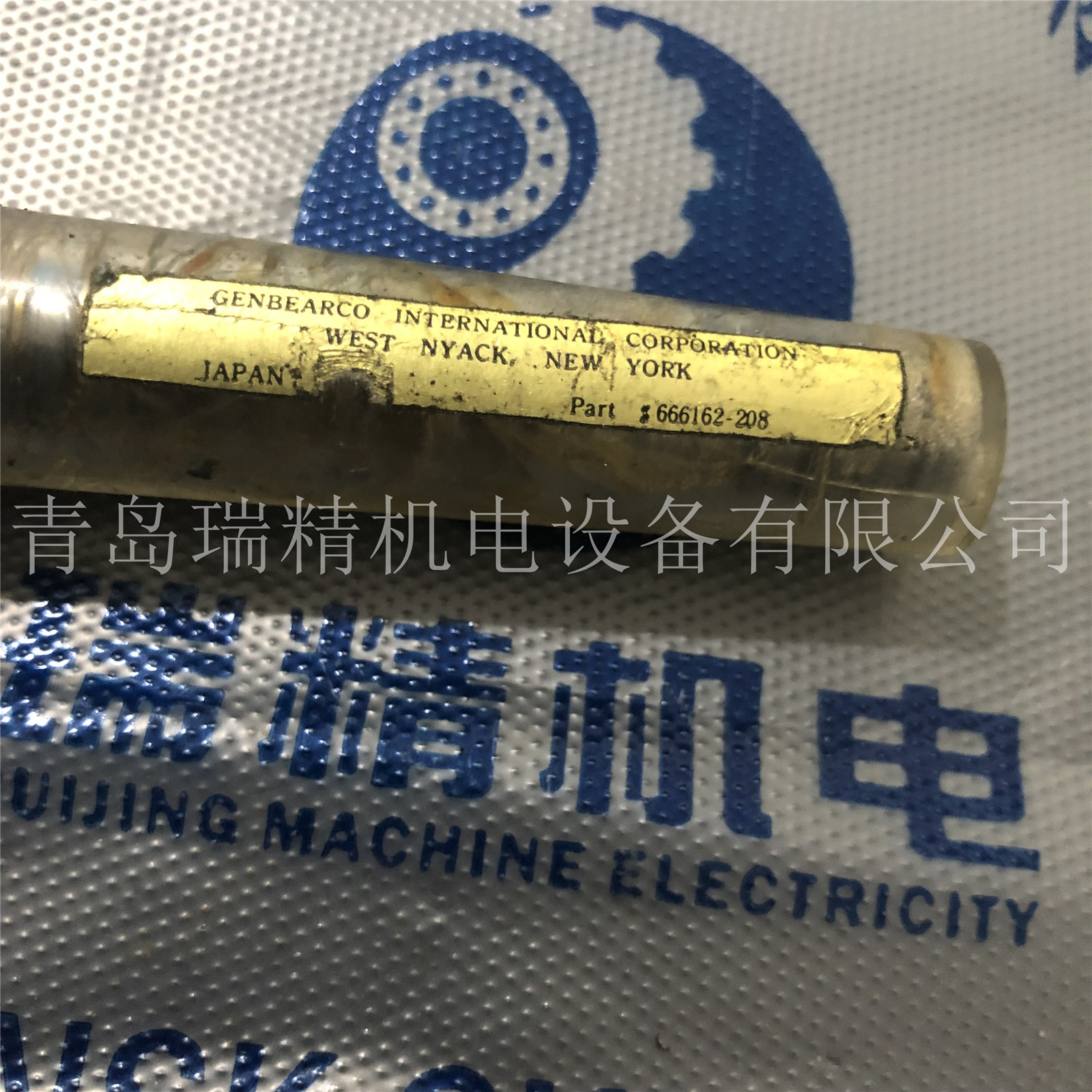

GBC英制微型法兰轴承 S6632FCHHEA667 航空器材编号666162-208 |
|
| 根据 DIN 628-1 标准的主要尺寸，GBC英制微型法兰轴承 S6632FCHHEA667 航空器材编号666162-208 |
NSN 3110-00-088-2053
- Home
- Part Directories
- FSG
- 31
- 3110
- 3110-00-088-2053
Product Details | ANNULAR BALL BEARING
3110-00-088-2053 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: S6632FCHHEA667, 666162-208, 4165, 3110-00-088-2053, 00-088-2053, 3110000882053, 000882053, 666162208
Bearings | Bearings, Antifriction, Unmounted
Supply Group (FSG)NSN Assign.NIINItem Name Code (INC)| 31 | 01 JAN 1963 | 00-088-2053 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-088-2053
Request a Quote
3110-00-088-2053
Technical Data | NSN 3110-00-088-2053
CharacteristicSpecifications
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 16A NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 0.1875 INCHES MINIMUM AND 0.1879 INCHES MAXIMUM |

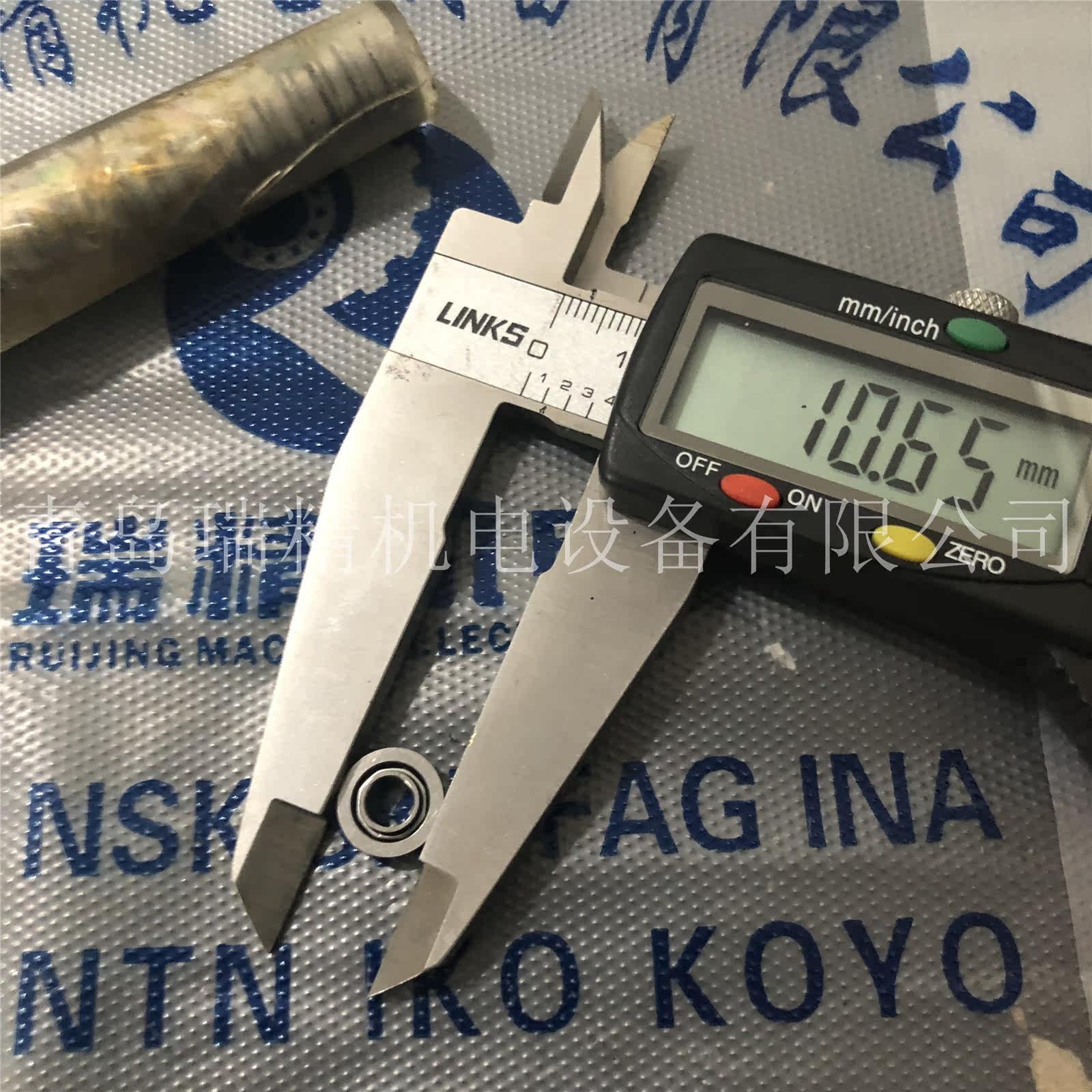

| FLANGE OUTSIDE DIAMETER | 0.4170 INCHES MINIMUM AND 0.4220 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0280 INCHES MINIMUM AND 0.0310 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.1200 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| INNER RING WIDTH | 0.1356 INCHES MINIMUM AND 0.1406 INCHES MAXIMUM |
| OUTER RING OUTSIDE DIAMETER | 0.3747 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-6085 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | INNER RING EXTENDED ON FLANGE SIDE ONLY |
Restrictions/Controls & Freight Information | NSN 3110-00-088-2053
CategoryCodeDescription
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Management | NSN 3110-00-088-2053
CategoryCodeDescription
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V |
The current standard price has been validated.
|
| Source of Supply | SMS |
Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing |
QTY UOM |
1 EA : Each |
