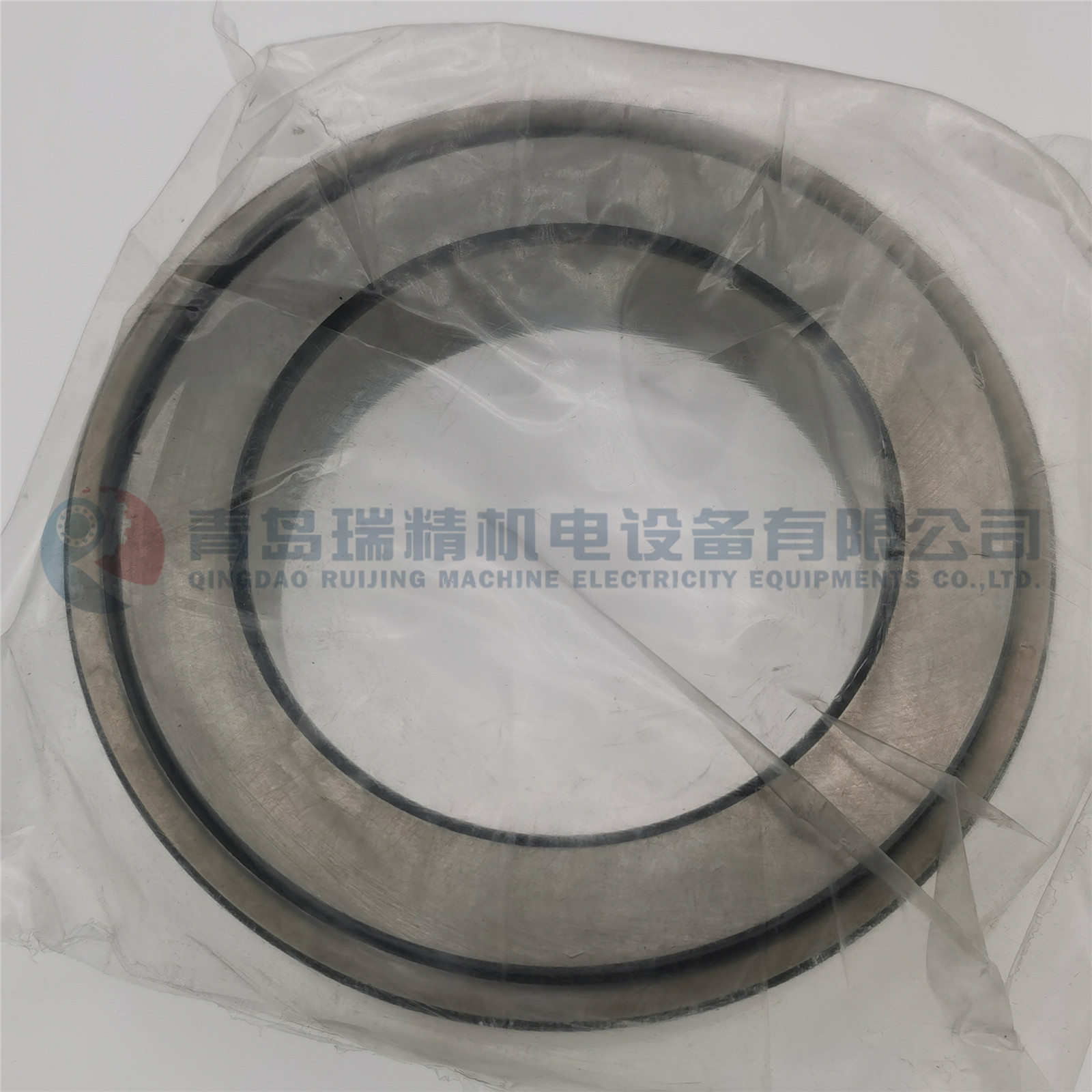

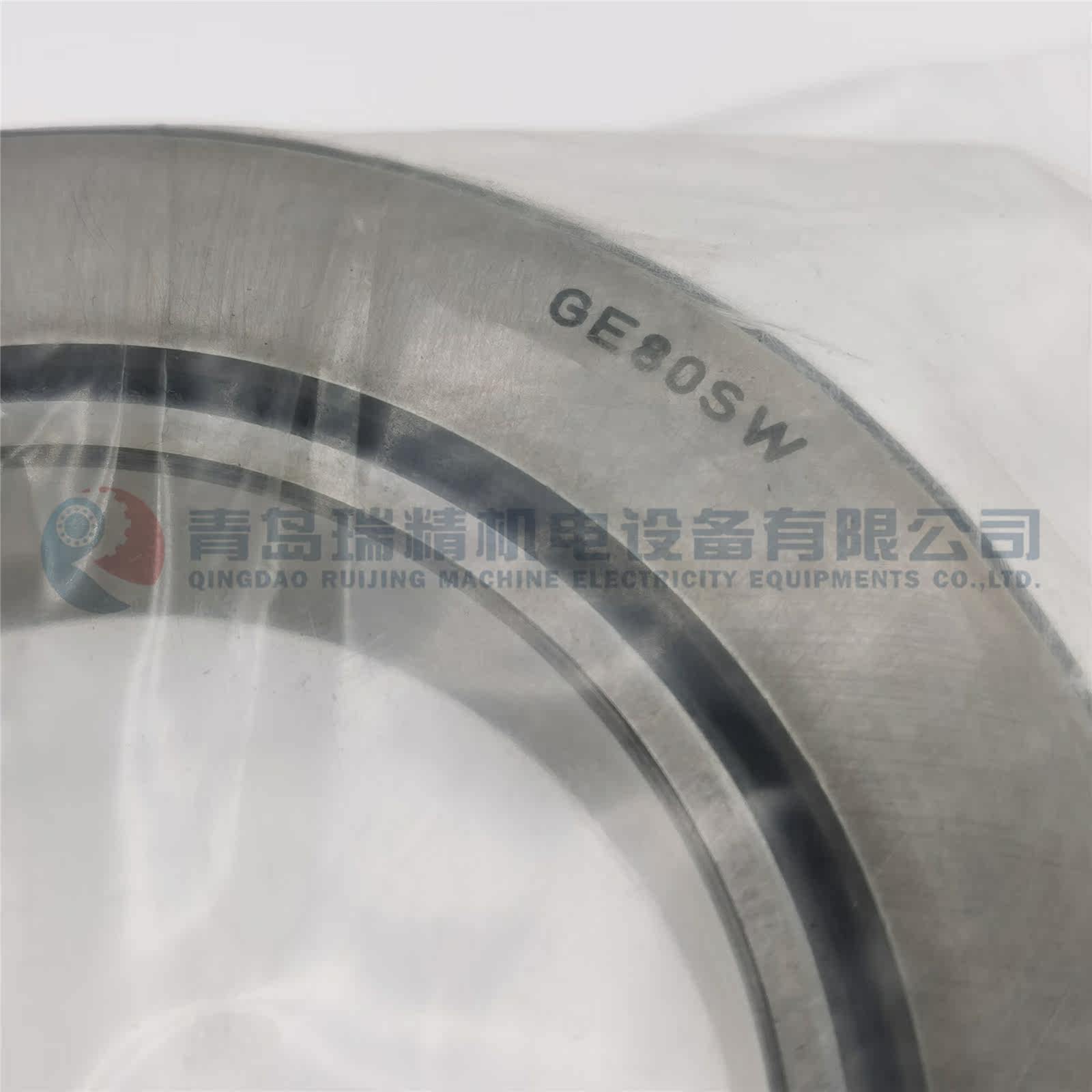

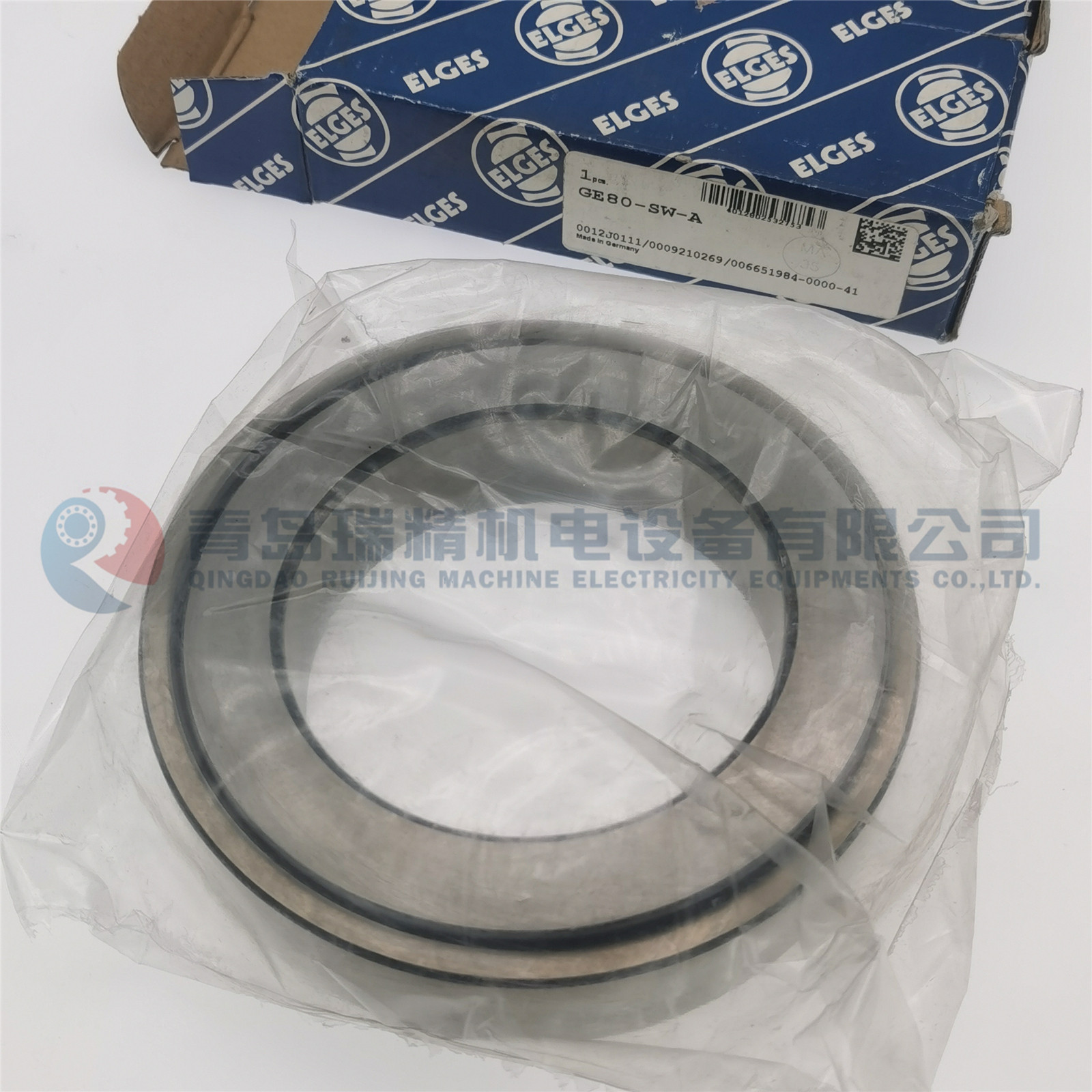

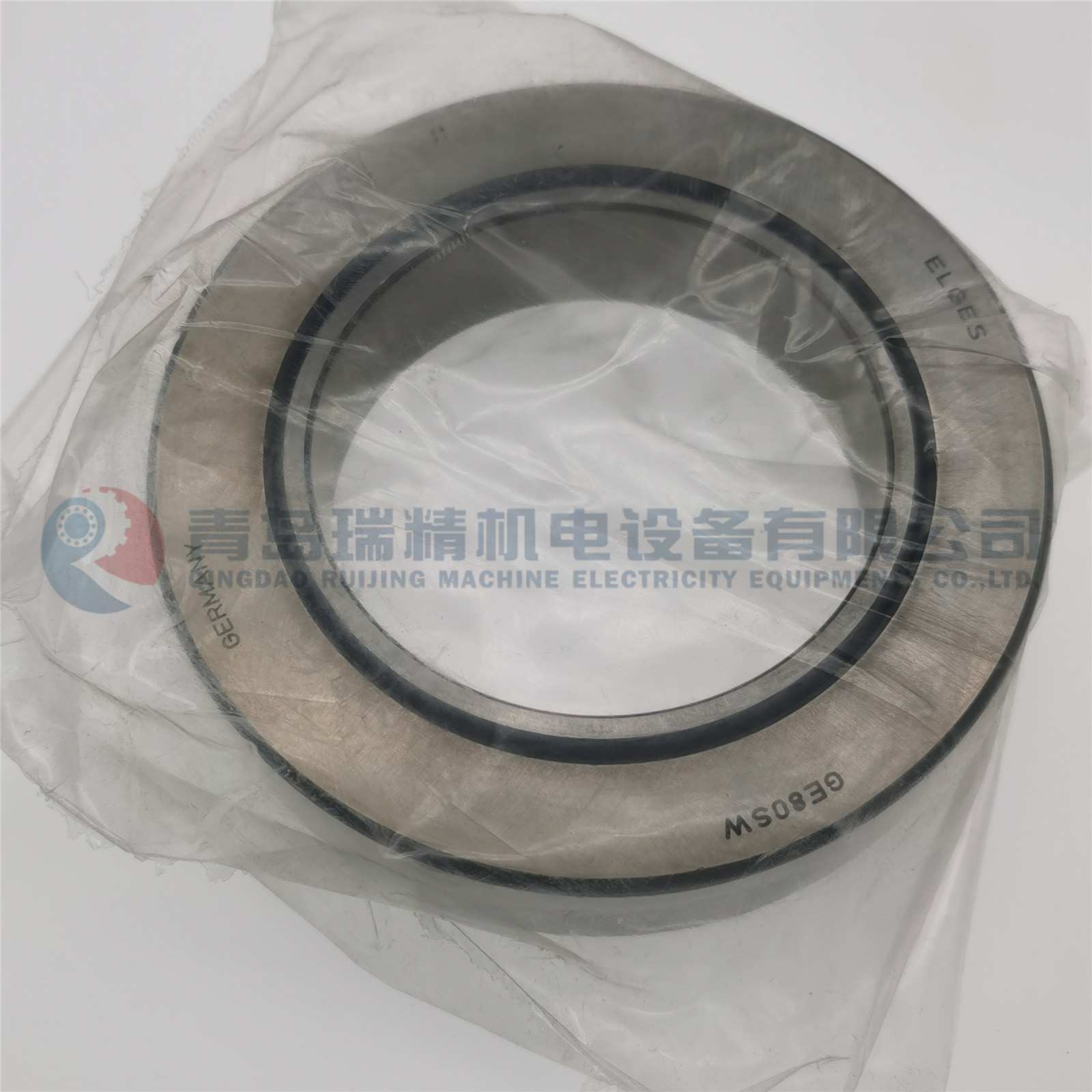

Main Dimensions & Performance DataDownload data sheet
d
80 mm
Bore diameter bearing
D
125 mm
Outside diameter bearing
T
29 mm
Height
B
27 mm
Width Inner ring
Cr
734,000 N
Basic dynamic load rating, radial
C0r
1,220,000 N
Basic static load rating, radial
1.53 kg
Weight
Dimensions
dK
115 mm
Ball diameter
D1
90.5 mm
Bore diameter of housing washer
C
27 mm
Width Outer ring
s
10 mm
Plane Surface Spacing
α
2 °
Tilt angle
dUT
-0.015 mm
Bore diameter bearing, lower tolerance
DUT
-0.02 mm
Outside diameter, lower tolerance
TOT
0.25 mm
Height, upper tolerance
TUT
-0.25 mm
Height, lower tolerance
BUT
-0.3 mm
Width inner ring, lower tolerance
COT
-0.3 mm
Width outer ring, lower tolerance
Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
88 mm
Connection measure Inner ring
Db min
117 mm
Connection diameter
db max
104 mm
Connection measure Inner ring
Da min
99 mm
Housing Connection Diameter
Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating
