进口DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋

进口DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋

  • 型号：
  • BRF10-06-502L
  • 品牌：
  • DURBAL轴承
  • 系列：
  • 内径d：
  • mm
  • 外径D：
  • mm
  • 厚度B：
  • mm
进口DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋参数

参数信息

品牌
DURBAL
型号
BRF10-06-502L
厚度（mm）
10mm
颜色分类
银色
是否标准件
是
滚动体列数
单列
是否进口
是
滚动轴承座材质：
轴承钢
内径（mm）
10



图文详情



订货号 BRF10-06-502L 品牌 DURBAL 型号 BRF10-06-502L
内径 10（mm） 外径 10（mm） 厚度 10（mm）
重量 1（kg） 用途 BRF10-06-502L 使用特性 高速
润滑剂 油润滑 油润滑方法 滴油润滑 润滑状态 边界润滑
是否跨境货源 否 样品或现货 现货 是否进口 进口
材质 BRF10-06-502L




  青岛辉瑞轴承有限公司供应DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋青岛辉瑞轴承有限公司供应DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋青岛辉瑞轴承有限公司供应DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋青岛辉瑞轴承有限公司供应DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋

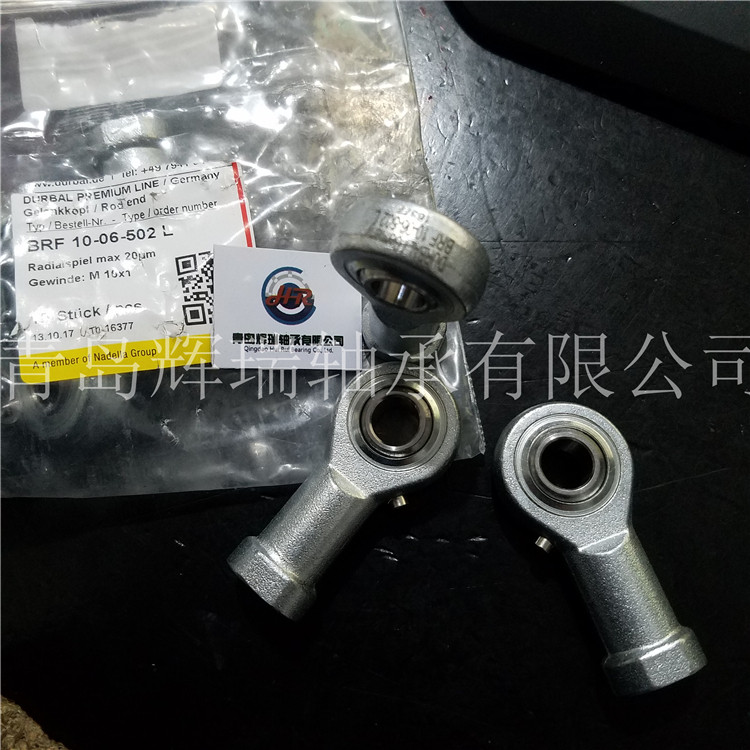

DURBAL轴承BRF10-06-502L

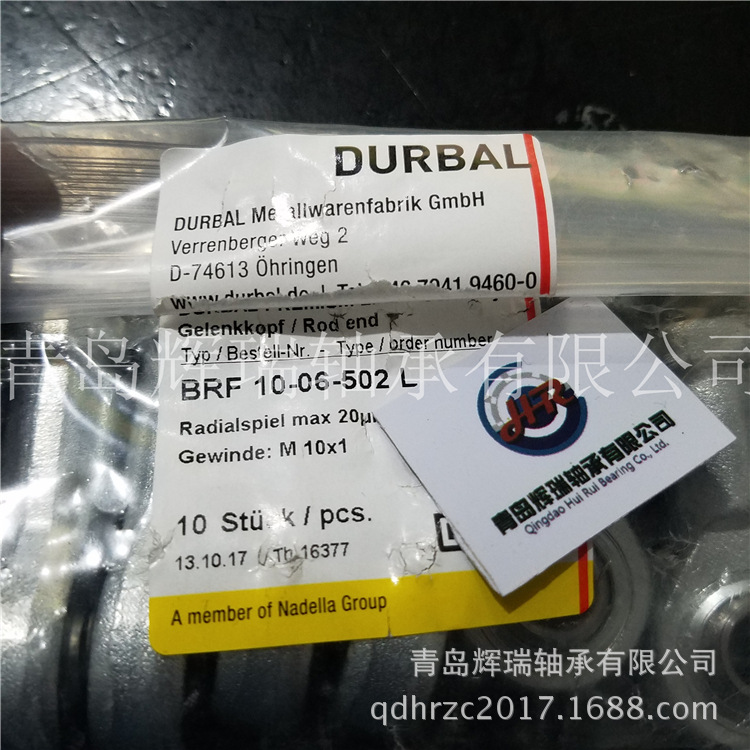

DURBAL轴承BRF10-06-502L (2)

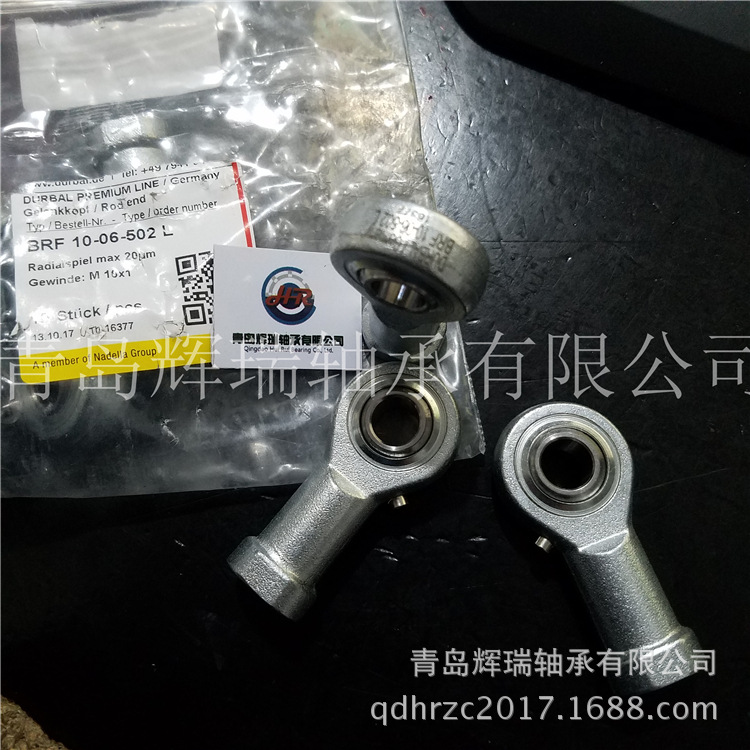

DURBAL轴承BRF10-06-502L (3)

Volume Pricing Chart
Qty 1-10 11-20 21-75 76-150 151-225 226-300 301+
Discount 0% 4% 5% 6% 7% 8% 9%



Please login to view pricing.
Part Number Description Stock
BRF 06-00-501 Rod End: Bore 06mm, Thd. 6 X 1.0 mm. 43
BRF 06-00-502 Rod End: Bore 06mm, Thd. 6 X 1.0 mm. LH 45
BRF 06-60-501 Rod End: Bore 06mm, Thd. 6 X 1.0 mm Stainless Steel 104
BRF 06-60-502 Rod End: Bore 06mm, Thd. 6 X 1.0 mm. LH Stainless Steel 59
BRF 08-00-501 Rod End: Bore 8mm, Thd. 8 X 1.25 mm. 87
BRF 08-00-502 Rod End: Bore 8mm, Thd. 8 X 1.25 mm. LH 47
BRF 08-00-510 Rod End: BRF 08 BLANK, NO THREAD 15
BRF 1/1-00-310 Rod End: BRF 1/1 inch bore Blank (not threaded) 0
BRF 10-00-501 Rod End: Bore 10mm, Thd. 10 X 1.5 mm. 192
BRF 10-00-502 Rod End: Bore 10mm, Thd. 10 X 1.5 mm. LH 114
BRF 10-01-501 Rod End: Bore 10mm, Thd. 10 X 1.25 mm. 35
BRF 10-01-502 Rod End: Bore 10mm, LH Thd. 10 X 1.25 mm. 40
BRF 10-05-501 Rod End: Bore 10mm, Thd. 10 X 1.25 mm. Old # BRF 10-01-501 52
BRF 10-05-502 Rod End: Bore 10mm, LH Thd. 10 X 1.25 mm. Old # BRF 10-01-502 49
BRF 10-06-501 Rod End: Bore 10mm, Thd. 10 X 1.00 mm. 51
BRF 10-06-502 Rod End: Bore 10mm, LH Thd. 10 X 1.00 mm. 51
BRF 10-60-501 Rod End: Bore 10mm, Thd. 10 X 1.5 mm. Stainless Steel 1.4034 0
BRF 10-60-502 Rod End: Bore 10mm, LH, Thd. 10 X 1.5 mm. Stainless Steel 1.4034 100
BRF 10-xx-501 Rod End: XXXX BRF 10 SO, LENGTH (H) 73MM 0
BRF 10-xx-502 Rod End: XXXX BRF 10 SO, LENGTH (H) 73MM 0
BRF 12-00-501 Rod End: Bore 12mm, Thd. 12 X 1.75 mm. 70
BRF 12-00-502 Rod End: Bore 12mm, Thd. 12 X 1.75 mm. LH 80
BRF 12-00-510 Rod End: Bore 12 mm, BLANK no threads 6
BRF 12-01-501 Rod End: Bore 12mm, Thd. 12 X 1.25 mm. 32
BRF 12-01-502 Rod End: Bore BRF 12, LH Thd. 12 x 1.25 mm. 29
BRF 12-04-501 Rod End: Bore 12mm, Thd. 12 X 1.25 mm.(Old # BRF 12-01-501) 30
BRF 12-04-502 Rod End: Bore BRF 12, LH Thd. 12 x 1.25 mm. (Old # BRF 12-01-501) 89
BRF 12-05-501 Rod End: Bore 12mm, Thd. 12 X 1.75 mm.Radial Clearance is 10-20 29
BRF 12-05-502 Rod End: Bore 12mm, LH Thd. 12 X 1.75 mm.Radial Clearance is 10-20 22
BRF 12-60-501 Rod End: Bore 12mm, Thd. 12 X 1.75 mm. Stainless Steel 42
BRF 14-00-501 Rod End: Bore 14mm, Thd. 14 X 2.0 mm. 92
BRF 14-00-502 Rod End: Bore 14mm, Thd. 14 X 2.0 mm. LH 78
BRF 16-00-501 Rod End: Bore 16mm, Thd. 16 X 2.0 mm. 68
BRF 16-00-502 Rod End: Bore 16mm, Thd. 16 X 2.0 mm. LH 58
BRF 16-01-501 Rod End: Bore 16mm, Thd. 16 X 1.5 mm. 46
BRF 16-01-502 Rod End: Bore 16mm, LH Thd 16X1.5 mm 44
BRF 16-60-501 Rod End: Bore 16mm, RH, Thd. 16 X 2.0 mm. Stainless Steel 1.4034 25
BRF 16-60-502 Rod End: Bore 16mm, LH, Thd. 16 X 2.0 mm. Stainless Steel 1.4034 20
BRF 18-00-501 Rod End: Bore 18mm, Thd. 18 X 1.5 mm. 28
BRF 18-00-502 Rod End: Bore 18mm, Thd. 18 X 1.5 mm. LH 55
BRF 20-00-310 Rod End: BRF 20 BLANK - NO THREADS 2
BRF 20-00-501 Rod End: Bore 20mm, Thd. 20 X 1.5 mm. 49
BRF 20-00-502 Rod End: Bore 20mm, Thd. 20 X 1.5 mm. LH 31
BRF 20-60-501 Rod End: Bore 20mm, Thd. 20 X 1.5 mm. Stainless Steel 77
BRF 20-60-502 Rod End: Bore 20mm, Thd. 20 X 1.5 mm. Stainless Steel 71
BRF 22-00-501 Rod End: Bore 22mm, Thd. 22 X 1.5 mm. 46
BRF 22-00-502 Rod End: Bore 22mm, Thd. 22 X 1.5 mm. LH 36
BRF 25-00-501 Rod End: Bore 25mm, Thd. 24 X 2.0 mm. 31
BRF 25-00-502 Rod End: Bore 25mm, Thd. 24 X 2.0 mm. LH 23
BRF 25-01-501 Rod End: Bore 25mm, Thd. 20 X 2.5 mm 5
BRF 25-01-502 Rod End: Bore 25 mm, Thd. 20 X 2.5 mm, LH 14
BRF 25-60-501 Rod End: Bore 25mm, Thd. 24 X 2.0 mm. Stainless Steel 0
BRF 25-60-502 Rod End: Bore 25mm, LH, Thd. 24 X 2.0 mm. Stainless Steel 0
BRF 30-00-501 Rod End: Bore 30mm, Thd. 30 X 2.0 mm. 25
BRF 30-00-502 Rod End: Bore 30mm, Thd. 30 X 2.0 mm. LH 15
BRF 30-00-510 Rod End: Bore 30mm, BLANK Threads 2
BRR 08-00-510 Rod End: BRF 8, BLANK NO THEADS 0
CBRF 20-80-501-00 Rod End: 20mm BORE, 22 X 1.5 THREAD 0
CBRF 20-80-502-00 Rod End: 20mm BORE, 22 X 1.5 THREAD, LH





DURBALBRF10-06-502L轴承我司目前有部分库存，您可致电我司咨询销售人员关于轴承BRF10-06-502L的图纸、轴承BRF10-06-502L价格或同型号其他品牌替换等资料！我司与DURBAL厂家常年批量订购BRF10-06-502L，以保证BRF10-06-502L轴承质量正宗，价格最优。订购原装DURBAL BRF10-06-502L轴承请拨打：0532-83735255、13061287818
热销轴承型号：上一篇：ELGES关节轴承GE80-UK-2RS-A 免维护 内径80mm外径120mm厚度55mm TIMKEN 35FSH62-SS轴承 INA 06X63轴承 NTN 29268轴承 TIMKEN T484轴承 TIMKEN AOH3080轴承 NTN NK68/25R轴承 SKF 6200-2RSH轴承 NTN 7316CDF轴承 KOYO 7408轴承 下一篇：进口DURBAL高速杆端关节轴承BRF10-06-501 螺纹M10X1 右旋
进口DURBAL高速杆端关节轴承BRF10-06-502L 螺纹M10X1 左旋轴承图纸
