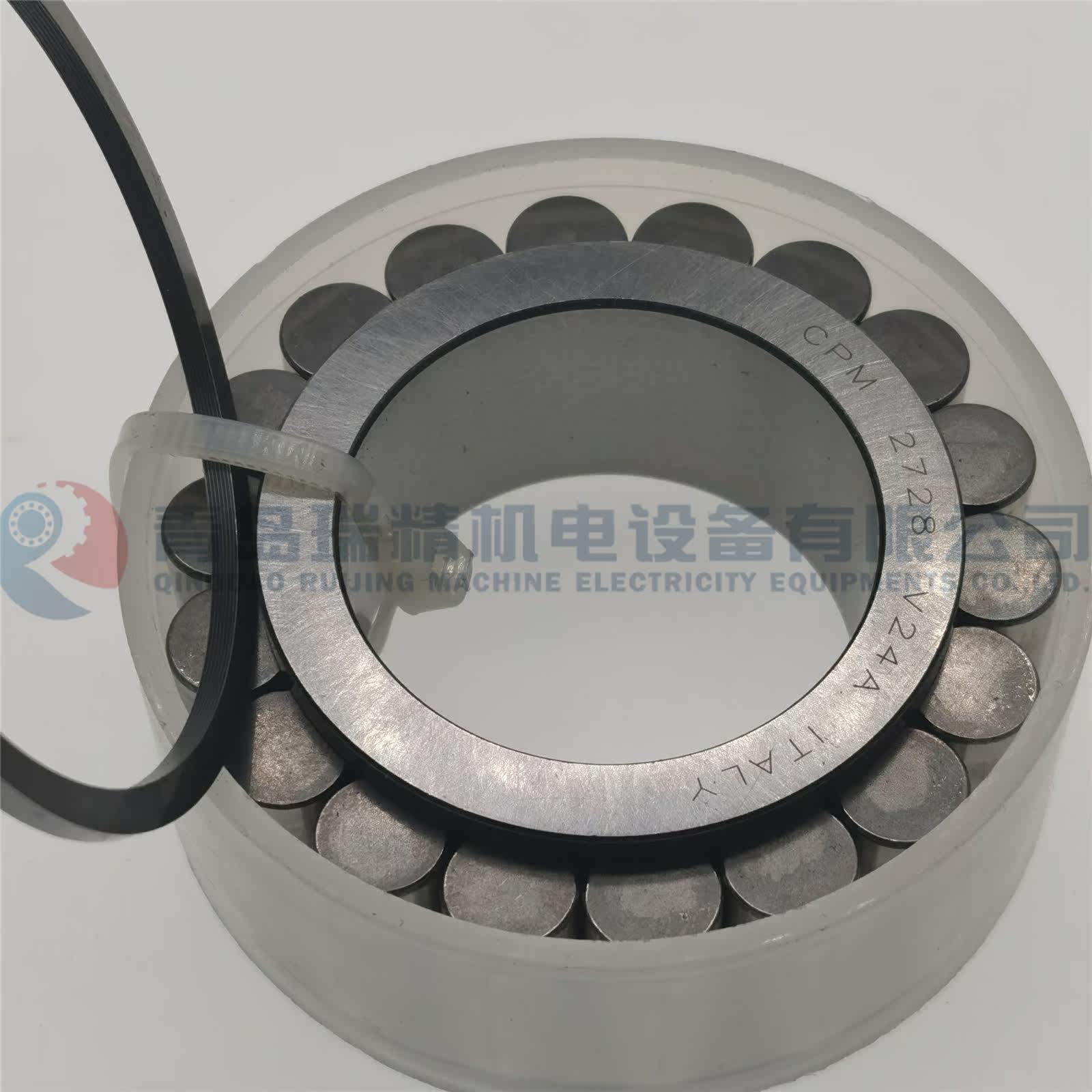

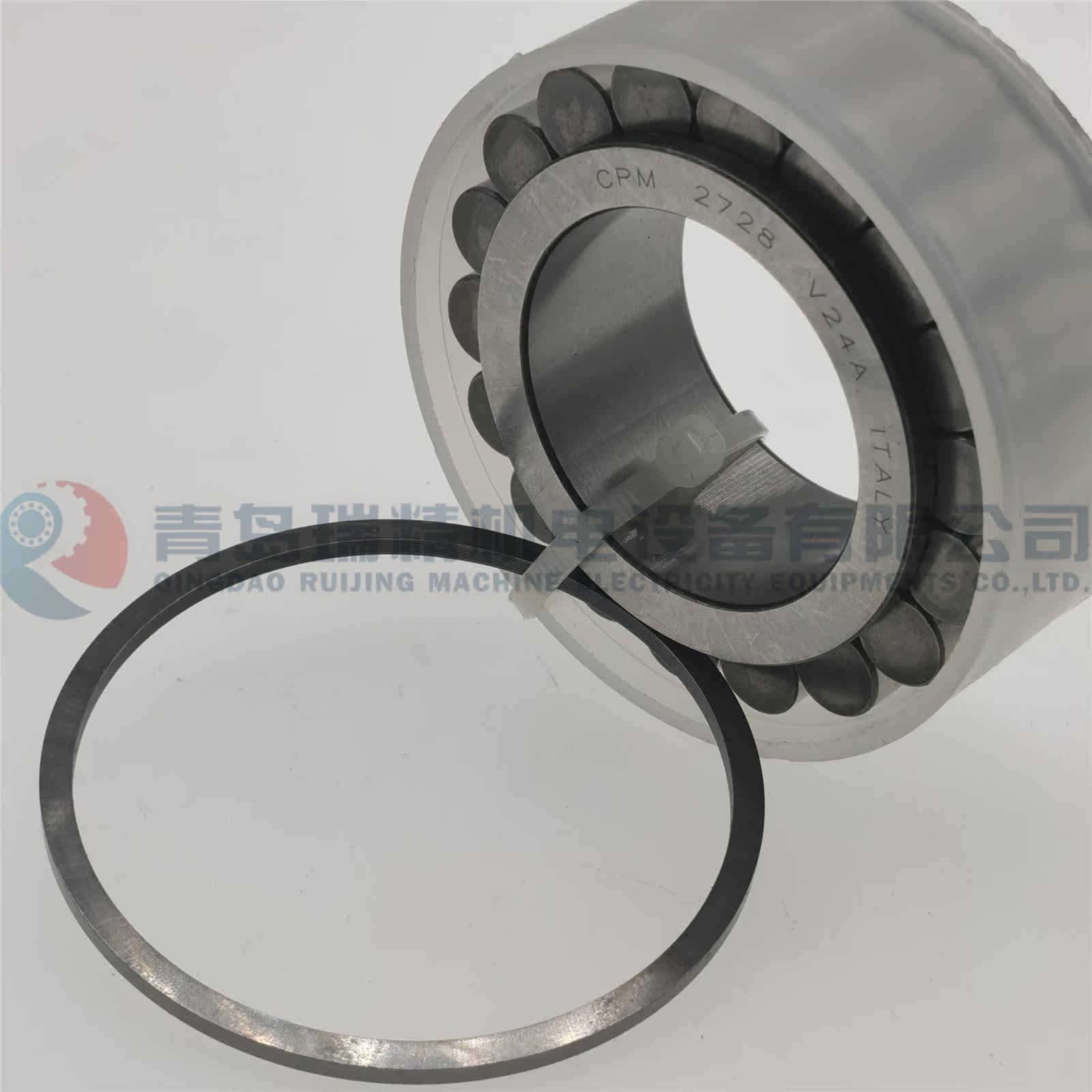

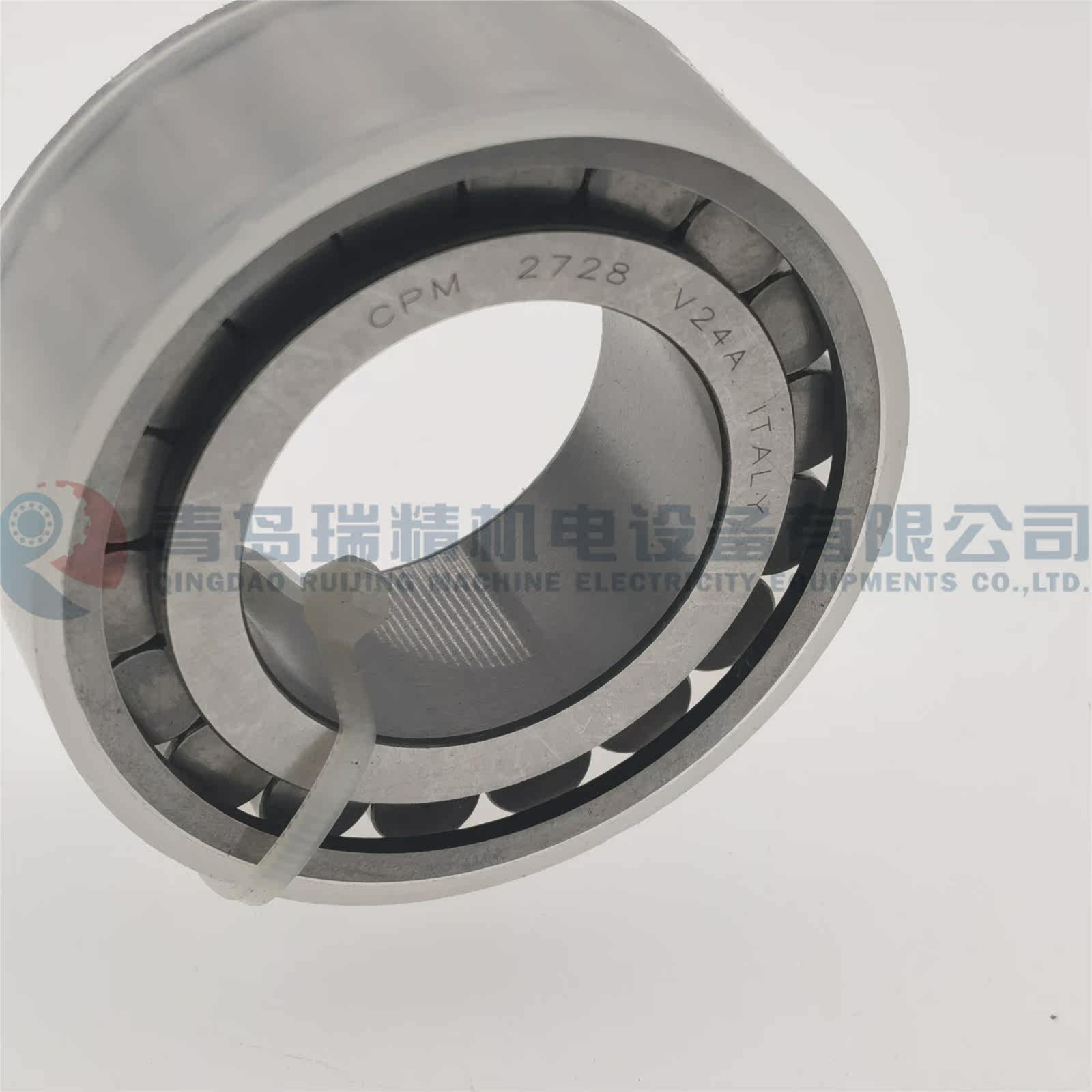

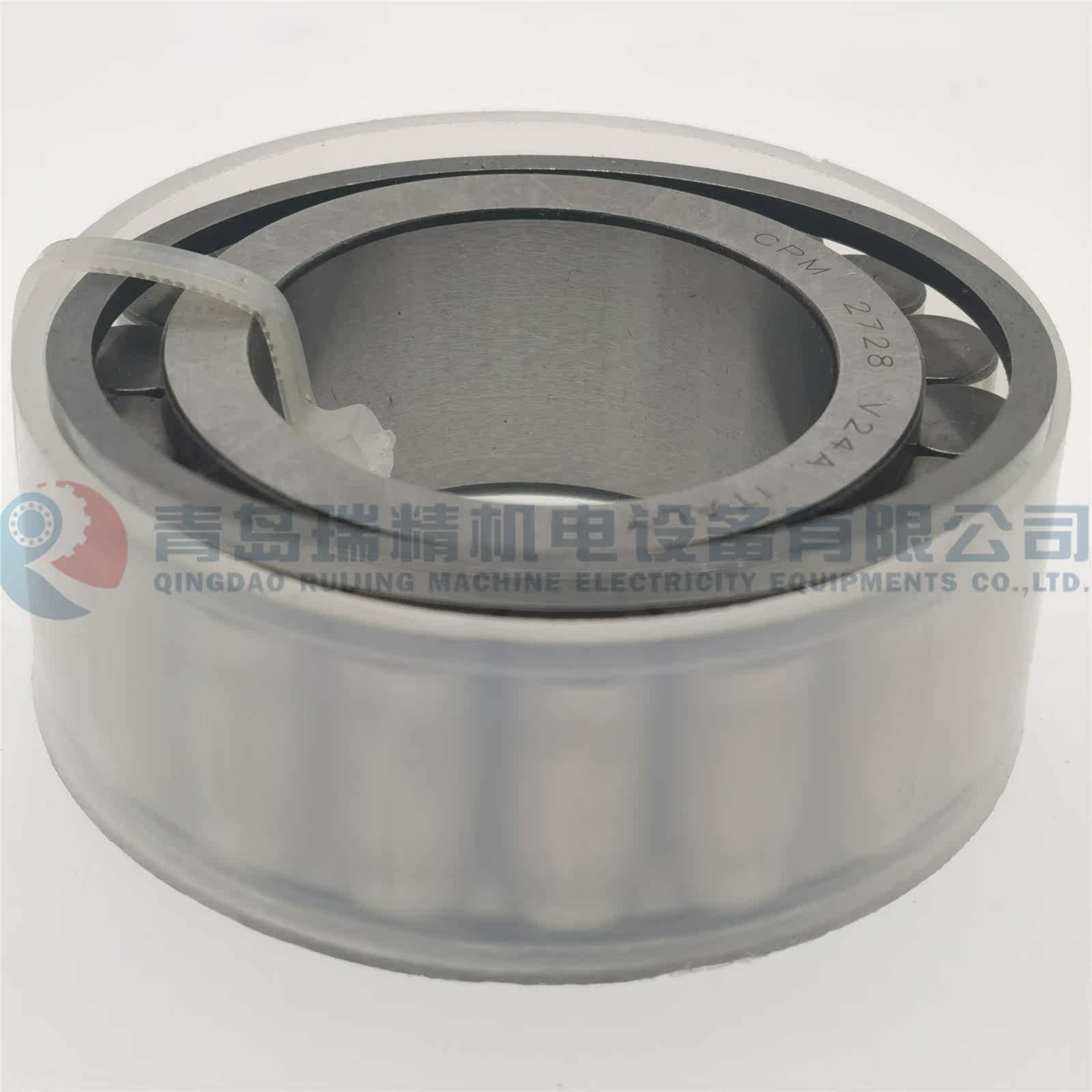

CPM 2728 Cylindrical Roller Bearings CPM2728



Cylindrical Roller Bearings, single row







d(mm)	Dr(mm)	B(mm)	J(mm)	X(mm)	R min	r min	Cr kN	Cor kN	TYPE	Bearing NO.
15	27.116	14.00	22.20	8.0	1.8	0.3	18.0	19.4	C	CPM2671
17	28.360	19.00	23.70	13.0	2.0	0.3	27.0	33.0	B	CPM2662
18	30.470	20.00	25.00	13.0	2.0	0.3	28.5	33.6	B	CPM2663
18	30.520	13.00	25.15	8.0	2.0	0.5	19.9	21.2	B	CPM2181
19	33.829	19.00	28.00	15.0	2.0	0.3	37.8	46.5	A	CPM2522
20	33.830	18.00	27.80	10.0	2.6	0.3	27.0	30.1	B	CPM2654
20	33.850	20.00	28.60	13.0	2.5	0.3	31.9	37.3	B	CPM2664
20	33.900	16.00	28.60	10.0	2.6	0.7	27.0	30.0	B	CPM2486
20	35.500	14.00	29.50	8.0	1.5	0.2	23.2	25.2	C	CPM2512
20	36.810	16.00	28.60	9.0	2.6	0.7	27.5	27.9	B	CPM2829
20	40.700	19.00	31.40	12.0	0.6	0.6	40.0	41.0	A	CPM2725
22	34.720	23.00	29.80	16.0	2.5	0.3	37.0	54.0	B	CPM2665
24	38.610	23.00	32.50	16.0	2.5	0.3	42.7	56.6	B	CPM2666
24	38.610	25.00	32.50	18.0	2.5	0.3	47.2	64.5	B	CPM2775
24	40.167	24.00	34.20	19.8	2.5	0.3	54.6	78.9	A	CPM2523
25	42.510	12.00	34.80	6.0	2.6	0.3	21.9	21.8	C	CPM2625
25	42.510	12.00	34.80	6.0	2.6	0.3	21.9	21.8	C	CPM2794
25	46.520	18.00	35.80	12.0	3.0	0.5	45.0	48.1	C	CPM2795
25	46.520	22.00	35.20	16.0	0.6	0.6	57.5	63.5	A	CPM2785
25	53.550	28.00	37.40	19.0	0.6	0.6	76.3	77.5	A	CPM2726
27	41.800	25.00	35.80	18.0	2.5	0.3	50.0	71.7	B	CPM2667
30	54.001	31.00	44.80	25.0	3.0	0.3	91.6	133.2	A	CPM2524
30	55.190	20.00	42.50	14.0	1.0	1.0	61.0	66.0	B	CPM2830
30	68.150	31.50	46.50	22.0	1.0	1.0	111.0	114.0	A	CPM2842
35	63.970	23.00	47.50	15.0	1.1	1.1	76.0	80.5	B	CPM2832
35	73.020	35.00	49.70	26.0	1.1	1.1	136.7	145.6	A	CPM2707
38	54.690	20.00	49.50	12.0	4.0	0.1	46.8	67.4	B	CPM2503
40	67.650	27.00	53.00	20.0	2.6	0.3	100.0	124.0	D	CPM2728
40	81.400	37.50	60.40	28.0	1.0	1.0	163.0	196.0	A	CPM2843
50	81.700	34.00	66.60	26.0	1.5	1.5	147.8	204.4	A	CPM2704
50	109.270	50.00	70.90	36.0	1.0	1.0	270.0	287.0	A	CPM2790
60	99.170	28.00	77.20	20.0	1.5	1.5	148.0	184.0	A	CPM2813
65	120.970	60.00	85.80	44.0	1.5	1.5	370.0	447.0	A	CPM2727
75	107.900	30.00	89.20	18.0	3.5	1.5	140.0	196.0	A	CPM2684
85	133.210	36.00	104.50	26.0	2.0	2.0	247.7	328.8	A	CPM2675
90	130.110	37.00	106.80	22.0	1.5	1.5	208.0	286.0	D	CPM2808
90	176.210	80.00	122.00	55.0	2.0	2.0	638.0	785.0	A	CPM2791
130	207.120	64.00	162.30	44.0	3.0	3.0	620.0	875.0	A	CPM2768
140	264.447	102.00	186.00	70.0	4.0	4.0	1190.0	1555.0	A	CPM2680
325	383.420	43.00	351.50	30.0	3.5	2.1	585.0	1355.0	A	CPM2787
375	444.820	48.00	406.50	36.0	3.5	2.1	805.0	1185.0	A	CPM2788
430	506.726	55.00	466.00	40.0	4.5	2.1	985.0	2410.0	A	CPM2786
485	575.130	66.00	527.50	48.0	5.5	3.0	1310.0	3270.0	A	CPM2789
20	36.810	16.00	28.60	9.0	2.6	0.7	27.5	27.9	A	CPM2165
25	42.510	16.00	34.80	9.0	2.5	0.5	31.2	34.4	B	CPM2404
25	46.520	18.00	35.80	12.0	3.0	0.5	45.0	48.1	B	CPM2193
25	46.520	18.00	35.80	12.0	3.0	0.5	45.0	48.1	A	CPM2678
25	46.520	18.00	35.80	12.0	3.0	0.5	45.0	48.1	C	CPM2767
30	49.600	19.00	40.30	10.0	3.5	0.5	40.2	44.9	B	CPM2405
30	50.740	14.00	40.15	7.5	3.0	0.3	32.6	32.9	C	CPM2529
50	72.000	31.00	62.00	24.0	4.0	0.3	112.0	172.5	A	CPM2645
55	88.810	25.00	70.80	18.0	1.5	1.5	120.2	151.5	A	CPM2679
60	86.740	26.00	72.00	17.0	1.1	1.1	106.5	146.9	A	CPM2626
65	93.090	26.00	78.50	17.0	1.1	1.1	112.1	161.0	A	CPM2646
30	55.190	20.00	42.50	14.0	1.0	1.0	60.8	66.3	A	CPM2677
100	139.650	37.00	116.40	22.0	1.5	1.5	212.6	314.0	A	CPM2653
85	121.440	34.00	100.00	20.0	1.1	1.1	173.5	241.5	A	CPM2661
90	130.110	37.00	106.80	22.0	1.5	1.5	208.0	286.0	A	CPM2628
70	100.280	30.00	81.50	18.0	1.1	1.1	132.1	178.4	A	CPM2627
75	107.900	30.00	89.20	18.0	1.1	1.1	140.0	196.0	A	CPM2578
35	63.970	23.00	47.50	15.0	1.1	1.1	76.0	80.5	A	CPM2676
