RHP 四联组精密角接触球轴承 BSB075110QUHP3 BSB075110SUHP3

电询库存情况

产品描述

RHP 四联组精密角接触球轴承 BSB075110QUHP3 BSB075110SUHP3



品牌 BSB075110QUHP3 主要下游平台 ebay
主要销售地区 欧洲,北美 轴承类型 开放型
是否跨境出口专供货源 否 系列 角接触轴承
轴承材质 高碳铬轴承钢（全淬透型)(GCr15) 适用行业 数控设备,机床制造,矿业,丝杠支撑,丝杠设备

包装信息

商品件重尺


型号 重量(g)
BSB075110QUHP3 2000


商品详情

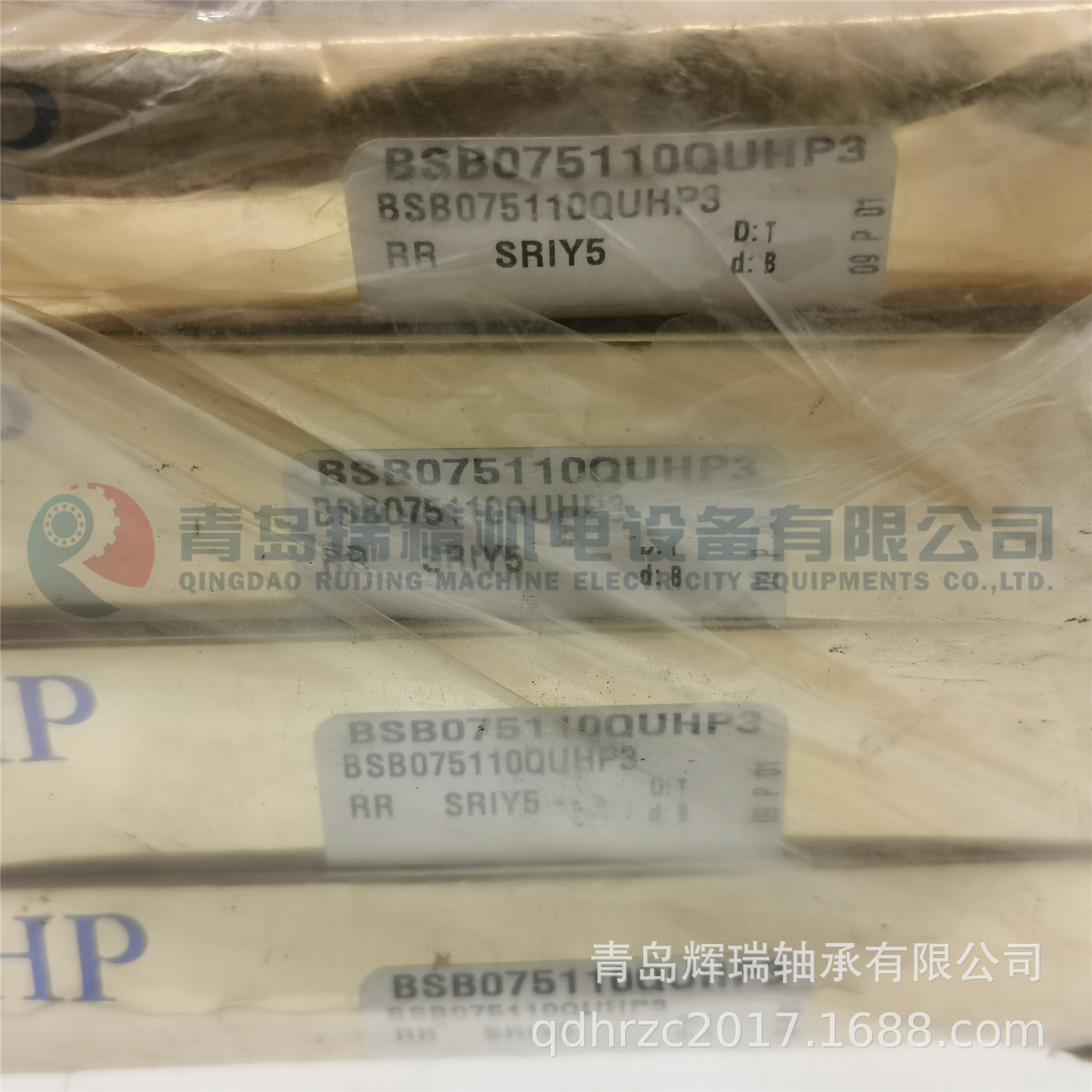

RHP BSB075110QUHP3.jpg

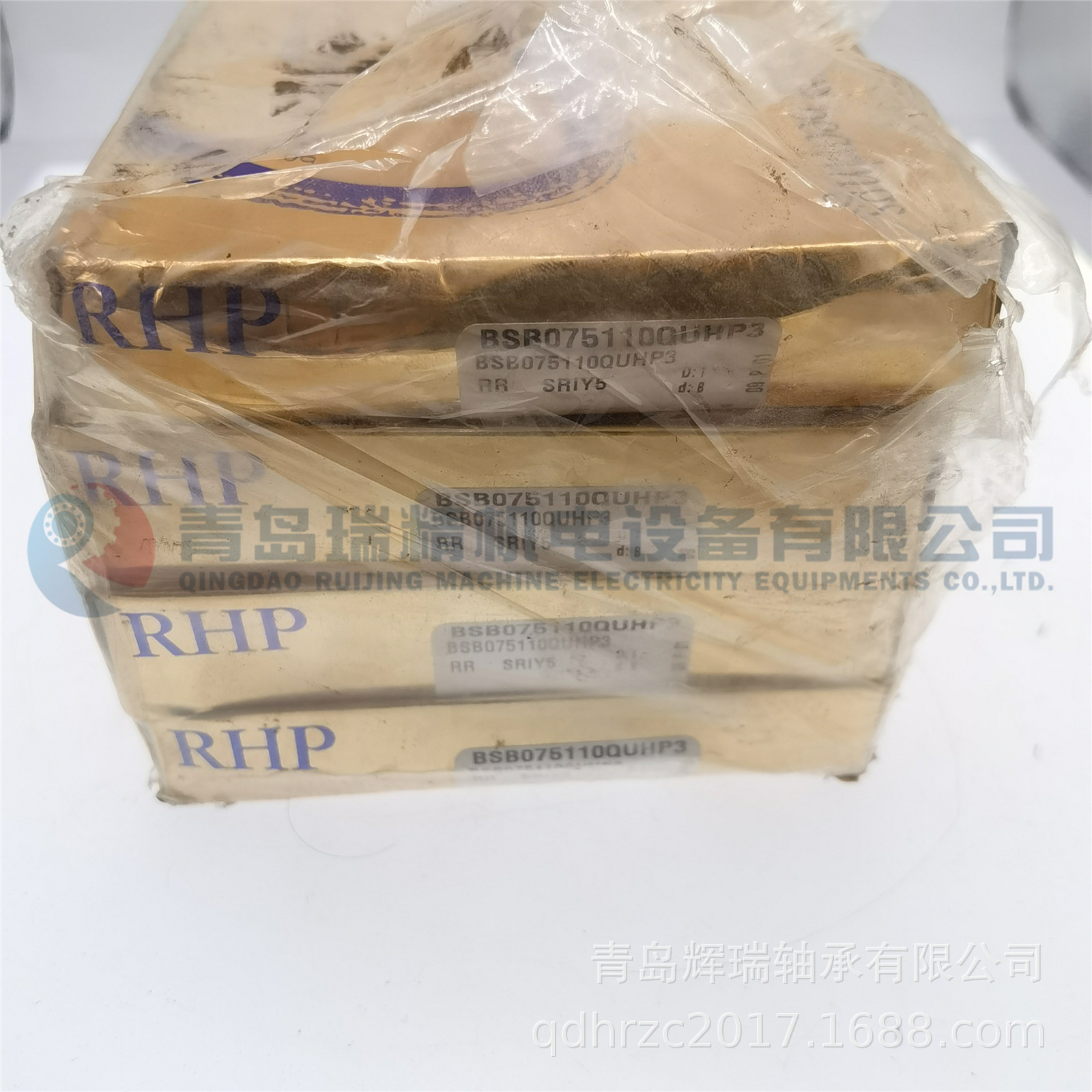

RHP BSB075110QUHP3 (2).jpg

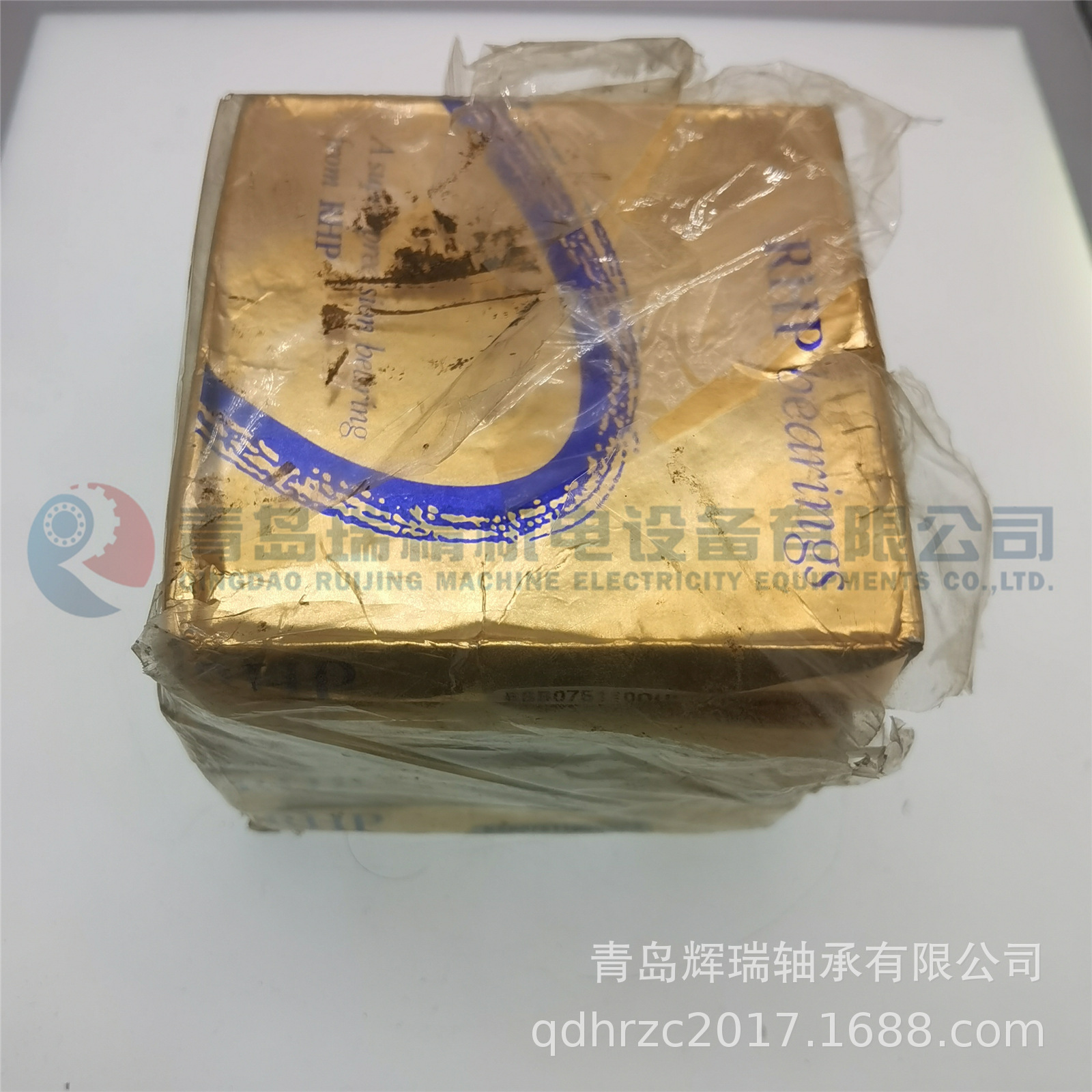

RHP BSB075110QUHP3 (3).jpg

RHP BSB075110QUHP3 (4).jpg

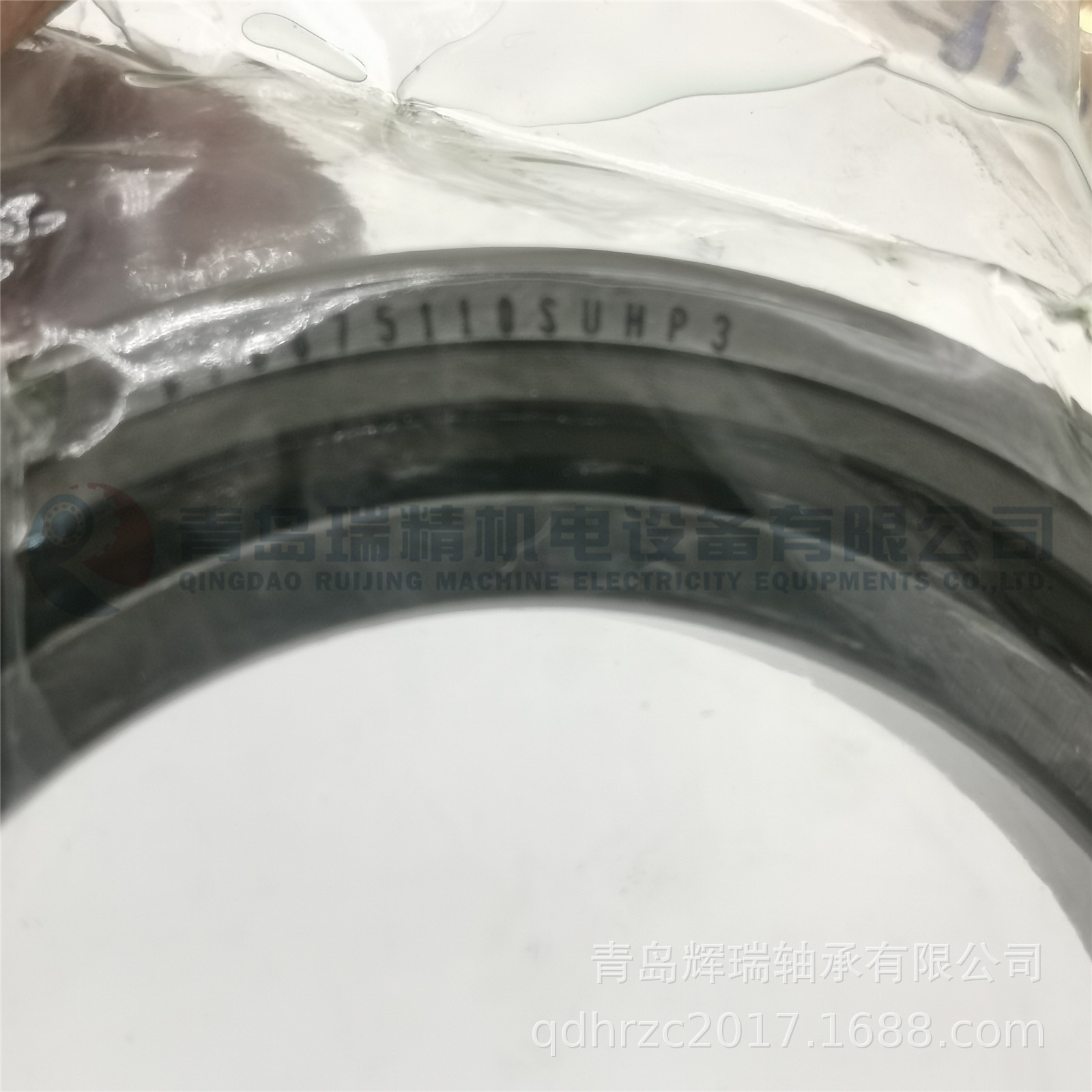

RHP BSB075110QUHP3 (5).jpg


Bearing Dimension Installation dimensions RATED LOAD Limiting Speeds preload Mass
d D B Rsmin a da Da Ra Ca Coa Grease Oil Fao ≈
mm min max max KN r/min KN Kg
7602020TVP 20 47 14 1 36 27.5 39.5 1 19.3 25 12000 17000 2.3 0.13
7602025TVP 25 52 15 1 41 32 45 1 22 30.5 11000 16000 2.5 0.16
7602030TVP 30 62 16 1 48 39.5 52.5 1 26 39 9000 13000 2.9 0.24
7602035TVP 35 72 17 1.1 55 46.5 60.5 1.4 30 50 8000 11000 3.3 0.34
7602040TVP 40 80 18 1.1 62 53.5 68.5 1.1 37.5 64 7000 9500 4.3 0.44
7602045TVP 45 85 19 1.1 66 57.5 73 1.1 38 68 6700 9000 4.5 0.5
7602050TVP 50 90 20 1.1 71 63 79 1.1 39 75 6300 8500 4.9 0.67
7602055TVP 55 100 21 1.5 78 69.5 86.5 1.5 40.5 81.5 6000 8000 5.6 0.75
7602060TVP 60 110 22 1.5 86 77 96 1.5 56 112 5000 6700 6.5 0.96
7602065TVP 65 120 23 1.5 92 84.5 103.5 1.5 57 122 4800 6000 7 1.32
7602070TVP 70 125 24 1.5 96 87.5 108.5 1.5 65.5 137 4500 6000 7 1.45
7602075TVP 75 130 25 1.5 101 93.5 114.5 1.5 67 150 4300 5600 7.6 1.45
7602080TVP 80 140 26 2 108 100 122 2 76.5 175 4000 5300 8.9 1.76
7602085TVP 85 150 28 2 116 107 131 2 86.5 196 3800 5000 10.5 2.19
7602090TVP 90 160 30 2 123 113.5 133.5 2 98 224 3600 4800 11 2.69
7603020TVP 20 52 15 1.1 39 30.5 43.5 1.1 24.5 32 11000 16000 2.9 0.17
7603025TVP 25 62 17 1.1 46 38 52 1.1 28.5 41.5 9000 13000 3.3 0.28
7603030TVP 30 72 19 1.1 53 45 61 1.1 34.5 55 8000 11000 4.3 0.41
7603035TVP 35 80 21 1.5 60 51 67 1.5 36.5 61 7000 9500 4.8 0.55
7603040TVP 40 90 23 1.5 68 56.5 75.7 1.5 50 83 6300 8500 5.6 0.76
7603045TVP 45 100 25 1.5 75 64 85.5 1.5 58.5 104 5600 7500 7 1.02
7603050TVP 50 110 27 2 83 72 94 2 69.5 127 5000 6700 7.6 1.33
7603055TVP 55 120 29 2 90 77 101 2 78 146 4800 6300 8.8 1.69
7603060TVP 60 130 31 2.1 98 82.5 107.5 2.1 88 166 4500 6000 10 2.12
7603065TVP 65 140 33 2.1 105 91.5 118.5 2.1 100 196 4000 5300 12 2.6
7603070TVP 70 160 37 2.1 120 105.5 135.5 2.1 125 255 3800 5000 12 3.16
7603075TVP 75 160 37 2.1 120 105.5 135.5 2.1 125 255 3600 4800 14.5 3.79
7603080TVP 80 170 39 2.1 128 111 143 2.1 137 285 3400 4500 16 4.5
7603085TVP 85 180 41 3 135 116 151 3 160 325 3200 4300 17.5 5.29
7603090TVP 90 190 43 3 143 122.5 157.5 3 163 345 3000 4000 18 6.17


Alternative codes:

Ball Screw Support Bearing Interchange
Bore O.D. Width TIMKEN BARDEN F/A/G NSK NTN RHP S/K/F SNFA
mm mm mm
12.00 32.00 10.00 MM12BS32 - 7602012-TVP - - - BSA 201 BS 212
15.00 35.00 11.00 MM15BS35 - 7602015-TVP   - - BSA 202 BS 215
17.00 47.00 15.00 MM17BS47 - - 17TAC47 C10 BST17X47-1B BSB 017047 - -
20.00 47.00 15.00 MM20BS47 BSB2047 BSB020047-T 20TAC47 C10 BST20X47-1B BSB 020047 BSD 2047 BS 20/47
20.00 47.00 15.88 MM9306WI2H L078H - 20TAC47X C11 BST20X47-2B BSB 078 - -
23.84 62.00 15.88 MM9308WI2H L093H   23TAC62 C11 BST23.8X62-1B BSB 093 - -
25.00 52.00 15.00 MM25BS52 - 7602025-TVP - - BSB 2025 BSA 205 BS 225
25.00 62.00 15.00 MM25BS62 BSB2562 BSB025062-T 25TAC62 C10 BST25X62-1B BSB 025062 BSD 2562 BS 25/62
30.00 62.00 15.00 MM30BS62 BSB3062 BSB030062-T 30TAC62 C10 BST30X62-1B BSB 030062 BSD 3062 BS 30/62
30.00 72.00 15.00 MM30BS72 - - - - BSB 030072 - -
35.00 72.00 15.00 MM35BS72 BSB3572 BSB030572-T 35TAC72 C10 BST35X72-1B BSB 035072 BSD 3572 BS 35/72
35.00 100.00 20.00 MM35BS100 - - - - BSB 035100 - -
38.10 72.00 15.88 MM9310WI2H L150H   38TAC72 C11 BST38.1X72-1B BSB 150 - -
40.00 72.00 15.00 MM40BS72 BSB4072 BSB040072-T 40TAC72 C10 BST40X72-1B BSB 040072 BSD 4072 BS 40/72
40.00 90.00 15.00 MM40BS90 - - - - BSB 040090 - -
40.00 90.00 20.00 MM40BS90-20 - BSB040090-T 40TAC90 C10 BST40X90-1B - BSD 4090 BS 40/90
40.00 90.00 23.00 MM40BS90-23 - 7603040-TVP - - - BSA 308 BS 340
40.00 100.00 20.00 MM40BS100 - -   - BSB 040100 - -
44.48 76.20 15.88 MM9311WI3H L175H   44TAC76 C11 BST44.5X76.2-1B BSB 175 - -
45.00 75.00 15.00 MM45BS75 - BSB045075-T 45TAC75 C10 BST45X75-1B BSB 045075 BSD 4575 -
45.00 100.00 20.00 MM45BS100 - BSB045100-T 45TAC100 C10 BST45X100-1B BSB 045100 BSD 45100 BS 45/100
50.00 90.00 15.00 MM50BS90 - - - - BSB 050090 - -
50.00 100.00 20.00 MM50BS100 - BSB050100-T 50TAC100 C10 BST50X100-1B BSB 050100 BSD 50100 BS 50/100
55.00 90.00 15.00 MM55BS90 - BSB055090-T 55TAC90 C10 - BSB 055090 - -
55.00 120.00 20.00 MM55BS120 - BSB055120-T 55TAC120 C10 BST55X120-1B BSB 055120 BSD 55120 BS55/120
57.15 90.00 15.88 MM9313WI5H L225H - 57TAC90 C11 - BSB 225 - -
60.00 120.00 20.00 MM60BS120 - BSB060120-T 60TAC120 C10 BST60X120-1B BSB 060120 BSD 60120 BS 60/120
75.00 110.00 15.00 MM75BS110 - BSB075110-T - - BSB 075110 - -
76.20 110.00 15.88 MM9316WI3H L300H - 76TAC110 C11 - BSB 300 - -
100.00 150.00 20.00 MM100BS150 -   - - BSB 100150 - -
101.60 145.00 22.23 MM9321WI3 -   101TAC145 C11 - BSB 400 - -
