NSK TORR 单向滚针轴承 FCL-10K 10mm X 14mm X 12mm尺寸_参数_报价_价格

RTTING SHAFT DIA(MM)	DESIGNATIONS	CORRESPONDING DISIGNATIONS		BOUNDARY DIMESIONS(MM)				LIMTING SPEEDS(R/MIN)		WEIGHT
		CORRESPONDING DISIGNATIONS		BOUNDARY DIMESIONS(MM)				LIMTING SPEEDS(R/MIN)		WEIGHT
				FW	D	C	TORGUE	N N A		[G]
HF SERIES
	HF0406	HF0406	FC-4	4	8	6	0.34	34000	14000	2
	HF0608	HF0608		6	10	8				2
6	HF0612	HF0612	FC-6	6	10	12	1.76	23000	13000	3
8	HF0812	HF0812	-	8	12	12	3.15	17000	12000	3.5
		HF081412	FC-8	8	14	12	4.02			4
10	HF1012	HF1012	FCL-10K	10	14	12	4.41	14000	11000	4
			FC-10	10	16	12	5.3			11
12	HF1216	HF1216	FC-12	12	18	16	12.2	11000	8000	11.6
14	HF1416	HF1416	FC-14K	14	20	16	17.3	9500	8000	13
16	HF1616	HF1616	FC-16	16	22	16	20.5	8500	7500	14
18	HF1816	HF1816	-	18	24	16	24.1	7500	7500	15.5
20	HF2016	HF2016	FC-20	20	26	16	28.5	7000	6500	17
25	HF2520	HF2520	FC-25	25	32	20	66	5500	5500	30.9
30	HF3020	HF3020	FC-30	30	37	20	90	4500	4500	36
35	HF3520	HF3520	FC-35	35	40	20	121	3900	3900	40

8	HFL0822	HFL0822	FCBL-8K	8	12	22	3.15	17000	12000	6.3
			FCB-8	8	14	20	4.02			11
10	HFL1022	HFL1022	-	10	14	22	5.3	14000	11000	7.4
			FCB-10	10	16	20				12
12	HFL1226	HFL1226	FCB-12	12	18	26	12.2	11000	8000	18
14	HFL1426	HFL1426	-	14	20	26	17.3	9500	8000	20.3
16	HFL1626	HFL1626	FCB-16	16	22	26	20.5	8500	7500	22
18	HFL1826	HFL1826	-	18	24	26	24.1	7500	7500	24.4
20	HFL2026	HFL2026	FCB-20	20	26	26	28.5	7000	6500
25	HFL2530	HFL2530	FCB-25	25	32	30	66	5500	5500	44
30	HFL3030	HFL3030	FCB-30	30	37	30	90	4500	4500	51
35	HFL3530	HFL3530	-	35	42	30	121	3900	3900	58

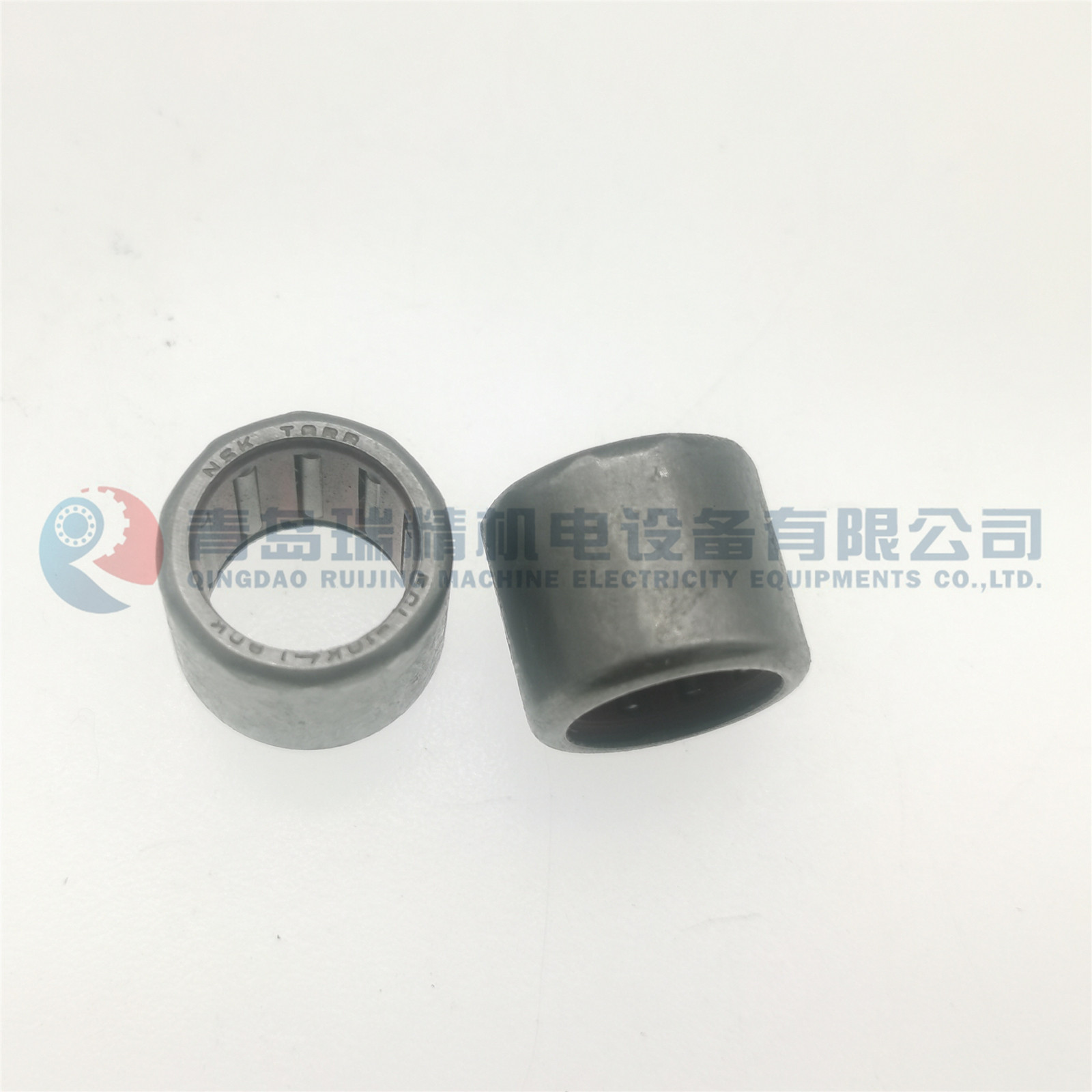

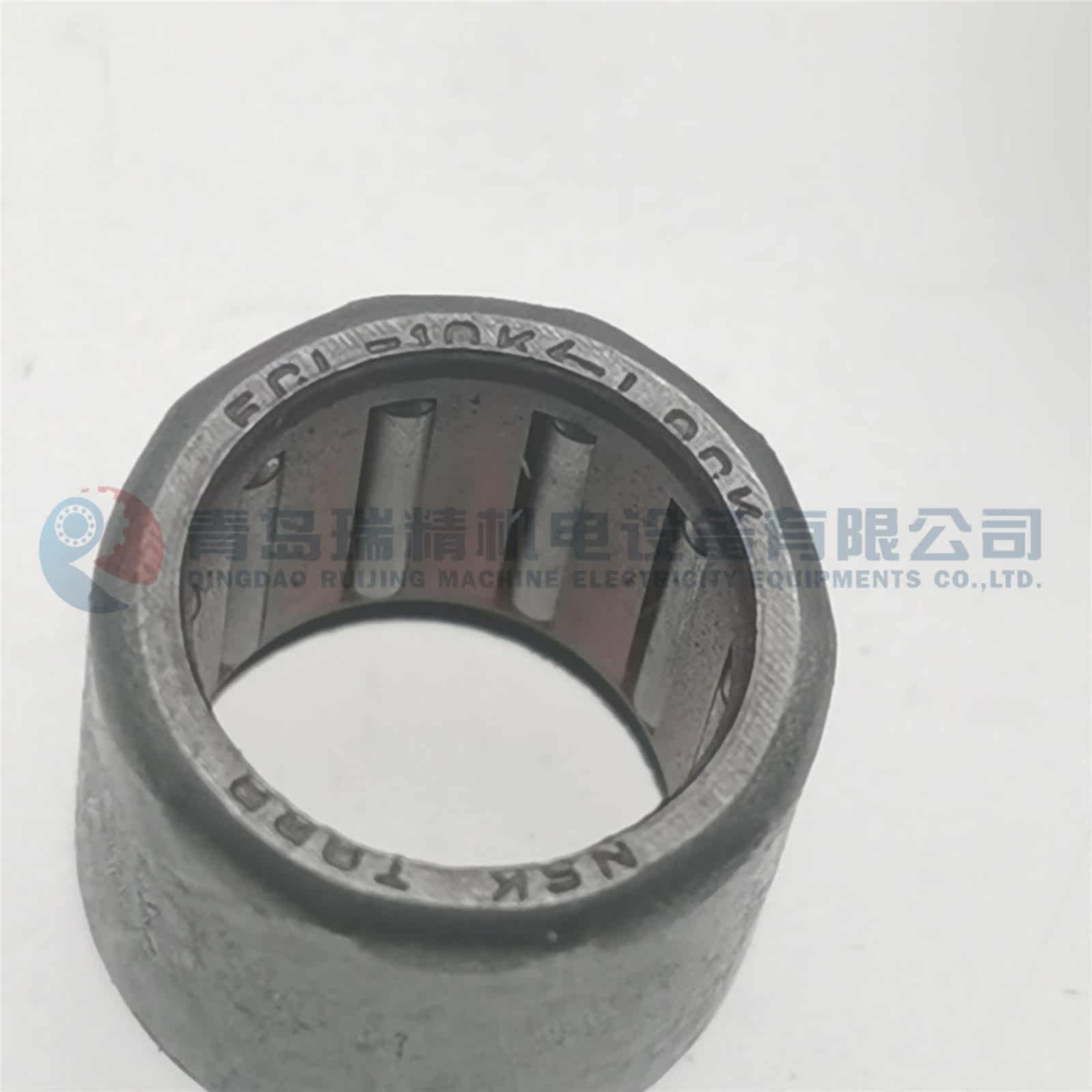

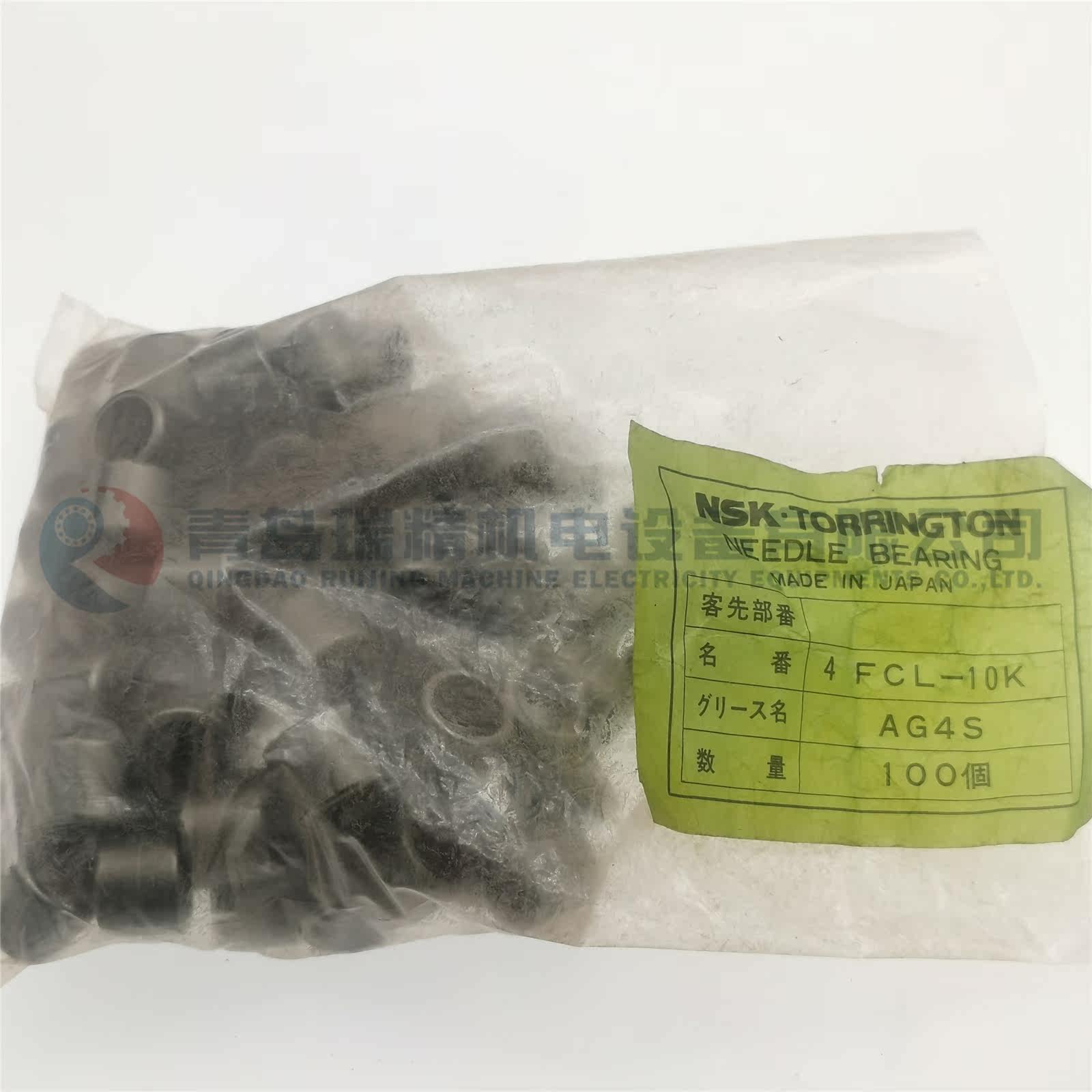

轴承型号展示
