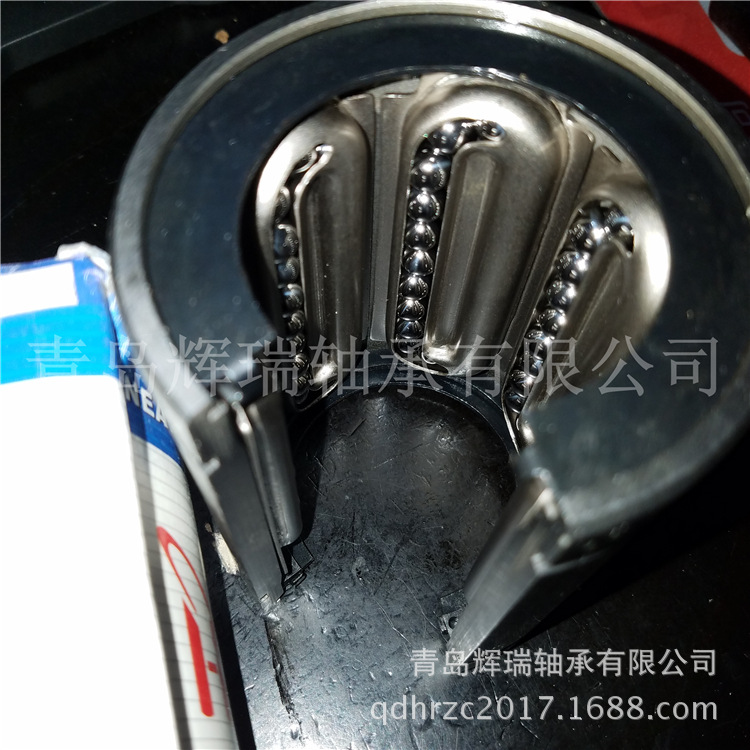

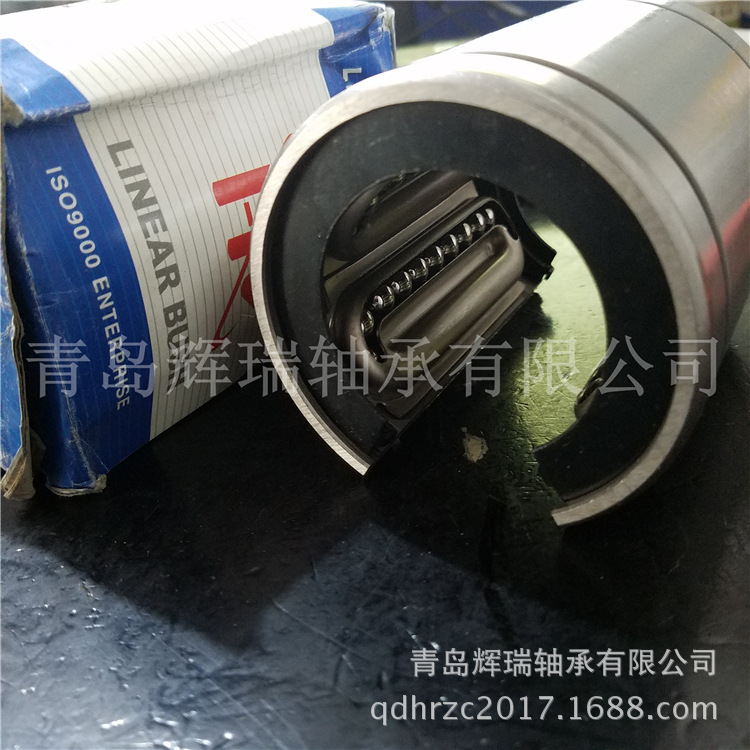

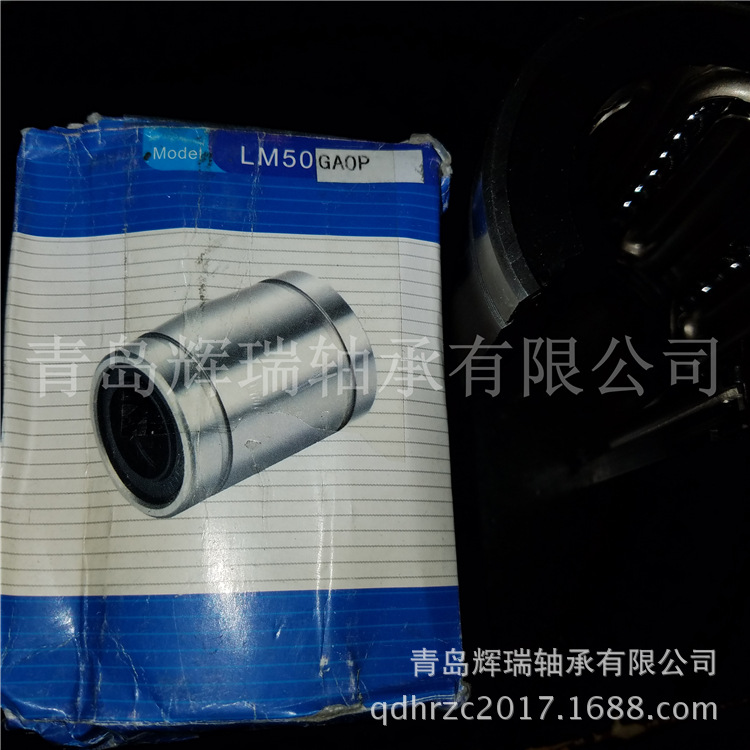

青岛辉瑞轴承有限公司供应HL钢保直线轴承LM50GAOP内径50mm外径80mm厚度100mm青岛辉瑞轴承有限公司供应HL钢保直线轴承LM50GAOP内径50mm外径80mm厚度100mm青岛辉瑞轴承有限公司供应HL钢保直线轴承LM50GAOP内径50mm外径80mm厚度100mm青岛辉瑞轴承有限公司供应HL钢保直线轴承LM50GAOP内径50mm外径80mm厚度100mm
| MODEL NO. | NUMBER OF BALL | MAIN DIMENSIONS | ECCEN-TRICITY | BASIC LOAD RATING | ||||||||||||
| INSCRIBED CIRCLE | OUTER DIAMETER | LENGTH | OUT LOCKING GROOVE | W | hl | θ | c(kgf) | Co(kgf) | ||||||||
| dr | TOLE-RANCE | D | TOLE-RANCE | L | TOLE-RANCE | B | D1 | |||||||||
| LM10GAOP | 3 | 10 | 19 | 29 | 22 | 18 | 1.3 | 6.8 | 80° | 0.012 | 38 | 56 | ||||
| LM12GAOP | 3 | 12 | 21 | 30 | 23 | a20 | 1.3 | 8 | 80° | 42 | 61 | |||||
| LM13GAOP | 3 | 13 | 23 | 32 | 23 | 22 | 1.3 | 9 | 80° | 52 | 79 | |||||
| LM16GAOP | 4 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 11 | 80° | 79 | 120 | |||||
| LM20GAOP | 4 | 20 | 32 | 42 | 30.5 | 30.5 | 1.6 | 11 | 60° | 0.015 | 88 | 140 | ||||
| LM25GAOP | 5 | 25 | 40 | 59 | 41 | 38 | 1.85 | 12.5 | 60° | 100 | 160 | |||||
| LM30GAOP | 5 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 15 | 60° | 160 | 280 | |||||
| LM35GAOP | 5 | 35 | 52 | 70 | 49.5 | 49 | 2.1 | 17.5 | 60° | 0.020 | 170 | 320 | ||||
| LM40GAOP | 5 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 20 | 60° | 220 | 410 | |||||
| LM50GAOP | 5 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 25 | 60° | 390 | 810 | |||||
| LM60GAOP | 5 | 60 | 90 | 110 | 85 | 86.5 | 3.15 | 30 | 60° | 0.025 | 480 | 1020 | ||||
