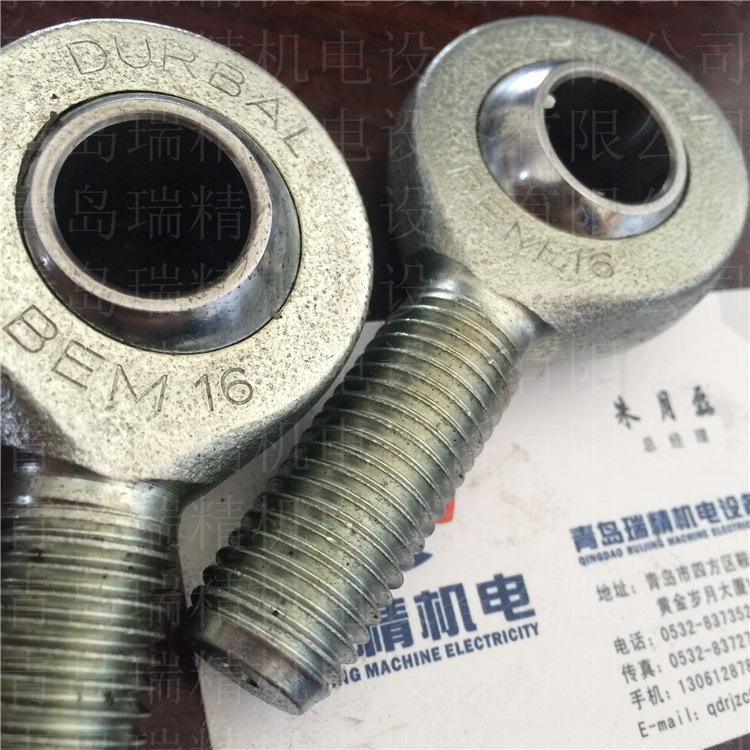

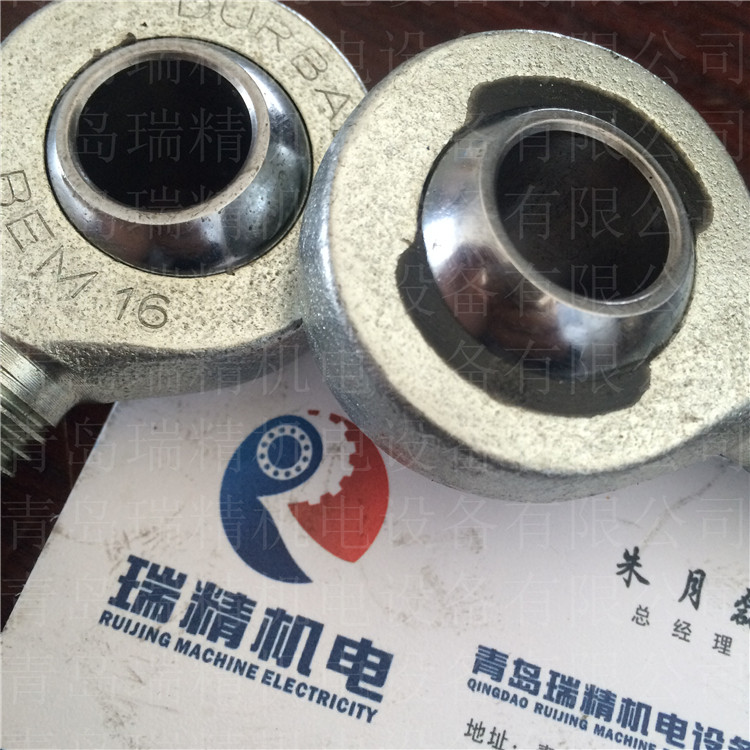

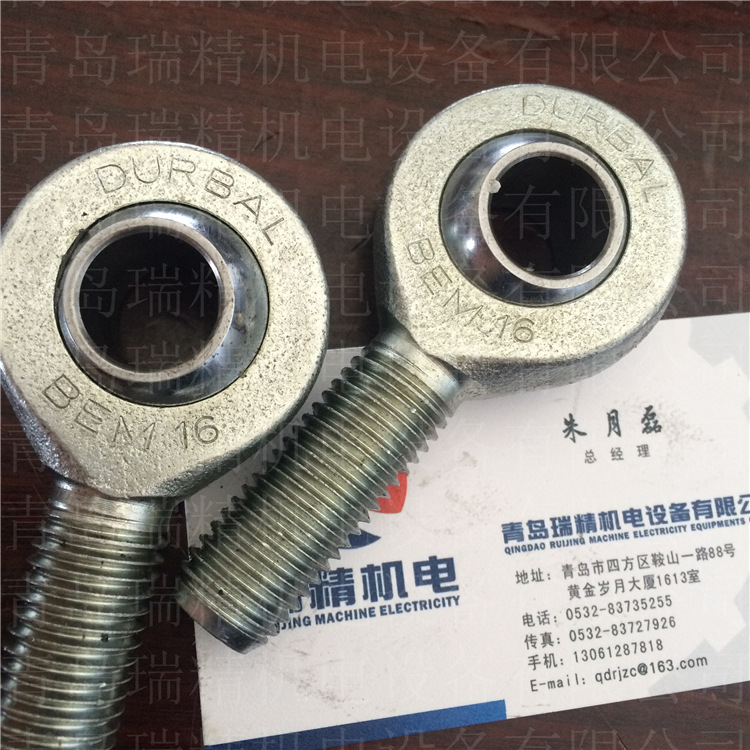

德国DURBAL杆端关节轴承BEM16右旋外螺纹M16

德国DURBAL杆端关节轴承BEM16右旋外螺纹M16轴承尺寸|轴承规格参数|轴承报价

内径：mm
外径：mm
宽度：mm
型号：德国DURBAL杆端关节轴承BEM16右旋外螺纹M16

类型：德国DURBAL杆端关节轴承BEM16右旋外螺纹M16

品牌：德国DURBAL杆端关节轴承BEM16右旋外螺纹M16

备注：德国DURBAL杆端关节轴承BEM16右旋外螺纹M16









DURBAL之EF

型号	尺 寸 [mm]
	d1	d2	d3	d6	d8	b1	b3	h	I	I3	I4	I5	SW	α1[°]	α2[°]
DURBAL_EF06	6	10	M6	20	10	6	4	30	12	11			9	13	6.5
DURBAL_EF08	8	13	M8	23	13	8	5	36	16	12			11	15	8
DURBAL_EF10	10	16	M10	28	16	9	6	43	20	13			14	12	6
DURBAL_EF10SO	10	16	M10x1.25	28	16	9	6	43	20	13			14	12	6
DURBAL_EF12	12	19	M12	32	18	10	7	50	22	15			17	10.5	5
DURBAL_EF12SO	12	19	M12x1.25	32	18	10	7	50	22	15			17	10.5	5
DURBAL_EF15	15	22	M14	38	22	12	9	61	25	18			19	8.5	4.5
DURBAL_EF17	17	25	M16	44	25	14	10	67	28	20			22	10	5.5
DURBAL_EF20	20	28	M20x1.5	51	29	16	12	77	33	23			24	9	4.5
DURBAL_EF25	25	35	M24x2	62	35.5	20	16	94	42	30			30	7.5	3.5
DURBAL_EF30	30	42	M30x2	70	40.7	22	18	110	51	32			36	6	3
DURBAL_EF35	35	50	M36x3	82	47	25	20	125		38	36	61	41	6.5	3.5
DURBAL_EF35SO	35	50	M36x2	82	47	25	20	130		38	41	66	41	6.5	3.5
DURBAL_EF40	40	58	M42x3	92	53	28	22	145		42	42	71	50	7	3.5
DURBAL_EF40SO	40	52	M39x3	92	53	28	22	142		42	39	66	46	7	3.5
DURBAL_EF45	45	67	M45x3	102	60	32	25	165		50	45	76	55	7.5	4
DURBAL_EF45SO	45	58	M42x3	102	60	32	25	145		50	42	66	50	7.5	4
DURBAL_EF50	50	70	M52x3	112	66	35	28	195		60	52	89	60	6.5	3
DURBAL_EF50SO	50	62	M45x3	112	66	35	28	160		60	45	69	55	6.5	3
DURBAL_EF60	60	82	M60x4	135	80	44	36	225		70	60	103	70	6.5	3.5
DURBAL_EF60SO	60	71	M52x3	135	80	44	36	175		70	52	71	60	6.5	3.5

DURBAL之EM

型号	尺 寸 [mm]
	d1	d3	d6	d8	b1	b3	h	I	I3	α1[°]	α2[°]
DURBAL_EM06	6	M6	20	10	6	4	36	22	11	13	6.5
DURBAL_EM08	8	M8	23	12	8	5	42	25	12	15	8
DURBAL_EM10	10	M10	28	16	9	6	48	29	15	12	6
DURBAL_EM12	12	M12	32	18	10	7	54	33	15	10.5	5
DURBAL_EM15	15	M14	38	22	12	9	63	36	18	8.5	4.5
DURBAL_EM17	17	M16	44	25	14	10	69	40	23	10	5.5
DURBAL_EM20	20	M20x1.5	51	29	16	12	78	47	25	9	4.5
DURBAL_EM25	25	M24x2	62	35.5	20	16	94	57	32	7.5	3.5
DURBAL_EM30	30	M30x2	70	40.7	22	18	110	66	35	6	3
DURBAL_EM35	35	M36x3	82	47	25	20	140	92	38	6.5	3.5
DURBAL_EM40	40	M42x3	92	53	28	22	145	94	42	7	3.5
DURBAL_EM40SO	40	M39x3	92	53	28	22	150	99	42	7	3.5
DURBAL_EM45	45	M45x3	102	60	32	25	165	100	50	7.5	4
DURBAL_EM45SO	45	M42x3	102	60	32	25	163	98	50	7.5	4
DURBAL_EM50	50	M52x3	112	66	35	28	195	120	60	6.5	3
DURBAL_EM50SO	50	M45x3	112	66	35	28	185	110	60	6.5	3
DURBAL_EM60	60	M60x4	135	80	44	36	225	140	70	6.5	3.5
DURBAL_EM60SO	60	M52x3	135	80	44	36	210	125	70	6.5	3.5

DURBAL之PF

型号	尺 寸 [mm]
	d1	d2	d3	d4	d6	b1	b3	h	I	I3	r	SW	α[°]
DURBAL_PF10	10	15	M8	13	30	13	9	38	17	14.5	10	13	7
DURBAL_PF15	15	19	M12	17.5	40	16.5	12	51	24	20	15	17	7
DURBAL_PF20	20	22	M16	24	48	20.5	15	65	32	22	20	19	6.5

DURBAL之PM

型号	尺 寸 [mm]
	d1	d3	d4	d6	d7	b1	b3	I1	I2	I3	h1	h2	u	z	α[°]
DURBAL_PM05	5	M8x1	7.5	19	12	12	8		39.5	13		57	1.5	2.5	7
DURBAL_PM05-01	5	M8x1	7.5	19	12	12	8	16		13	33.5		1.5	2.5	7
DURBAL_PM06	6	M10x1	8.5	24	14	14	10		42.5	17		64	1.5	2.5	10.5
DURBAL_PM06-01	6	M10x1	8.5	24	14	14	10	16		17	40.5		1.5	2.5	10.5
DURBAL_PM08	8	M12x1.5	11	30	17	15	10		46.5	20		72	2	2.5	8.5
DURBAL_PM08-01	8	M12x1.5	11	30	17	15	10	23		20	48.5		2	2.5	8.5
DURBAL_PM10	10	M14x1.5	13.5	36	19	20	14		49.5	28		82	2.5	2.5	9.5
DURBAL_PM10-01	10	M14x1.5	13.5	36	19	20	14	26		28	58.5		2.5	2.5	9.5
DURBAL_PM12	12	M16x1.5	15	40	21	20	14		53.5	31		90	3	2.5	7.5
DURBAL_PM12-01	12	M16x1.5	15	40	21	20	14	29		31	65.5		3	2.5	7.5
DURBAL_PM15	15	M20x1.5	18.5	42	26	20	14		62.5	30		100	3	2.5	6.5
DURBAL_PM15-01	15	M20x1.5	18.5	42	26	20	14	36		30	73.5		3	2.5	6.5
DURBAL_PM17	17	M20x1.5	21	48	26	22	16		62.5	36		105	3.5	2.5	7
DURBAL_PM17-01	17	M20x1.5	21	48	26	22	16	36		36	78.5		3.5	2.5	7
DURBAL_PM20	20	M24x1.5	24	56	30	24	18		68.5	41		117	3.5	3	5.5
DURBAL_PM20-01	20	M24x1.5	24	56	30	24	18	41		41	89.5		3.5	3	5.5
