轴承型号 TYPE |
外形尺寸 DIMENSION |
法兰盘轴承尺寸 FLANGE DIMENSION |
径向基本额定动负荷 | 径向基本额定静负荷 | |||||||||
| 法兰盘 | 开式 | 防尘盖 | 内径 | 外径 | 厚度 | 开式 | 闭式 | 开式 | 闭式 | 倒角 | |||
| Flange | Open | Shield/ZZ | d | D | Width |
外径 Df |
外径 Df1 |
厚度 Bf |
厚度 Bf1 |
rsmin | Cr(kN) | Cor(kN) | |
| Bore Diameter | Outer Diameter | open | zz | open | zz | open | zz | ||||||
| R1-4 | 1.984 | 6.35 | 2.380 | 3.571 | 7.518 | 7.518 | 0.584 | 0.787 | 0.10 | ||||

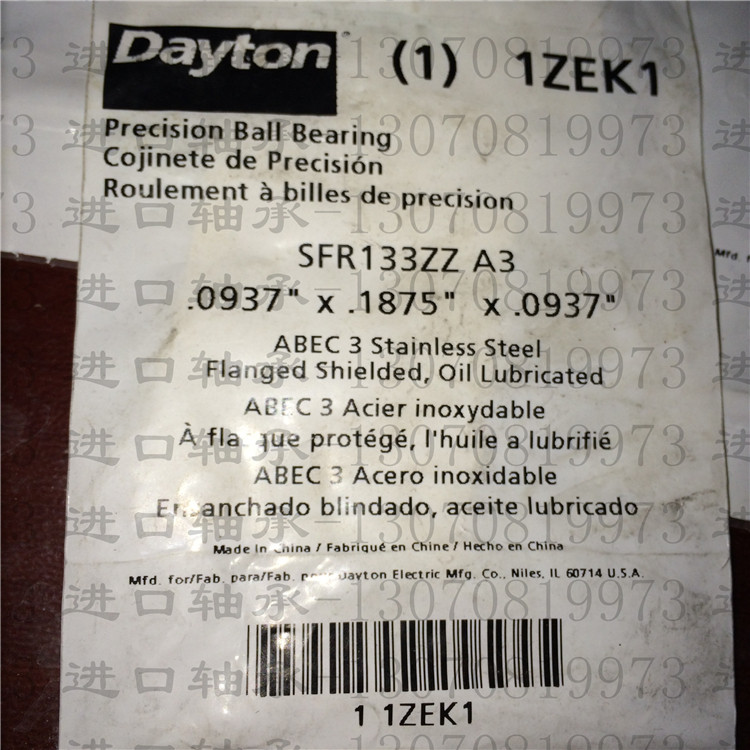

| F | R133 | SR133ZZ | 2.380 | 4.762 | 1.588 | 2.380 | 5.944 | 5.944 | 0.457 | 0.787 | 0.1 | 0.1862 | 0.0588 |
| F | R1-5 | SR1-5ZZ | 2.380 | 7.938 | 2.779 | 3.571 | 9.119 | 9.119 | 0.584 | 0.787 | 0.15 | 0.5488 | 0.1764 |
| F | R144 | SR144ZZ | 3.175 | 6.35 | 2.380 | 2.779 | 7.518 | 7.518 | 0.584 | 0.787 | 0.1 | 0.3136 | 0.1078 |
| F | R2-5 | SR2-5ZZ | 3.175 | 7.938 | 2.779 | 3.571 | 9.119 | 9.119 | 0.584 | 0.787 | 0.1 | 0.5586 | 0.1764 |
| F | R2-6 | SR2-6ZZ | 3.175 | 9.525 | 2.779 | 3.571 | 10.719 | 10.719 | 0.584 | 0.787 | 0.15 | 0.637 | 0.2254 |
| F | R2 | SR2ZZ | 3.175 | 9.525 | 3.967 | 3.967 | 11.176 | 11.176 | 0.762 | 0.762 | 0.3 | 0.6272 | 0.2156 |
| - | R2A | SR2AZZ | 3.175 | 12.7 | 4.366 | 4.366 | - | - | - | - | 0.3 | 0.637 | 0.2254 |
| F | R155 | SR155ZZ | 3.967 | 7.938 | 2.779 | 3.175 | 9.119 | 9.119 | 0.584 | 0.914 | 0.1 | 0.3626 | 0.147 |
| F | R156 | SR156ZZ | 4.762 | 7.938 | 2.779 | 3.175 | 9.119 | 9.119 | 0.584 | 0.914 | 0.1 | 0.3626 | 0.147 |
| F | R166 | SR166ZZ | 4.762 | 9.525 | 3.175 | 3.175 | 10.719 | 10.719 | 0.584 | 0.787 | 0.1 | 0.7056 | 0.2744 |
| - | R3 | SR3ZZ | 4.762 | 12.7 | 3.967 | 4.978 | 14.351 | 14.351 | 1.067 | 1.067 | 0.3 | 1.3034 | 0.49 |
| - | R3A | SR3AZZ | 4.762 | 15.875 | 4.978 | 4.978 | - | - | - | - | 0.3 | 1.4798 | 0.6174 |
| F | R168 | SR168ZZ | 6.350 | 9.525 | 3.175 | 3.175 | 10.719 | 10.719 | 0.584 | 0.914 | 0.1 | 0.3724 | 0.1764 |
| F | R188 | SR188ZZ | 6.350 | 12.7 | 3.175 | 4.762 | 13.894 | 13.894 | 0.584 | 1.143 | 0.15 | 1.078 | 0.441 |
| F | R4 | SR4ZZ | 6.350 | 15.875 | 4.978 | 4.978 | 17.526 | 17.526 | 1.067 | 1.067 | 0.3 | 1.4798 | 0.6174 |
| - | R4A | SR4AZZ | 6.350 | 19.05 | 5.558 | 7.142 | - | - | - | - | 0.4 | 2.3324 | 0.8918 |
| F | R1810 | SR1810ZZ | 7.938 | 12.7 | 3.967 | 3.967 | 13.894 | 13.894 | 0.787 | 0.787 | 0.15 | 0.539 | 0.2744 |
| F | R6 | SR6ZZ | 9.525 | 22.225 | 5.558 | 7.142 | 24.613 | 24.613 | 1.575 | 1.575 | 0.4 | 3.332 | 1.421 |
| - | R1038 | SR1038ZZ | 9.525 | 15.875 | - | 3.969 | - | - | - | - | 0.15 | 0.8526 | 0.4312 |
| F | R8 | SR8ZZ | 12.700 | 28.575 | 6.350 | 7.938 | 31.12 | 31.12 | 1.575 | 1.575 | 0.4 | 5.1058 | 2.4108 |
| - | R10 | SR10ZZ | 15.875 | 34.925 | 7.144 | 8.731 | - | - | - | - | 0.8 | 5.9878 | 3.283 |
